Coolwell Raspberry Pi GSM HAT GSM/GPRS/GNSS/Bluetooth Module for Raspberry Pi 4B+ 4B 3B+ 3B 2B+ Zero W WH Based on SIM868 Supports SMS, Phone Call, Email, etc
- The GSM module for Raspberry Pi with standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- The Raspbery Pi bluetooth module also supports GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
- The Raspberry Pi GSM module comes with bluetooth 3.0, supports data transferring through Bluetooth
- This SIM868 GSM Raspberry Pi expansion board is handy,low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth.
- Comes with development resources and manual (examples for Raspberry Pi/Ardui/STM32), feel free to contact us if you need our help any time, we will always be ready.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Overview

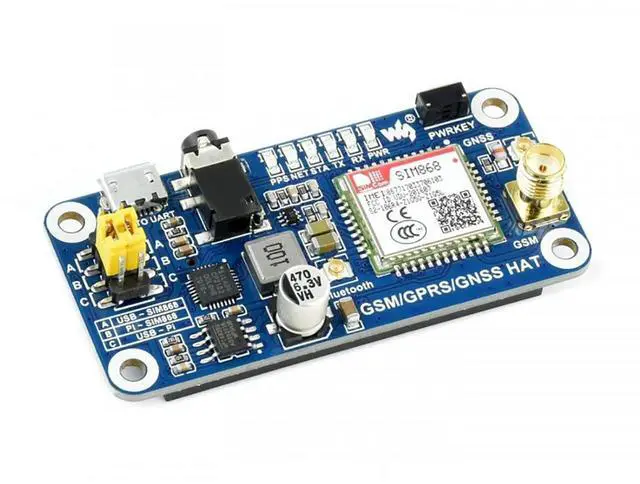

This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth.
It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
Bluetooth 3.0, supports data transferring through Bluetooth
Onboard USB TO UART converter CP2102 for UART debugging
6x LEDs for indicating the module working status

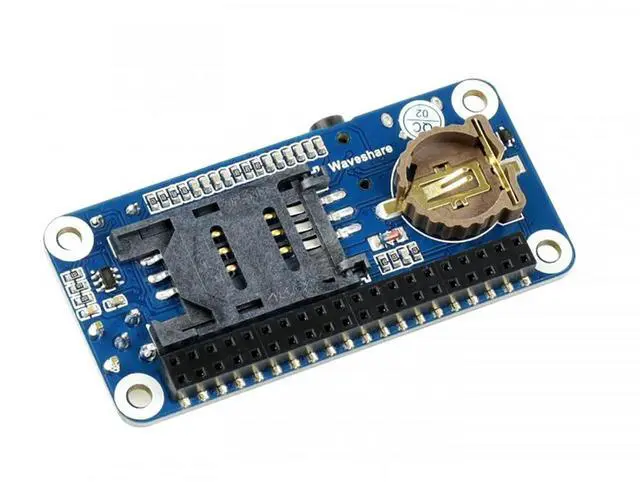

SIM card slot for 1.8V /3V SIM card
RTC with backup battery holder
Baudrate auto detection (1200bps ~115200bps)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99
Comes with development resources and manual (examples for Raspberry Pi/Ardui/STM32)
Package include

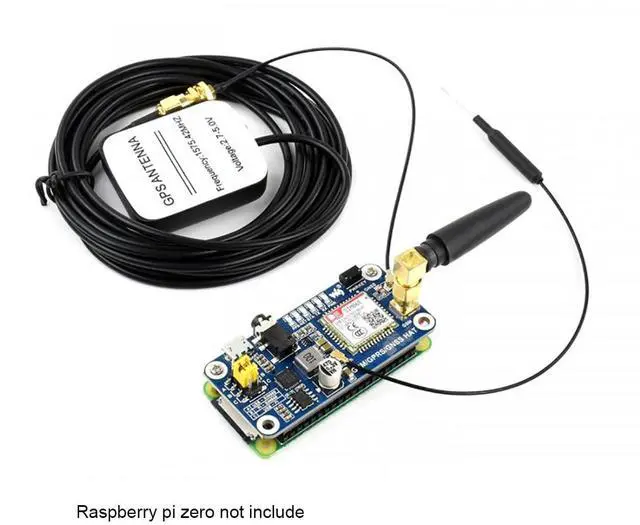

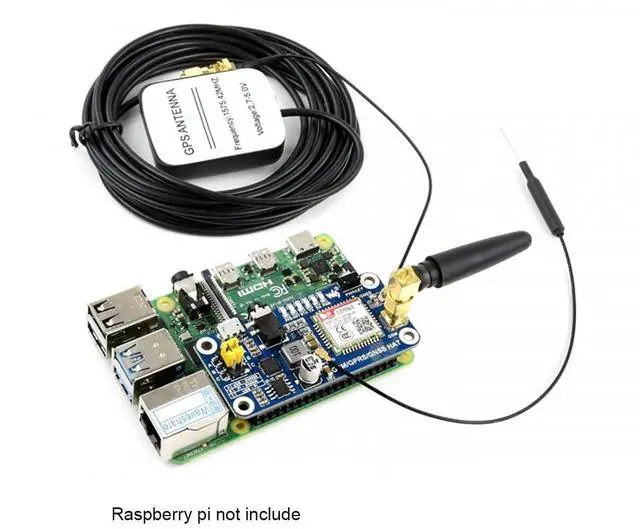

1. GSM/GPRS/GNSS HAT x1
2. GSM Antenna x1
3. GPS External Antenna (B) x1
4. Bluetooth Antenna x1
5. USB type A plug to micro plug cable x1
6. RPi screws pack (2pcs) x1
This is a handy, low power Raspberry Pi HAT which features multi communication functionalities: GSM, GPRS, GNSS and Bluetooth.
It allows your Pi to easily make a telephone call, send messages, connect to wireless Internet, global position, transfer data via Bluetooth, and so on.
Features
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
Supports SMS, phone call, GPRS, DTMF, HTTP, FTP, MMS, email, etc.
Support GPS, COMPASS, Glonass, LBS base station positioning, omni-positioning
Bluetooth 3.0, supports data transferring through Bluetooth
Onboard USB TO UART converter CP2102 for UART debugging
6x LEDs for indicating the module working status
SIM card slot for 1.8V /3V SIM card
RTC with backup battery holder
Baudrate auto detection (1200bps ~115200bps)
Control via AT commands (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
Supports SIM application toolkit: GSM 11.14 Release 99
Comes with development resources and manual (examples for Raspberry Pi/Ardui/STM32)
Package include
1. GSM/GPRS/GNSS HAT x1
2. GSM Antenna x1
3. GPS External Antenna (B) x1
4. Bluetooth Antenna x1
5. USB type A plug to micro plug cable x1
6. RPi screws pack (2pcs) x1
