RYXN 1080P HDMI KVM USB IP Extender Over Cat5e/6 Transmits Up to 656ft/200m, with 2 USB Ports Supports Mouse and Keyboard Remote Control, Both Ends Feature Audio Extractor Function
- 1080P@60Hz, 656ft/200mHDMI KVM IP Extender can transmit 1080P HDMI1.3 signals and USB1.1 signals from a computer host or laptop over a single CAT6 cable up to 200 meters/656 feet, CAT5e cable up to 150 meters, It is suitable for remotely controlling computers, NVR, Monitors, and other devices.
- HDMI Local loopout FunctionThis HDMI KVM Extender provides HDMI local loopout function at the transmitter (TX). That is, an HDMI port is left at the transmitter end, which can be directly connected to the display to achieve local video playback in real time. See an image of your transmitted remote HDMI input signal in real time. The resolution must be consistent with that of the receiver. This function is mainly used for home security monitoring, remote video control and other application scenarios.
- Two Usage Methods1. Supports single cable one-to-one mode. Typically used for transmitting USB signals over a cable to facilitate remote control of a mouse and keyboard. 2. Also
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1080P HDMI KVM IP Extender Over Cat5e/6/7 656ft/200m
This HDMI KVM USB IP Extender supports two usage methods.

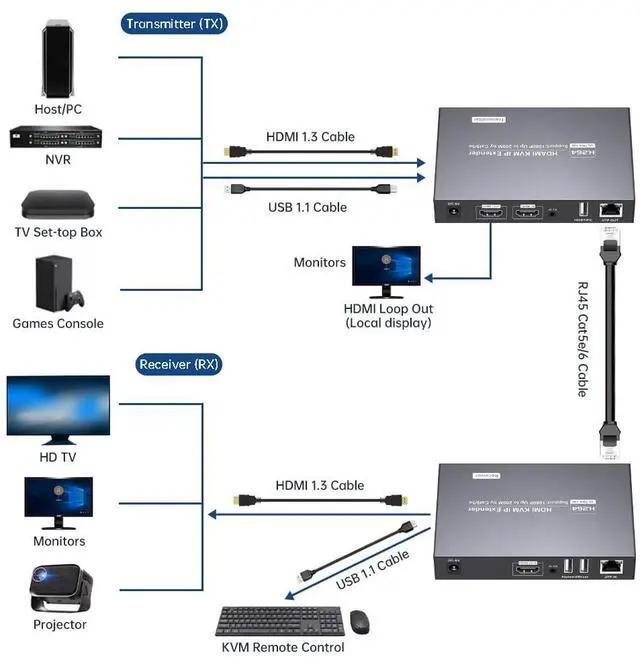

1. In most cases, it is used in a single-cable one-to-one mode, transmitting HDMI and USB signals over the cable to facilitate remote control of a mouse and keyboard.

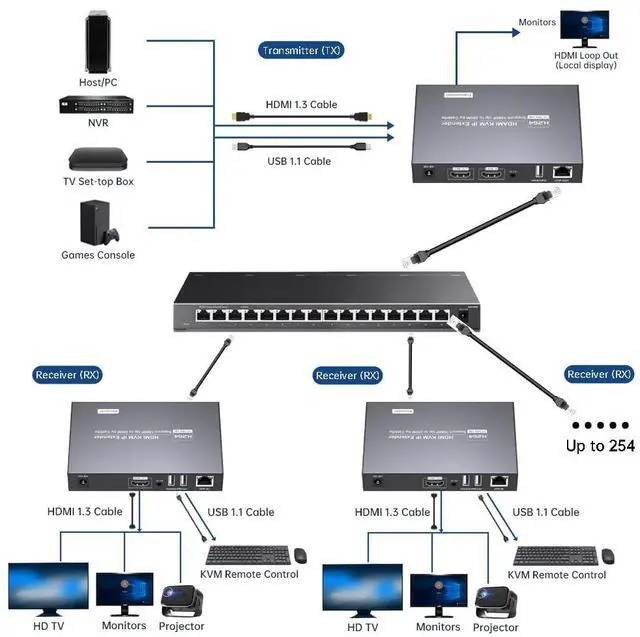

2. It also supports a one-to-many cascading transmission mode (up to 254 cascades). The one-to-many cascading mode requires the use of an Ethernet switch and complies with the 802.3 Ethernet standard, supporting one transmitter (TX) to twenty receivers (RX). It is typically used when multiple monitors need to synchronously display images from the transmitter (TX). Receivers (RX) must be purchased separately for cascading mode. When cascading a large number of devices, a Gigabit Ethernet switch is recommended.
1. Supports 1080P HDMI 1.3 signal and USB 1.1 signal transmission up to 200 meters/656 feet over a single CAT6 cable, 150 meters over CAT5e cable.

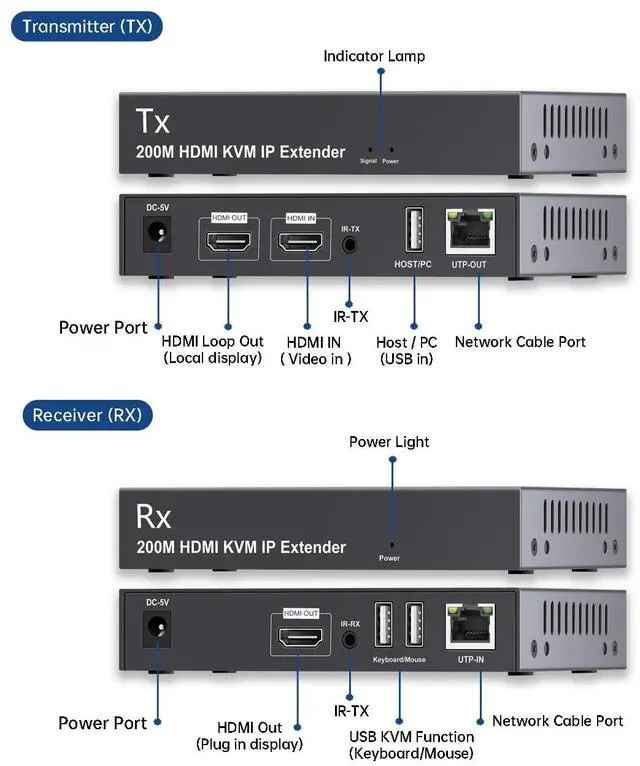

2. Provide HDMI local loop out function at the transmitter (TX). That is, there is an HDMI port on the transmitter side, which can be directly connected to the monitor to realize the real-time playback of local video. View the transmitted remote HDMI input signal image in real time. The resolution must be the same as that of the receiver.
3. Remote control operation of the mouse and keyboard can be realized through cable transmission.
Name: HDMI KVM USB IP Extender
Working voltage: 5~12V/1A
Interface: HDMI A-type female port / RJ45 network port
HDMI signal: HDMI 1.3
Ethernet cable: Cat5e/Cat6/Cat7
Transmission distance: Cat6~7/200m
Resolution: 1080P@60Hz
Material: Iron Shell
Size: 5.3 in * 3.3 in * 0.94 in
Accessories: 2×HDMI KVM Extender + 2×5V/1A Power Adapter + 1×USB Cable + 1×Product manual
This HDMI KVM USB IP Extender supports two usage methods.
1. In most cases, it is used in a single-cable one-to-one mode, transmitting HDMI and USB signals over the cable to facilitate remote control of a mouse and keyboard.
2. It also supports a one-to-many cascading transmission mode (up to 254 cascades). The one-to-many cascading mode requires the use of an Ethernet switch and complies with the 802.3 Ethernet standard, supporting one transmitter (TX) to twenty receivers (RX). It is typically used when multiple monitors need to synchronously display images from the transmitter (TX). Receivers (RX) must be purchased separately for cascading mode. When cascading a large number of devices, a Gigabit Ethernet switch is recommended.
1. Supports 1080P HDMI 1.3 signal and USB 1.1 signal transmission up to 200 meters/656 feet over a single CAT6 cable, 150 meters over CAT5e cable.
2. Provide HDMI local loop out function at the transmitter (TX). That is, there is an HDMI port on the transmitter side, which can be directly connected to the monitor to realize the real-time playback of local video. View the transmitted remote HDMI input signal image in real time. The resolution must be the same as that of the receiver.
3. Remote control operation of the mouse and keyboard can be realized through cable transmission.
Specifications
:Name: HDMI KVM USB IP Extender
Working voltage: 5~12V/1A
Interface: HDMI A-type female port / RJ45 network port
HDMI signal: HDMI 1.3
Ethernet cable: Cat5e/Cat6/Cat7
Transmission distance: Cat6~7/200m
Resolution: 1080P@60Hz
Material: Iron Shell
Size: 5.3 in * 3.3 in * 0.94 in
Accessories: 2×HDMI KVM Extender + 2×5V/1A Power Adapter + 1×USB Cable + 1×Product manual
