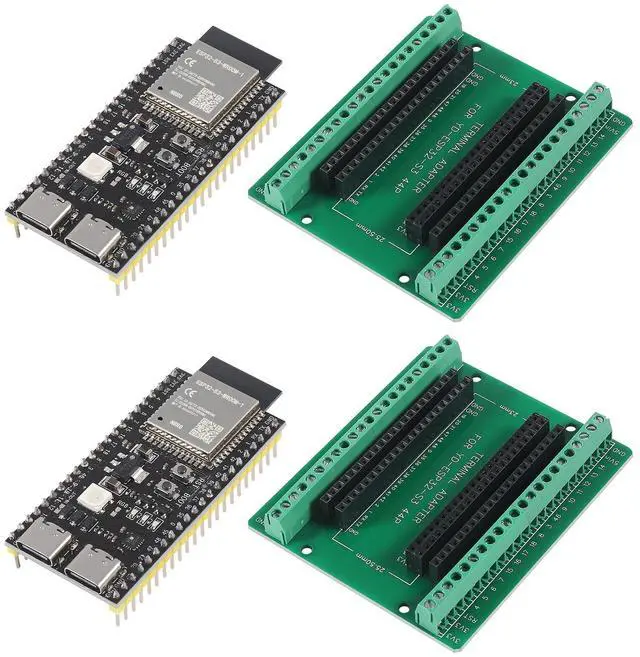

2PCS ESP32 S3 Development Board 2.4G WiFi BT Module Internet of Things ESP32-S3-WROOM-1 N8R8 MCU 44Pin 8M PSRAM with 2PCS Breakout Board Shield Terminal Adapter

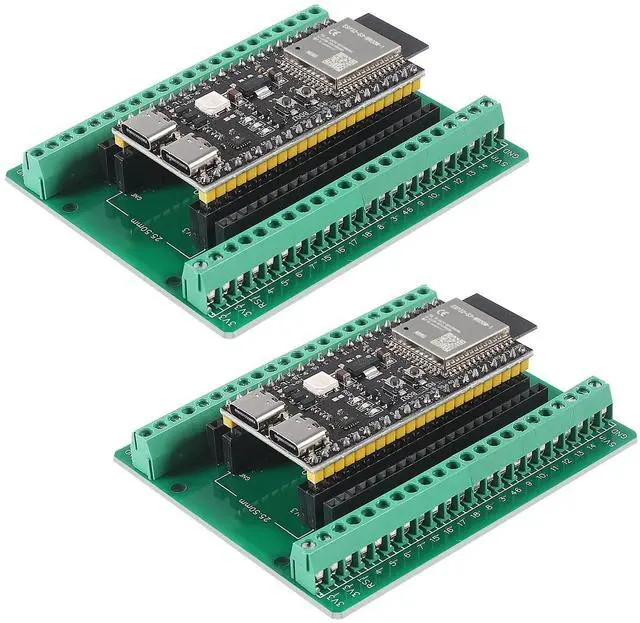

- ESP32-S3 Expansion Board GPIO 1 Into 2 Breakout Board Double-Layers Expansion Board with N8R8 Development Board
- This breakout board can expand the 1 GPI0 pin of the ESP32-S3 board to 2, perfect to reuse all pins and a great tool for your projects
- USB-to-UART Port and ESP32-S3 USB Port (either one or both), default power supply (recommended);8MB Flash; 2MB PSRAM
- Long Range Communications: ESP32-S3 integrates 2.4GHz WiFi (802.11 b/g/n), supporting 40MHz bandwidth; its low-power Bluetooth sub-system supports Bluetooth 5(LE) and Bluetooth Mesh, which can realize long-distance communication with broadcasting extension through Coded PHY. It also supports 2Mbps PHY to increase transmission speed and data throughput. ESP32-S3 has excellent WiFi and Bluetooth LE RF performance, and can work stably under high temperature

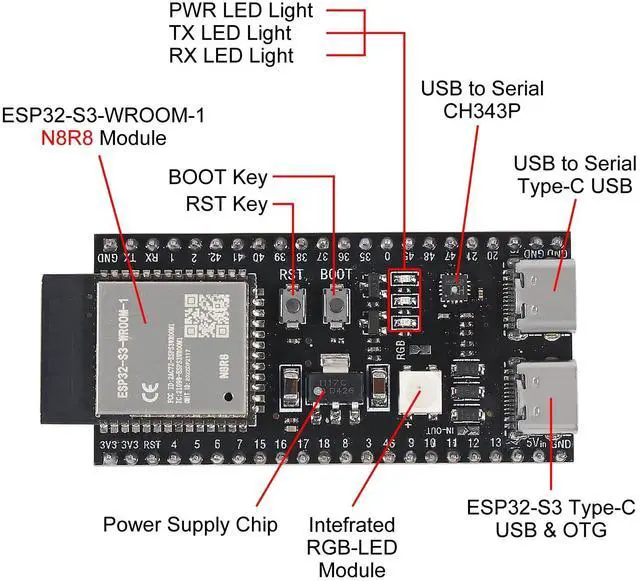

- Pre-Soldered ESP32-S3-DevKitC-1-N8R8:ESP32-S3 is an MCU chip integrating 2.4GHz WiFi and Bluetooth 5 (LE). It is equipped with LX7 dual-core processor, main frequenc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2Sets ESP32 S3 Development Board 2.4G WiFi BT Module Internet of Things ESP32-S3-WROOM-1 N8R8 MCU 44Pin 8M PSRAM with Expansion Adapter
