$42.99
Meet Your Seller

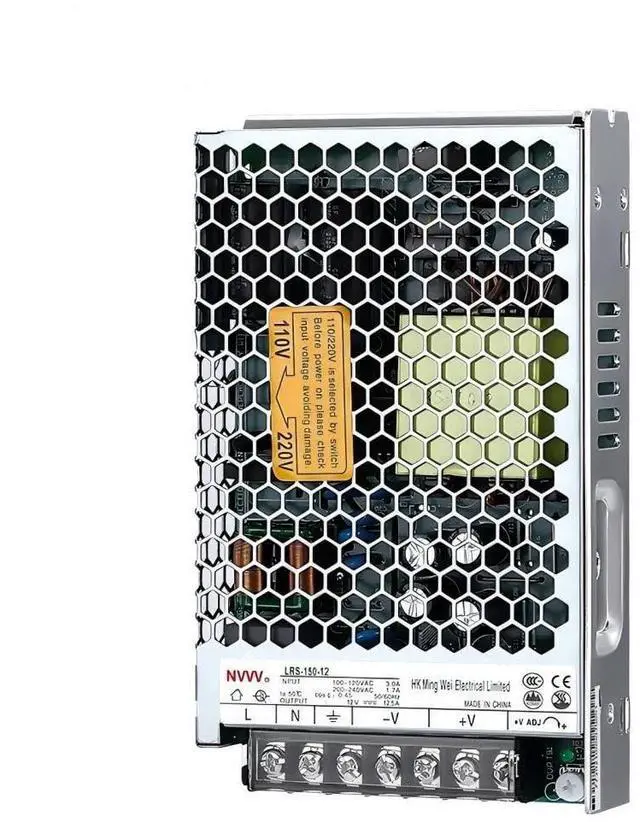

NVVV LRS-150-12 Switching Power Supply 12V 12.5Amp Enclosed Switchable Power Supply

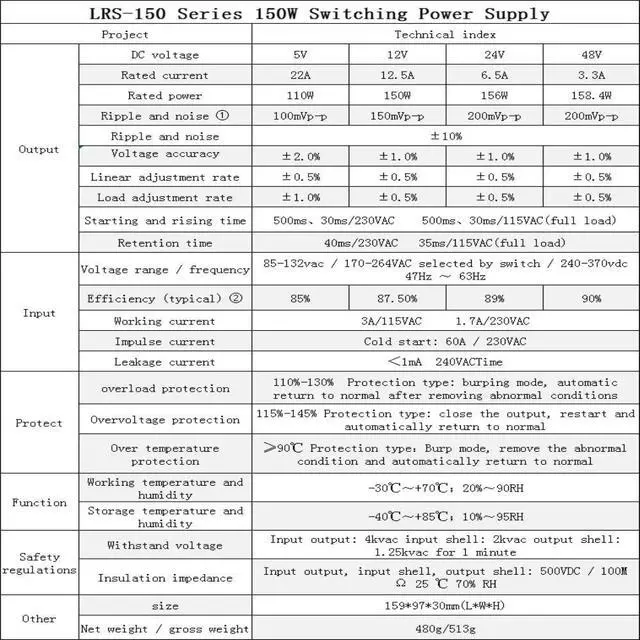

- Input voltage (vac): 85 to 132, 170 to 264
- Output Voltage: 12V; Rated Current & Rated Power: 12.5A,150W
- Output current (a): 12.5Amp

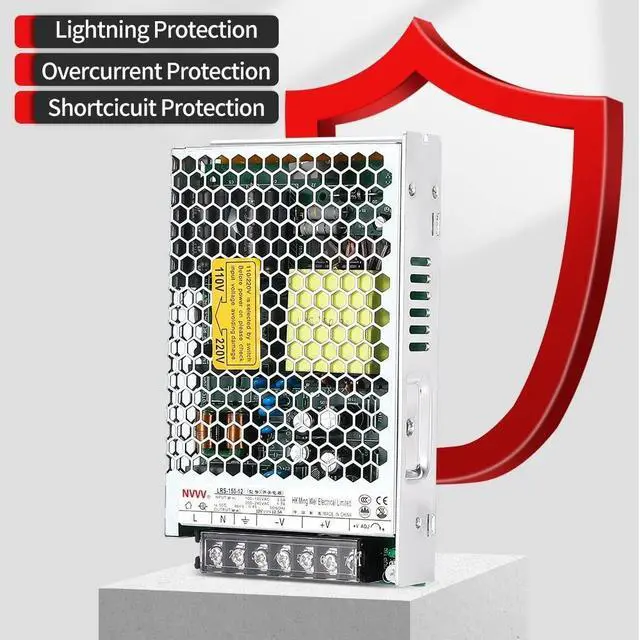

- Full Protections: Short Circuit / Overload / Over Voltage /Over Temperature.

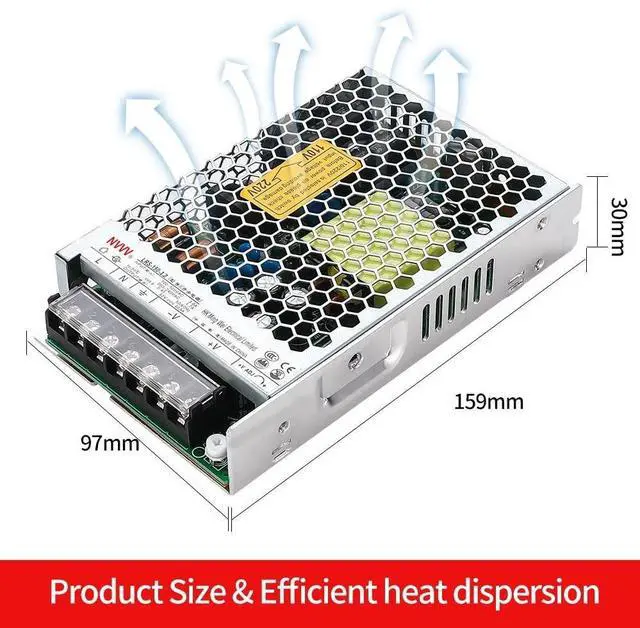

- Size6.69 * 4.06 * 1.38 inches
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Size (L*W*H): 12V
35W: 98*82*30mm12V
50W: 98*82*30mm12V
75W: 99*97*307mm12V
100W: 129*97*30mm12V
150W: 159*97*30mm12V
350W: 215*115*30mmProduct
parameters:
Input:
AC110V/220VOutput: DC12VNumber of
Output: +V x 2, -V
x 2Frequency: 50/60HzWorking
temperature: -25~70Storage
Temperature: -40~85Ambient
Humidity: 10%~95RH
Non-CondensationShell Material: Aluminum base
Silver ToneSpecification: Good quality & high performanceAC 110V / 220V to
DC 12VProtections: Short-circuit, Overload, Over Voltage, Over Temperature ProtectionCooling by free air convection (Not suggest for use in bathroom) The unit can work long hours at rated current and good cooling environment. The actual output current depends on circuit loads. Please DO NOT let the unit work long hours over rated current! Normally it is better to work under 80% of rated current.

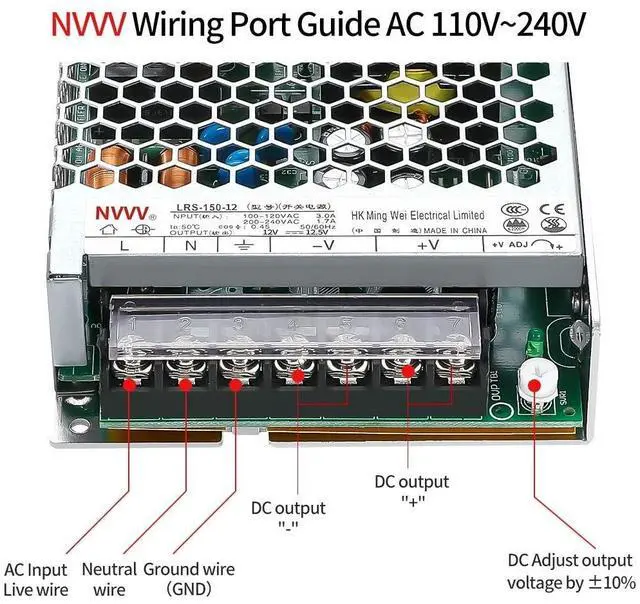

Wiring: L, N, GND: AC
power input+V: DC
power output "+"-V: DC power output "-"+V /
ADJ: Adjust
the output voltage (10%)Note: 1. High Voltage inside, do not remove the cover. Qualified service personnel only. 2. 110V/220V is selected by switch before power on, please check the input voltage avolding damage.
35W: 98*82*30mm12V
50W: 98*82*30mm12V
75W: 99*97*307mm12V
100W: 129*97*30mm12V
150W: 159*97*30mm12V
350W: 215*115*30mmProduct
parameters:
Input:
AC110V/220VOutput: DC12VNumber of
Output: +V x 2, -V
x 2Frequency: 50/60HzWorking
temperature: -25~70Storage
Temperature: -40~85Ambient
Humidity: 10%~95RH
Non-CondensationShell Material: Aluminum base
Silver ToneSpecification: Good quality & high performanceAC 110V / 220V to
DC 12VProtections: Short-circuit, Overload, Over Voltage, Over Temperature ProtectionCooling by free air convection (Not suggest for use in bathroom) The unit can work long hours at rated current and good cooling environment. The actual output current depends on circuit loads. Please DO NOT let the unit work long hours over rated current! Normally it is better to work under 80% of rated current.
Wiring: L, N, GND: AC
power input+V: DC
power output "+"-V: DC power output "-"+V /
ADJ: Adjust
the output voltage (10%)Note: 1. High Voltage inside, do not remove the cover. Qualified service personnel only. 2. 110V/220V is selected by switch before power on, please check the input voltage avolding damage.
