SHANGZHAOYUAN B85M PRO LGA 1150 Motherboard with 2 * 8GB 1600MHz DDR3 RAM, Support 4th Gen Intel Core i7 i5 i3/Pentium/Celeron (PCIe 3.0, NVME M.2, SATA 6Gb/s, VGA/DVI/HDMI-Compatible, Gigabit LAN)

LGA 1150

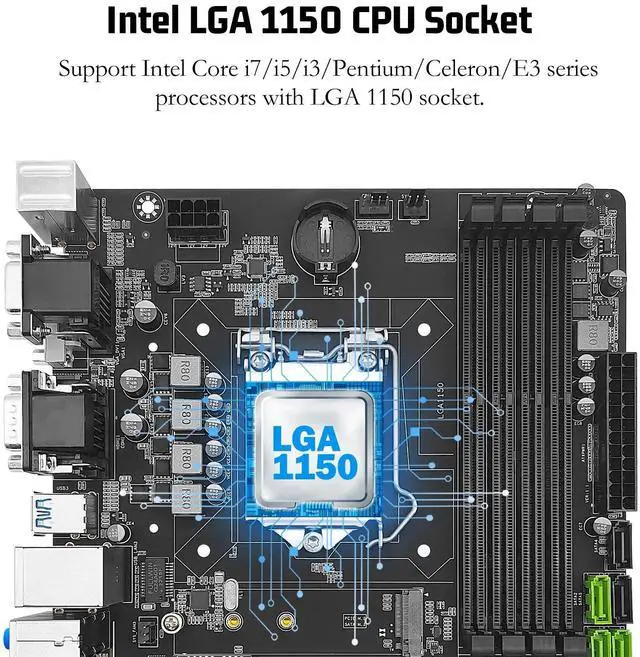

Motherboard: The gaming motherboard supports Intel 4th gen processor (Core i7/i5/i3/Pentium/Celeron/E3 series) with LGA 1150 CPU socket, e. g. i5 4570, i5 4690k, i7 4790, i7 4790k, etc.
^^ Dual-channel DDR3: The Intel LGA1150 motherboard supports dual-channel DDR3 memory, 1333/1600/1866MHz frequency type. 2*8GB 1600MHz DDR3 RAM installed, the maximum memory capacity is 32GB (4*8GB). If installing 2 memory, install them in DIMM1 and DIMM3 ^^ Ultimate

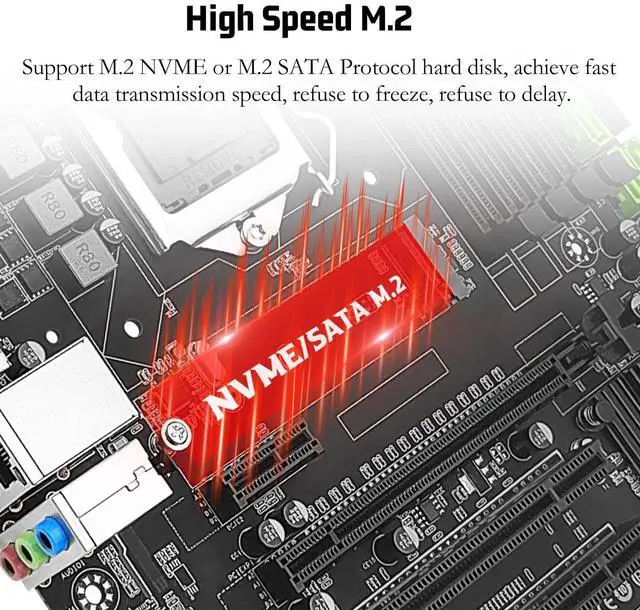

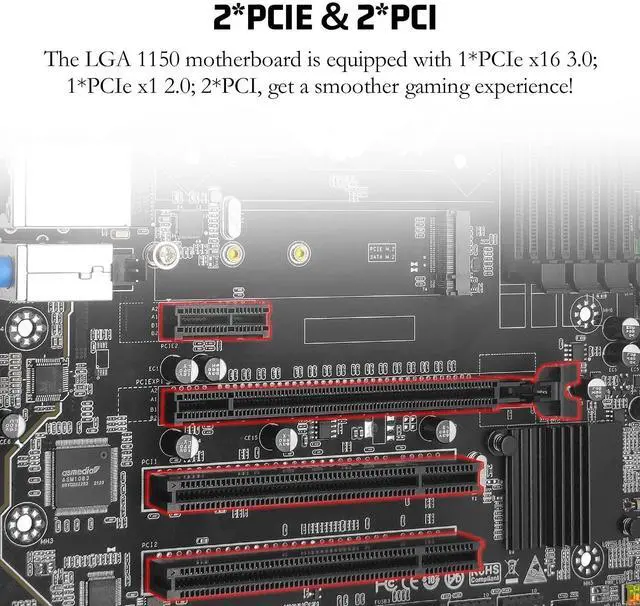

Network Interface: The computer motherboard for Intel i3 i5 i7 supports M. 2 protocol, NVME and SATA mode automatic switching. And it is equipped with 1 PCIe x16 3.0, 1 PCIe x1 2.0, 2 PCI, 3 SATA 3.0, RJ45 gigabit network interface, VGA, DVI and HDMI-compatible high-definition multimedia transmission interface ^^ Stable
Power Supply: 4-phase power supply, all-solid-state capacitor design, fine workmanship, professional stability. And the LGA 1150 ATX motherboard is equipped with 24+8 pin power interface (at least 500w brand power supply) ^^ High
Performance Motherboard: The Intel motherboard is equipped with B85 chipset. And the 8-layer PCB design effectively extends its service life. Heat dissipation armor protection, with strong heat dissipation, to ensure stable bus communication ^^

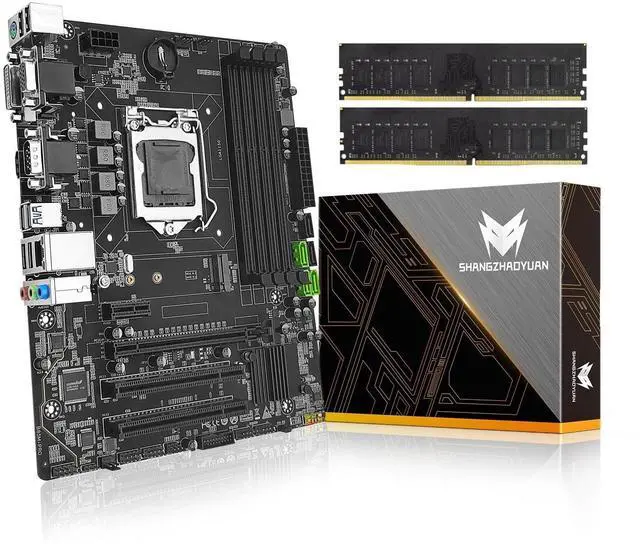

Package Includes: 1*B85 MPRO motherboard, 1*SATA cable, 1*I/0 shield, 2*8GB DDR3 1600MHz RAM.
IMPORTANT: The package does not contain a user manual. If you need the manual, please download it from the product description page or ask us on to get it. And the motherboard does not include a CR2032 battery, please purchase one yourself ^^
Tips 1: If the motherboard does not boot and the fan does not work, please check whether the motherboard power supply and CPU power supply are correctly connected, whether the CPU model and memory model are compatible or good, and whether the memory module is installed in the correct position. If it still does not start after eliminating the above problems, please clear CMOS ^^
Tips 2: If there is no display (the fan is working, press the Caps Lock key on the keyboard, and the keyboard light is not light up), please check whether the motherboard power supply and CPU power supply are correctly connected, check whether the memory module is installed in the correct position, and check whether the CPU and memory models are compatible and good. If there is still no display after eliminating the above, please clear CMOS ^^
Tips 3: If there is no display (the fan is working, press the Caps Lock key on the keyboard, and the keyboard light is light up). Please check whether the monitor is turned on and whether the display data cable is connected properly. If no external graphics card is installed, please check whether the CPU supports integrated graphics. If an external graphics card is installed, please check whether the data cable is correctly connected to the interface of the external graphics card. Check whether the display data cable, graphics card and monitor are in good condition. If there is still no display after eliminating the above, please clear CMOS
