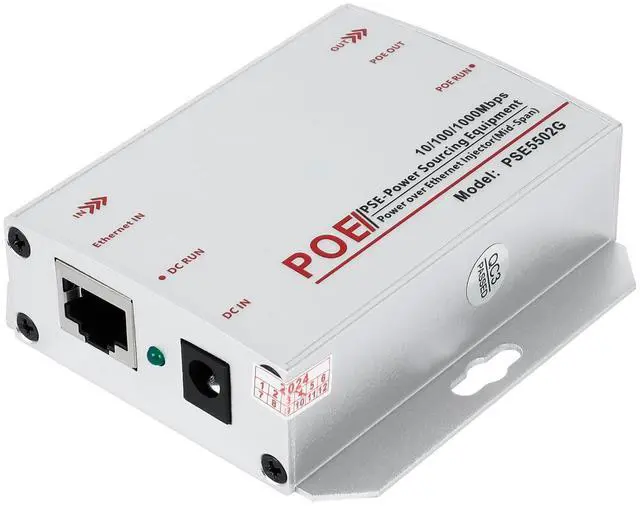

REVODATA Gigabit Industrial 30W PoE+ Injector, Convert Low Voltage DC 12-48V Input to 48V PoE Output, IEEE802.3af/at, DIN-Rail & Wall Mount Injector for Different Scenario (PSE5502G)

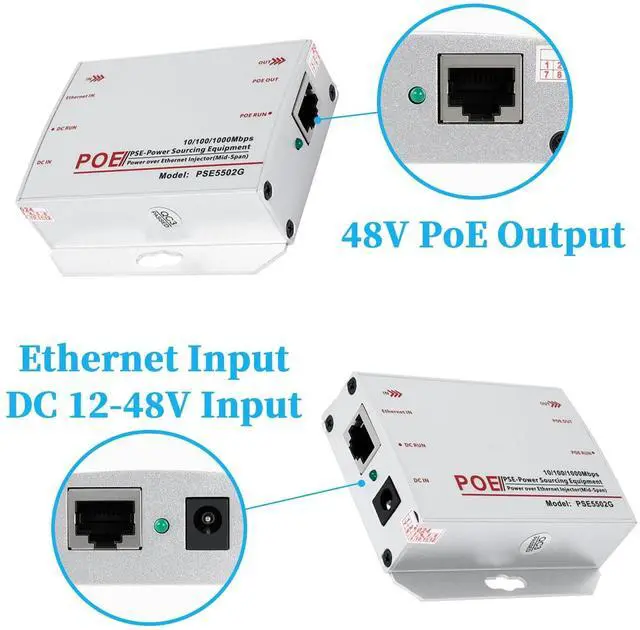

- Low Voltage to High Voltage This product support different input power source, from 12V to 48V. It can turn the low voltage input into standard 48V PoE output at Max 30W
- 100M Long Transmission This product supports up to 100 metres long transmission. Long distance connection is not longer a problem.
- Suitable for Different IndustrialCan be used under various power conditions, e.g. solar power (outdoor solar power, street light power), vehicle power (ambulance, bus, mining truck), battery power (easy to carry).
- IEEE802.3af PoESupport IEEE802.3af/at PoE standard, compatible with other PoE device. Like PoE camera, CPE, AP, 4G/5G device, Intelligent Internet of Things (IoT)
- Safety ProtectionIntelligent detection of power supply, protect equipment from damage.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
OverviewUnmanaged model, plug and play, no configuration required, easy to use. POE injector provides a simple, economical, high-performance, intelligent solution for POE power over Ethernet and data communication. Under the condition that the power supply cannot be provided remotely, the traditional power line network can be expanded, the use of power lines can be reduced, and the construction cost and maintenance cost of the project can be effectively reduced.
Features: Unmanaged Model, Plug and Play, no configuration required. Convert low voltage 12/18/24/48V to high 48V voltage. Support IEEE 802.3 af/at standard, 10/100/1000Mbps Gigabit data transmission. Support isolation circuit protection, short circuit protection, over voltage protection. auto-detects power supply from PSE power supply module. suitable for hotels, campuses, factory
dormitoriesSpecifications:

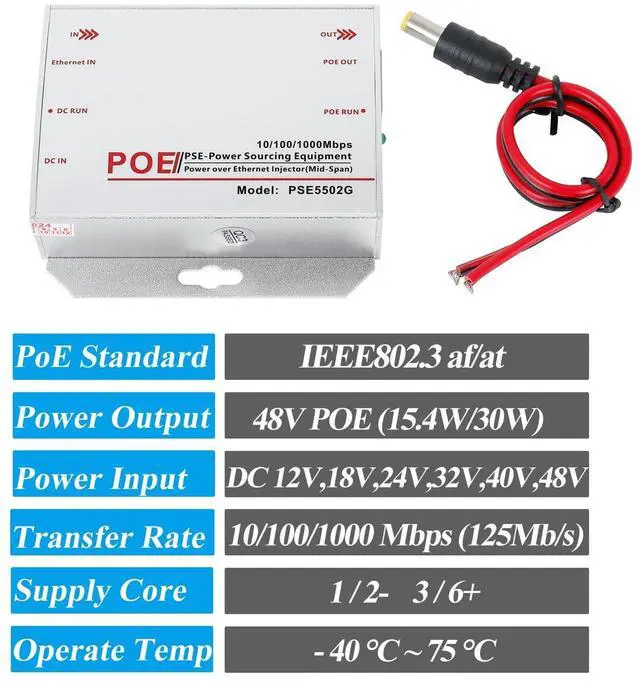

Model: PSE5502GTransfer
Rate: 10/100/1000MbpsPower
Input: DC 12V, 18V, 24V, 48VPoE
Output Voltage: DC 48VPOE
Output Power: 30W (IEEE 802.3 at)POE power supply core: 1/2-
3/6+Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE
802.3 atTemperature: Work
within -40~75Dimension: 81mm*77mm*26mm (L*W*H)
Weight: 155gPackage
Content: Industrial POE Injector*1 (PSE5502G)
Features: Unmanaged Model, Plug and Play, no configuration required. Convert low voltage 12/18/24/48V to high 48V voltage. Support IEEE 802.3 af/at standard, 10/100/1000Mbps Gigabit data transmission. Support isolation circuit protection, short circuit protection, over voltage protection. auto-detects power supply from PSE power supply module. suitable for hotels, campuses, factory
dormitoriesSpecifications:
Model: PSE5502GTransfer
Rate: 10/100/1000MbpsPower
Input: DC 12V, 18V, 24V, 48VPoE
Output Voltage: DC 48VPOE
Output Power: 30W (IEEE 802.3 at)POE power supply core: 1/2-
3/6+Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af, IEEE
802.3 atTemperature: Work
within -40~75Dimension: 81mm*77mm*26mm (L*W*H)
Weight: 155gPackage
Content: Industrial POE Injector*1 (PSE5502G)
