SMTAV AI Auto Tracking PTZ Camera - 20X Optical + 16X Digital Zoom, High-Speed PTZ, 3G-SDI + HDMi+USB3.0 Output, Local Record Support,PoE Support(G03684)

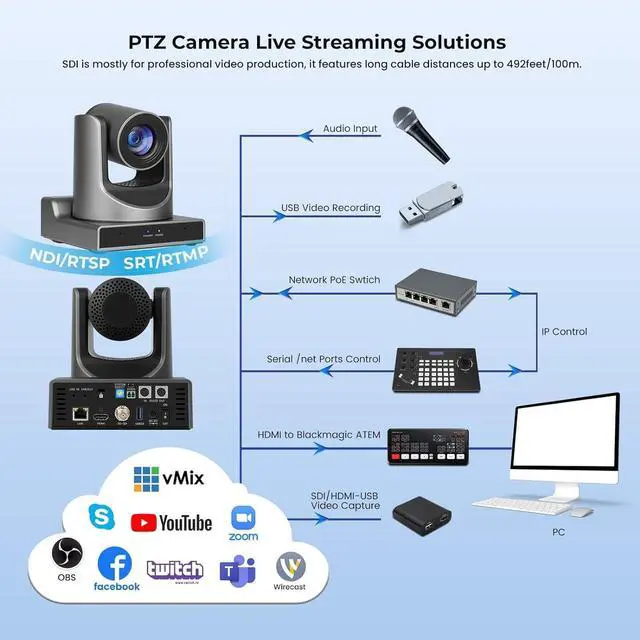

- HDMi Camera is designed with rich ports to meet different usage environments, and supports 3G-SDI, HDMi, LAN, and USB output ports. Reduce the delay caused by the connection to ensure smooth and high-definition video. At the same time support live stream software. Easy and quick to complete the operation
- SMTAV PTZ Camera Spported 1080P60achieved ultra high resolution and lossless image quality by network transmission.Technique of full interface and low latency -- All video output interface achieved low latency metrics. It supported transfering by 4 interfaces at the same time and 1080P60.
- SDI camera has undergone multiple generations of hardware upgrades, eliminating traditional technology and developing smart chips. Improved resolution and visual look and feel. The color is more realistic and the picture is clearer. smatv ptz camera provides the most professional camera for churches, conferences, education and live events
- AI Tracking Camera--based on target's clothes, body sh
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Video 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50Sensor 1/ 2.7 inch, CMOS, effective
pixel: 2.07 m. Scanning Mode ProgressiveLens 20x, f 4.42 mm ~ 88.5 mm, F 1.8 ~ F 2.8. Digital Zoom 16xHorizontal angle of view 60.7 ~ 3.36. Vertical angle of view 34.1 ~ 1.89. Minimum illumination 0.5 Lux @ (F 1.8, AGC ON). Shutter 1/30s ~ 1/10000s. Ceiling installation support. Video Compression H. 265/H. 264/MJPEG. Video Stream Main Stream, Sub StreamMain Stream Resolution 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360Sub Stream Resolution 1280x720, 1024x576 (50Hz), 720x480 (60Hz), 720x408, 640x360, 480x270, 320x240Video Bit Rate 32Kbps ~ 20480KbpsBit Rate Type Variable Rate, Fixed
RateFrame rate 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fpsAudio Compression AAC
Audio bit rate 96Kbps, 128Kbps, 256Kbps. Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.

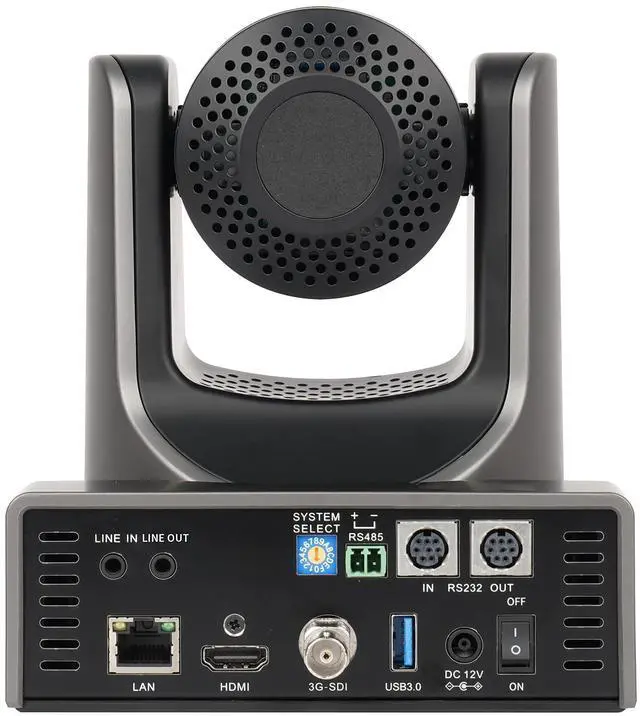

HD output 1x3G-SDI: BNC type, 800mVp-p, 75, Along to SMPTE 424M standard. Network 1xRJ 45:10 M/100M adaptive
Ethernet portsAudio 1-ch: 3.5 mm audio interface, line in, 1-ch: 3.5 mm audio interface, line out.
Communication 1xRS485: Max

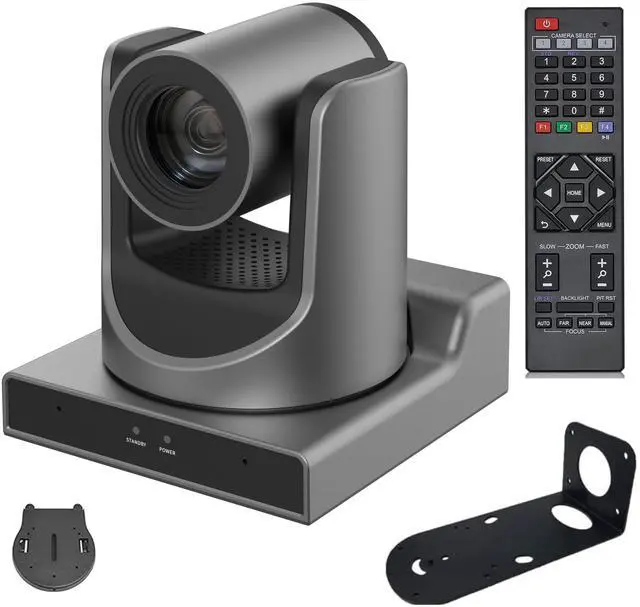

Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-PPower connector JEITA (DC IN 12V) Reset SupportInput voltage DC 12 V. Packing list Camera*1, remote*1, power adapter*1, power cable*1, Wall mount bracket*1, Ceiling mount Bracket *1, RS232 cable*1, USB Cable*1, User manual*1
pixel: 2.07 m. Scanning Mode ProgressiveLens 20x, f 4.42 mm ~ 88.5 mm, F 1.8 ~ F 2.8. Digital Zoom 16xHorizontal angle of view 60.7 ~ 3.36. Vertical angle of view 34.1 ~ 1.89. Minimum illumination 0.5 Lux @ (F 1.8, AGC ON). Shutter 1/30s ~ 1/10000s. Ceiling installation support. Video Compression H. 265/H. 264/MJPEG. Video Stream Main Stream, Sub StreamMain Stream Resolution 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360Sub Stream Resolution 1280x720, 1024x576 (50Hz), 720x480 (60Hz), 720x408, 640x360, 480x270, 320x240Video Bit Rate 32Kbps ~ 20480KbpsBit Rate Type Variable Rate, Fixed
RateFrame rate 50Hz: 1fps ~ 25fps, 60Hz: 1fps ~ 30fpsAudio Compression AAC
Audio bit rate 96Kbps, 128Kbps, 256Kbps. Support protocols TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc.
HD output 1x3G-SDI: BNC type, 800mVp-p, 75, Along to SMPTE 424M standard. Network 1xRJ 45:10 M/100M adaptive
Ethernet portsAudio 1-ch: 3.5 mm audio interface, line in, 1-ch: 3.5 mm audio interface, line out.
Communication 1xRS485: Max
Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-PPower connector JEITA (DC IN 12V) Reset SupportInput voltage DC 12 V. Packing list Camera*1, remote*1, power adapter*1, power cable*1, Wall mount bracket*1, Ceiling mount Bracket *1, RS232 cable*1, USB Cable*1, User manual*1
