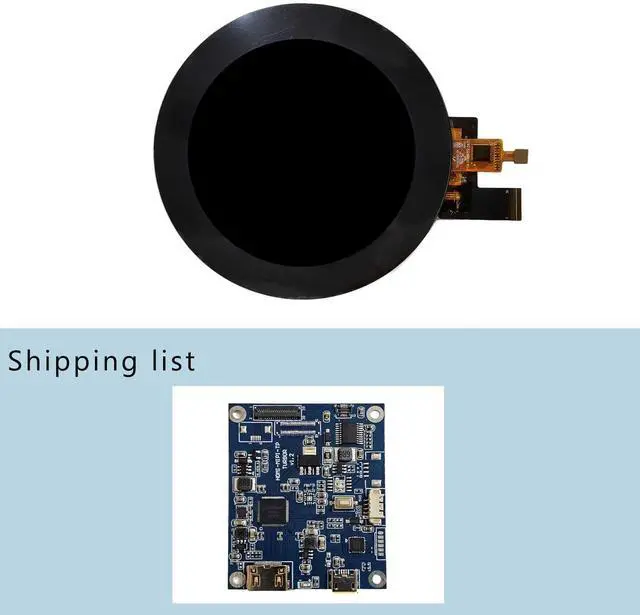

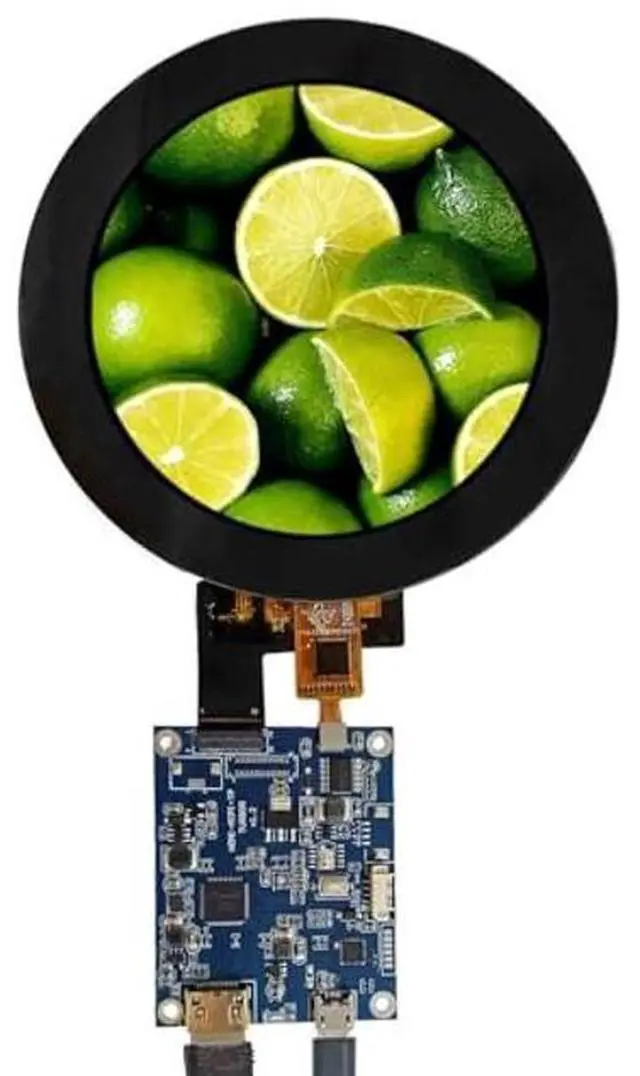

FanyiTek 3.4 inch 800x800 IPS MIPI 330nit Round LCD Touch Screen and 39 pins Controller Board
- Round MIPI screen3.4" 800x800 cirle display,IPS full viewing angle,outline size:94.9x96.95x2.3(WHD)mm,display area:87.6x 87.6(WH)mm,330nit high brightness ,WLED backlight ,input voltage: 2.8V .

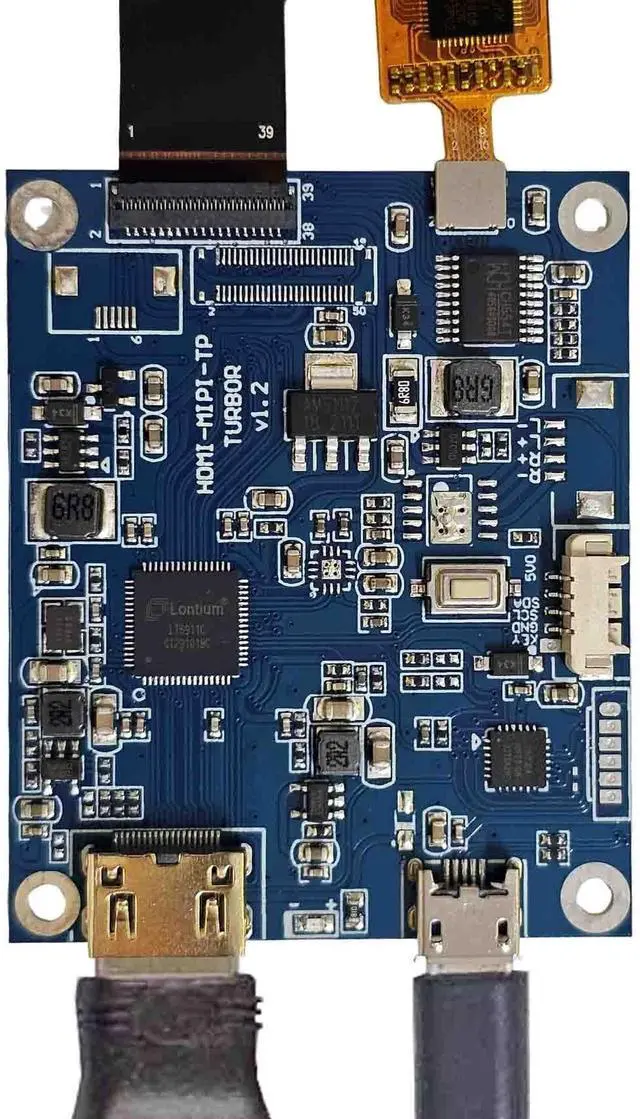

- Controller boardVideo input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- Capacitive Touch sensor panelThe design of touch panel makes the operation more convenient, No button damage issue for after long time use.
- Input Power5Vdc More than 1A,Pls prepare it seperately .

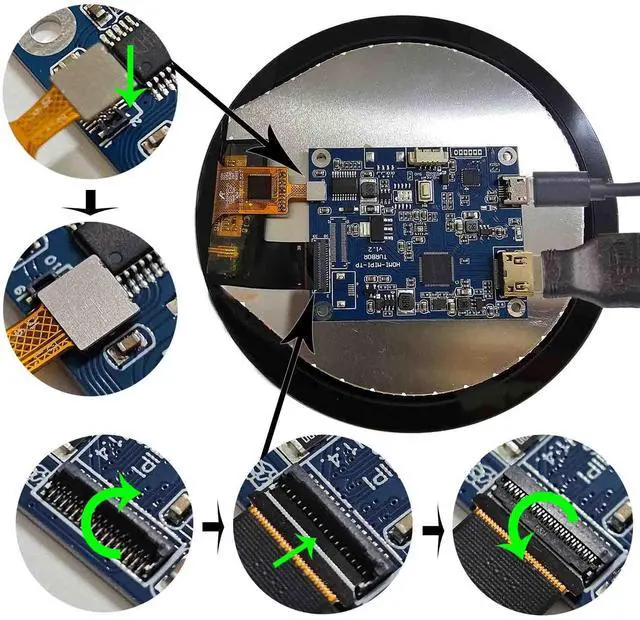

- Plug and playConnecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
LCD Controller Board: Input
Power Adapter: USB 5V More than 1A. Come In Standby Model When Not
Input SignalVideo Input: Micro
H/DBoard Size: 50mm x 35mm x 5mm 3.4" VS34003C39 800X800 Capacitive Touch
LCD Screen: Display Mode IPS, Normally White, TransmissiveResolution 800 (RGB) x800Outline Size 104.4 x 104.4 x4 (WHD) mmDisplay Area 87.6 x 87.6 (WH) mmBrightness 330 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi, 39 pinsBacklight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board 13.4 inch VS34003C39 800x800 Capacitive Touch LCD Screen
Power Adapter: USB 5V More than 1A. Come In Standby Model When Not
Input SignalVideo Input: Micro
H/DBoard Size: 50mm x 35mm x 5mm 3.4" VS34003C39 800X800 Capacitive Touch
LCD Screen: Display Mode IPS, Normally White, TransmissiveResolution 800 (RGB) x800Outline Size 104.4 x 104.4 x4 (WHD) mmDisplay Area 87.6 x 87.6 (WH) mmBrightness 330 cd/m (Typ. )Contrast Ratio 300:1 (Typ. ) (TM) Viewing Angle 85/85/85/85 (Typ. ) (CR10) [Left / Right / Up / Down]Interface Mipi, 39 pinsBacklight WLED
Input Voltage 2.8V (Typ.
)Packing list: 1 LCD Board 13.4 inch VS34003C39 800x800 Capacitive Touch LCD Screen
