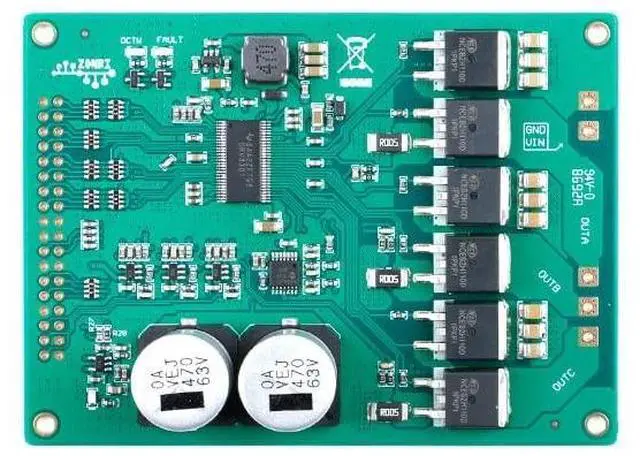

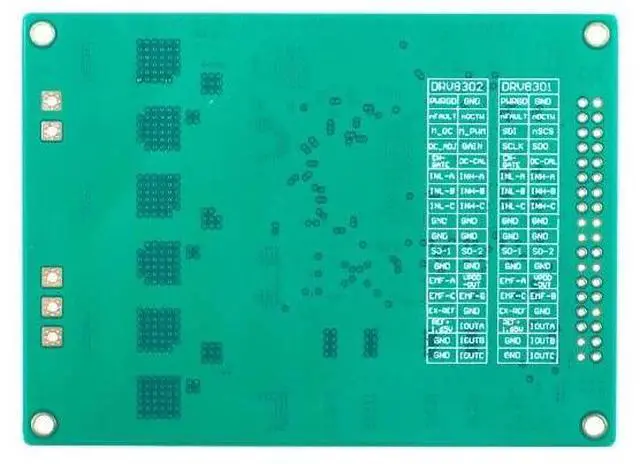

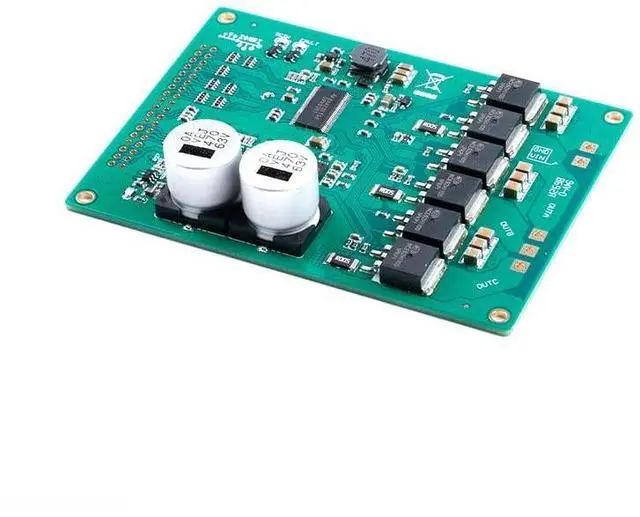

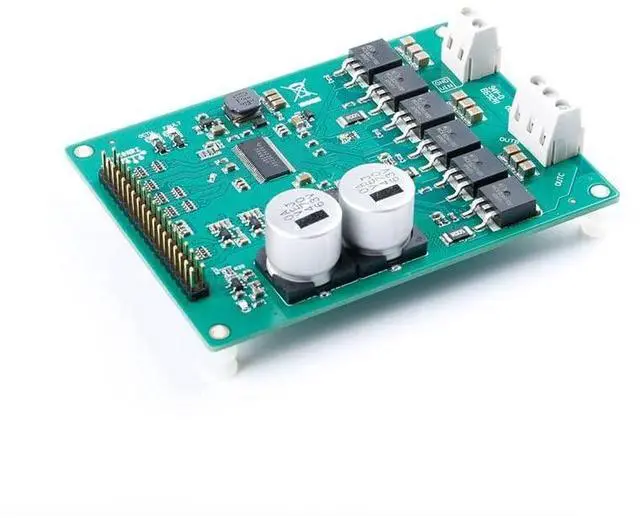

JESSINIE DRV8301 High Power Motor Driver Module Dual Current Shunt Amplifier Three Phase Power Grid Driver and Step Down Regulator High Power Motor Driver Module BLDC Brushless PMSM Driver
- OverviewThe DRV8301 is a 6V to 60V gate driver IC for three phase motor drive applications. This device reduces external component count by integrating three half bridge drivers, two current shunt amplifiers, and a switching buck converter. The DRV8301 provides overcurrent, overtemperature, and undervoltage protection. Fault conditions are indicated through the nFAULT and nOCTW pins in addition to the SPI registers.
- Features: The power supply voltage range is 6-60v. CurrentCapability comes with 1.7-A source and 2.3-A sink door driver. The product can also reduce electromagnetic interference variable speed control. The product features a guide door drive with 100% cycle support. There are 6 or 3 pwm input modes to choose from. The DRV8301 dual integrated current shunt amplifier has adjustable gain and offset. With integrated 1.5 a Buck converter. Supports 3.3 v and 5 v interfaces And SPI.
- Protection functions: DRV8301 has the following protection functions. Programmable dead time
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
The DRV8301 is a gate driver IC for three-phasemotor drive applications. The device provides threehalf-bridge drivers, each capable of driving two N channel MOSFETs. The DRV8301 supports up to 1.7 -A source and 2.3 -A peak current capability. TheDRV8301 can operate off of a single power supplywith a wide range from 6-V to 60-V. The device uses a bootstrap gate driver architecture with trickle charge circuitry to support 100% duty cycle. The DRV8301 uses automatic handshaking when the high-side or low-side MOSFET is switching to prevent flow of current. Integrated VDS sensing of the high-side and low-side MOSFETs is used to protect the external power stage against overcurrent conditions.
