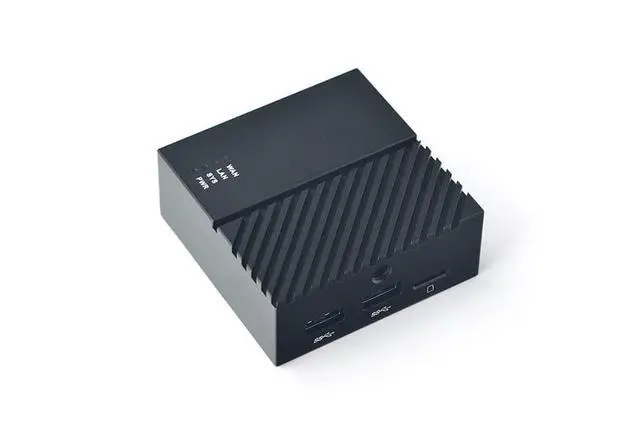

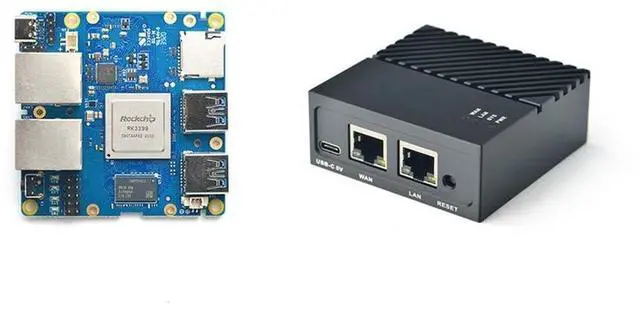

Nanopi R4S Mini Portable Travel Router OpenWRT with Dual-Gbps Ethernet Ports 4GB LPDDR4 Based in RK3399 Soc for IOT NAS Smart Home Gateway(Without MAC chip)
- [WIRELESS MOBILE MINI TRAVEL ROUTER] NanoPi R4S can support external USB wifi adapter. Simultaneous dual band with wireless speed 150Mbps(2.4G)+433Mbps(5G).Convert a public network(wired/wireless) to a private Wi-Fi for secure surfing
- [OPEN SOURCE & PROGRAMMABLE] It can support FriendlyWrt, which is a customized system based on an OpenWrt distribution. It is open source and well suitable for developing IoT applications, NAS applications, smart home gateways etc
- [DUAL GBPS ETHERNET PORTS] The NanoPi R4S has two Gbps Ethernet ports: one directly extended from the SoC and the other converted from a PCIe.gets around 934Mbits/second download and upload

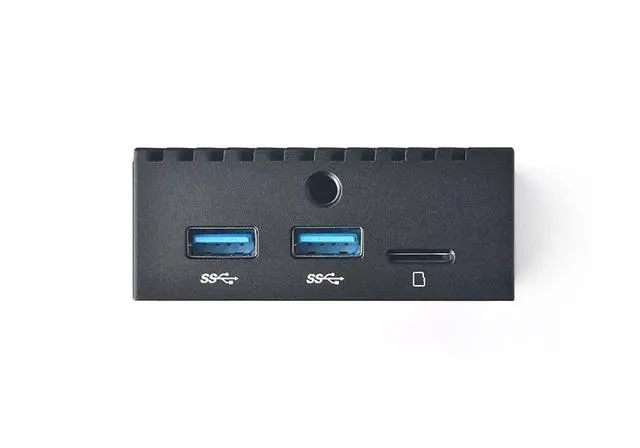

- [LARGER STORAGE & EXTENSIBILITY] 4GB RAM LPDDR4, up to 128GB MicroSD slot, USB3.0 Host x2: USB Type A; USB 2.0 Host x1: 2.54mm 4pin-header;Type-C x1: Power Input Only , Dual Gigabit Ethernet ports (1 WAN and 1 LAN)
- [No MAC Chip] According to other hardware IDs, the software automatically generates a MAC address, which does not aff
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

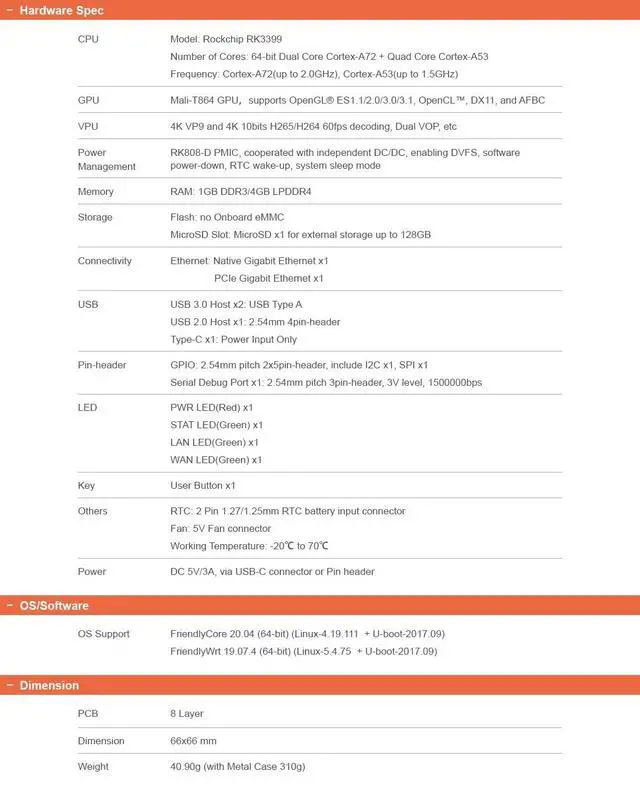

-Specification-CPU:
Model: Rockchip RK3399Number of
Cores: 64-bit Dual Core Cortex-A72+ Quad
Core Cortex-A53Frequency: Cortex-A72(up to 2.0GH z), Cortex-A53(up
to 1.5GH z)GPU: Mali-T864 GPU, supports OpenGLR ES 1.1 / 2.0 / 3.0 / 3.1, OpenCL, DX11, and
AFBCVPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual vOP, etcPower ManagementRK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, softwarepower-down, RTC wake-up, system
sleep modeMemory:
RAM: 4GB
LPDDR4Storage:
Flash: no Onboard eMMC
MicrosD Slot: MicroSD x1 for external storage up to 128GBConnectivity:
Ethernet: Native Gigabit Ethernet x1PCle Gigabit
Ethernet x1USB: USB 3.0
Host x2: USB Type AUSB 2.0 Host x 1: 2.
54mm 4pin-headerType-C x1: Power
Input OnlyFan: 5V
Fan connectorWorking Temperature: -20
to 70Power: DC 5V/3A, via USB-C connector or Pin header-OS/Software-FriendlyCore 20.04 (64-bit)(Linux- 4.19. 111 + U-boot- 2017.09 )FriendlyWrt 19.07. 4(64-bit)(Linux- 5.4. 75 +
U-boot- 2017.09 )-Dimension-PCB: 8
LayerDimension: 66
x 66 mmWeight: 40.90 g (with Metal Case 310g) -Package Content-NanoPi R4S 4GB RAM with Metal Case * 1 (Standard Version-Without MAC chip)
Model: Rockchip RK3399Number of
Cores: 64-bit Dual Core Cortex-A72+ Quad
Core Cortex-A53Frequency: Cortex-A72(up to 2.0GH z), Cortex-A53(up
to 1.5GH z)GPU: Mali-T864 GPU, supports OpenGLR ES 1.1 / 2.0 / 3.0 / 3.1, OpenCL, DX11, and
AFBCVPU: 4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual vOP, etcPower ManagementRK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, softwarepower-down, RTC wake-up, system
sleep modeMemory:
RAM: 4GB
LPDDR4Storage:
Flash: no Onboard eMMC
MicrosD Slot: MicroSD x1 for external storage up to 128GBConnectivity:
Ethernet: Native Gigabit Ethernet x1PCle Gigabit
Ethernet x1USB: USB 3.0
Host x2: USB Type AUSB 2.0 Host x 1: 2.
54mm 4pin-headerType-C x1: Power
Input OnlyFan: 5V
Fan connectorWorking Temperature: -20
to 70Power: DC 5V/3A, via USB-C connector or Pin header-OS/Software-FriendlyCore 20.04 (64-bit)(Linux- 4.19. 111 + U-boot- 2017.09 )FriendlyWrt 19.07. 4(64-bit)(Linux- 5.4. 75 +
U-boot- 2017.09 )-Dimension-PCB: 8
LayerDimension: 66
x 66 mmWeight: 40.90 g (with Metal Case 310g) -Package Content-NanoPi R4S 4GB RAM with Metal Case * 1 (Standard Version-Without MAC chip)
