BNC Cable to HDMI Video Signal Convertor,Audio Video Capture Converte,4 in 1 HD Convertor AHD/TVI/CVI/CVBS Signal to HDMI/VGA/CVBS 1080p for Camera/DVR/CCTV Security System

4-in-1
Video Signal Convertor: This is a AHD/TVI/CVI/CVBS video signal to HDMI/VGA/CVBS convertor, then you get the HDMI, compatible with 1080P, 960P, 720P, 480P input. output support 1080P and 720P. Supporting BNC Cable to HDMI VGA BNC (CVBS) HD Video convertor ^^ AHD Front
Panel Instruction:
Port/Function:
A: Output signal shift /
B: Signal output resolution or TV mode shift /
V-IN: Signal input (AHD TVI CVI CVBS) /
DC: Power input 5V-20V /
Indicator (From left to right): VGA signal, CVBS signal, HDMI signal, Power (Red) ^^ Video Signal Convertor Rear
Panel Instruction:
Port/Function:
V-OUT: CVBS signal output (NCTS or PAL optional) /
VGA: VGA signal output /
HDMI: HDMI signal output[720P or 1080P optional] ^^

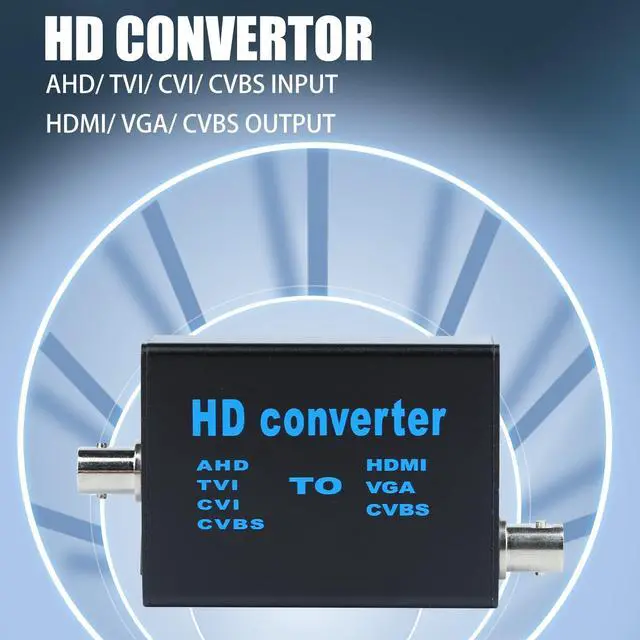

Full HD Convertor Signal Input: It convert AHD/TVI/CVI/CVBS signal to HD/VGA/CVBS signal. support 1080P/960P/720P AHD, 1080P/960P/720P TVI, 1080P/960P/720P CVI, CVBS Signal, You can shift it by the button on convertor. MPS wide power 5V-20V design helps it widely used in different working conditions ^^ Video Converter to
HDMI: TVI/CVI/AHD/CVBS-to-HDMI converter seamlessly converts TVI, CVI, AHD, CVBS signals from cameras or other devices to 720/1080P HDMI signals for display on HDMI screens, you no need the video converter software
