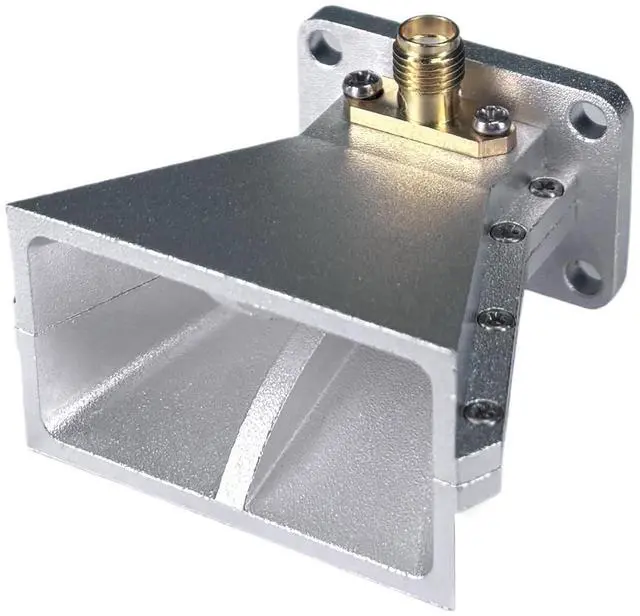

6-18GHz High-Frequency Horn Antenna 12dBi, Precision Waveguide to Coaxial Transition, Military & Aerospace Grade, Radar Testing, Satellite Communication
- Extended High-Frequency Range - Covers 6-18GHz with optimized performance for modern radar, satellite, and electronic warfare systems requiring ultra-wideband capabilities
- High Gain & Low VSWR - Delivers 7-12dBi gain ensuring excellent signal strength and minimal loss for critical high-frequency applications
- Precision Waveguide Transition - Incorporates advanced waveguide to coaxial transition design maintaining signal integrity and phase stability across entire frequency range
- Aerospace-Grade Durability - Constructed with precision-machined aluminum and military-standard connectors, certified for vibration, shock, and extreme temperature operation
- Specialized Application Focus - Designed specifically for radar cross-section measurements, satellite ground testing, electronic warfare systems, and advanced research applications
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Cutting-Edge High-Frequency Horn Antenna for Advanced RF Systems This 6-18GHz high-frequency horn antenna represents the pinnacle of RF engineering for demanding applications in aerospace, defense, and advanced research. With its ultra-wideband capabilities and precision performance characteristics, it meets the rigorous requirements of modern electronic systems operating in the microwave spectrum. Unmatched Technical

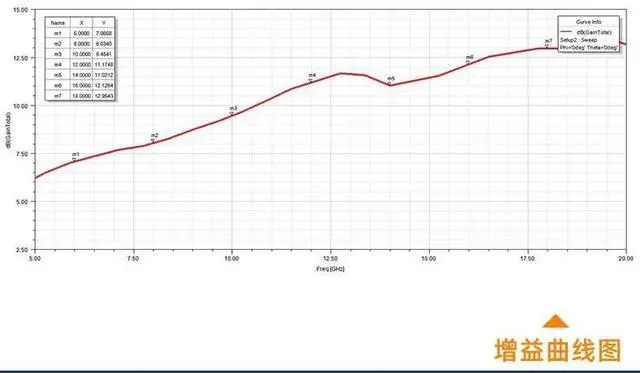

Gain: 7-12dBi (frequency dependent)

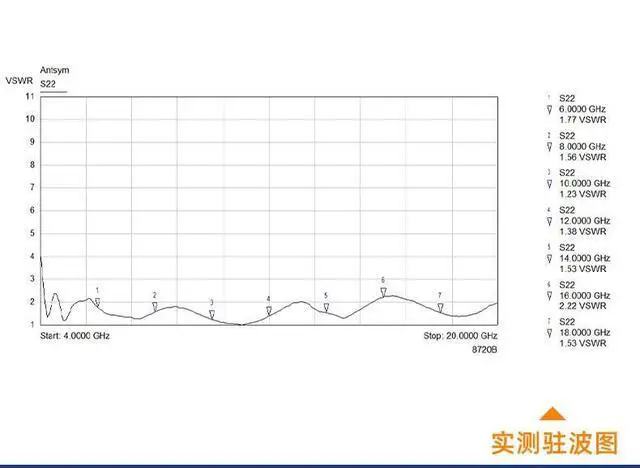

VSWR: 2.5 (Excellent impedance matching)
Beamwidth: Progressive narrowing with frequency
Power Handling: 50W average, 1kW peak
Operating Temperature: -55C to +85C
Material: 6061-T6 Aluminum with iridite finishing
Critical Applications Radar Systems Testing: Essential for radar cross-section measurements and system calibration
Satellite Communications: Ground station testing, satellite payload verification, and link budget analysis
Electronic Warfare: Signal intelligence, jamming system testing, and threat simulation
Advanced Research: Used in anechoic chambers, RCS ranges, and electromagnetic research facilities
Military & Aerospace: Qualified for military platforms, airborne systems, and defense applications Engineering Excellence The antenna features a proprietary waveguide transition design that maintains exceptional phase linearity and amplitude stability. Each unit comes with comprehensive test data including gain, VSWR, and radiation patterns at multiple frequency points.

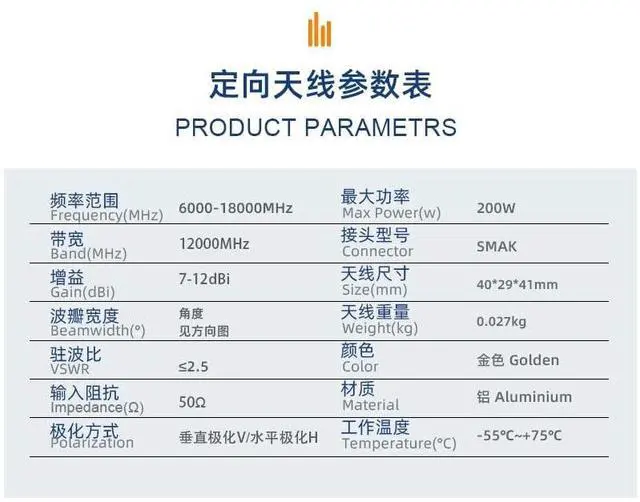

Specifications
Frequency Range: 6-18GHzGain: 7-12dBi (frequency dependent)
VSWR: 2.5 (Excellent impedance matching)
Beamwidth: Progressive narrowing with frequency
Power Handling: 50W average, 1kW peak
Operating Temperature: -55C to +85C
Material: 6061-T6 Aluminum with iridite finishing
Critical Applications Radar Systems Testing: Essential for radar cross-section measurements and system calibration
Satellite Communications: Ground station testing, satellite payload verification, and link budget analysis
Electronic Warfare: Signal intelligence, jamming system testing, and threat simulation
Advanced Research: Used in anechoic chambers, RCS ranges, and electromagnetic research facilities
Military & Aerospace: Qualified for military platforms, airborne systems, and defense applications Engineering Excellence The antenna features a proprietary waveguide transition design that maintains exceptional phase linearity and amplitude stability. Each unit comes with comprehensive test data including gain, VSWR, and radiation patterns at multiple frequency points.
