$59.99
Meet Your Seller

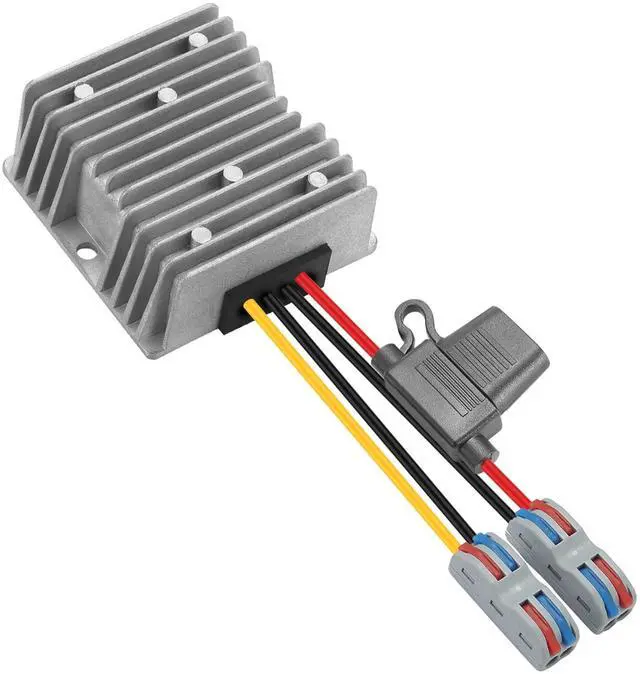

YABOANG DC/DC Buck Power Supply 30-90V to 24V, 24V20A Fused Voltage Converter 480W MAX Power Transformer Waterproof Step Down Module for Automotive, LED Lights, Boat Dock, Instruments.

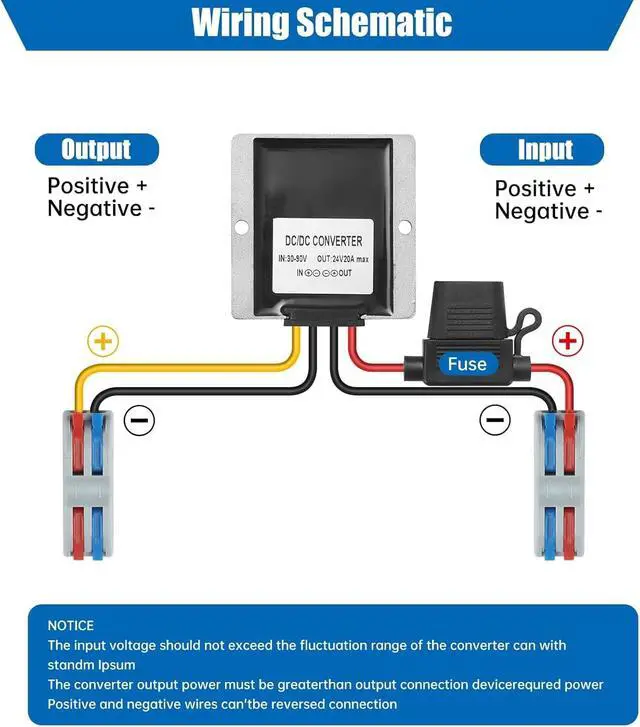

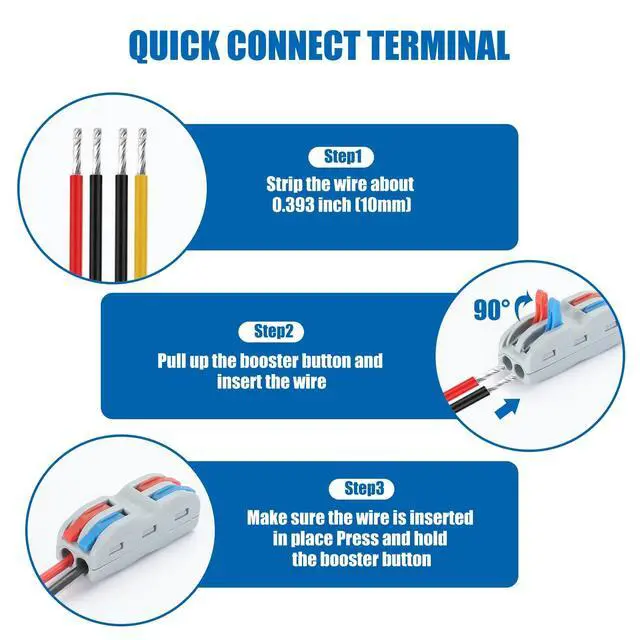

- 30-90V to 24V DC Voltage TransformerInput range:30V to 90V; output voltage : 24V(fixed output) output current : 20A output power : 480W (MAX). Be sure to insulate the wire 0.4 inches (10 mm or so) and insert it into the plug when installing.

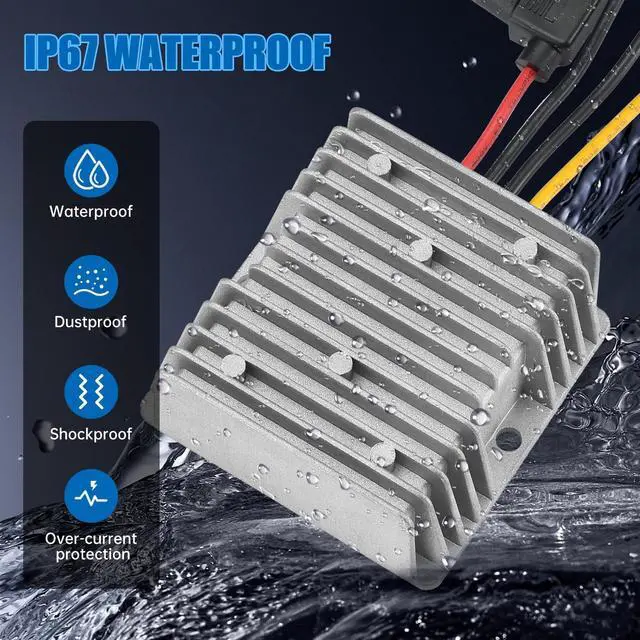

- Heat Dissipation PerformanceThe 30-90V to 24V voltage regulator has IP67 waterproof classification, compact aluminum housing, epoxy resin potting, 100% waterproof, dustproof, shockproof, better heat dissipation performance.
- Intelligent ProtectionAssembled with smart chip, equipped with intelligent overcurrent/overload/low load/short circuit/overheat protection by using the 30-90V to 24V power transfomer voltage.
- Widely ApplicationThe 30-90V to 24V DC voltage converter is widely used in the fields of automotive, photovoltaics, industrial plants, motor vehicles, boats, agricultural machinery, camping, mobile structures, hobby and DIY etc.
- Please NoteThe load connected to the transformer converter output should not exceed the specified max
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Verification of environmental conditions. A. Unless otherwise specified, the tests in this specification shall be conducted under the standard atmospheric conditions testedB.
temperature: 15~35. C.
Relative humidity: 45%~75%. D. The instrument accuracy of the measured voltage shall not be less than 0.5 levels and the internal resistance shall not be less than 10 K/V. E. The instrument accuracy of measured current shall not be less than 0.5 level. F. The accuracy of the instrument used for temperature measurement shall not be less than 1. Product parameters.

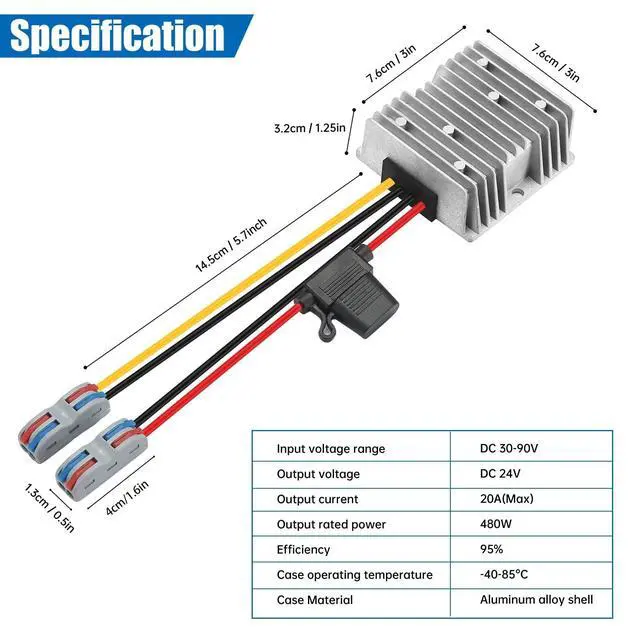

Input range: 30-90VRated
input voltage: 36V/48V/60V/72V/84Vtransfer
efficiency: 95%input
line: 15-16CM (R+
B-)output voltage:
24VOutput: 20A MAX
Maximum output: 480W MAX
No-load adjustment rate: 2%load
regulation: 3%idle
dissipation: 15MAripple
wave: 200mVP-PSAFETY TESTING. Do not use the device near a heat source (such as a fire or heater). Do not connect the input line to 220V electricity. Do not put the product in fire or heat it. Do not short the positive and negative poles of the product with wires or other metal objects. It is forbidden for non-professional personnel to disassemble and repair the product by themselves.
temperature: 15~35. C.
Relative humidity: 45%~75%. D. The instrument accuracy of the measured voltage shall not be less than 0.5 levels and the internal resistance shall not be less than 10 K/V. E. The instrument accuracy of measured current shall not be less than 0.5 level. F. The accuracy of the instrument used for temperature measurement shall not be less than 1. Product parameters.
Input range: 30-90VRated
input voltage: 36V/48V/60V/72V/84Vtransfer
efficiency: 95%input
line: 15-16CM (R+
B-)output voltage:
24VOutput: 20A MAX
Maximum output: 480W MAX
No-load adjustment rate: 2%load
regulation: 3%idle
dissipation: 15MAripple
wave: 200mVP-PSAFETY TESTING. Do not use the device near a heat source (such as a fire or heater). Do not connect the input line to 220V electricity. Do not put the product in fire or heat it. Do not short the positive and negative poles of the product with wires or other metal objects. It is forbidden for non-professional personnel to disassemble and repair the product by themselves.
