Gigabit 2-Port PD Switch with Type-C Output (Up to 60W 3A Max), IEEE802.3at/bt PoE to USB3.0 5V/9V/12V/15V/20V Output, Industrial ethernet Switch with 100/1000M SFP for Laptop/Phone/IP Cameras

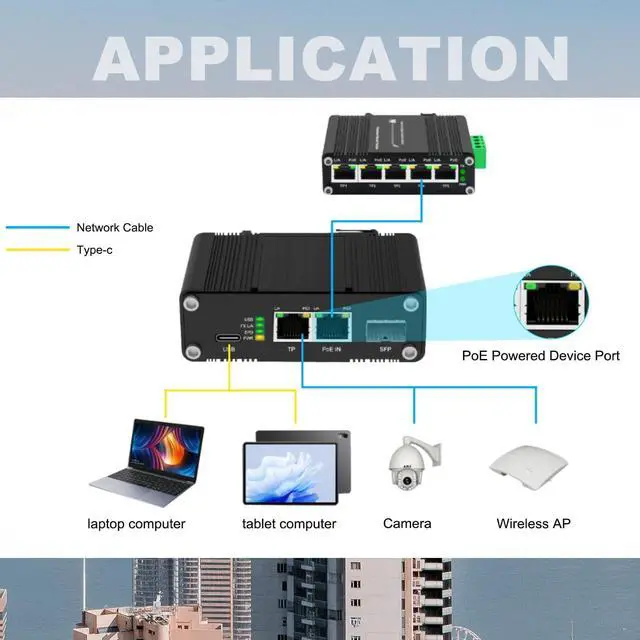

OverviewThe LNK-GE-USB-PD product is Mini Industrial PD Ethernet Switch with Type-C Output. This switch offers a flexible connection method for a Type-C USB powered device to join in network through RJ-45 port or optical fiber interface. This switch is combined with 1 x Type-C USB 3.0 port, 2 x 10/100/1000M RJ-45 ports and 1 x 100/1000M SFP port. ThePoE INRJ-45 port accepts PoE (Power over Ethernet) power input from the remote PSE switch or PoE injector, so the switch can work without additional power supply. The Type-C USB port can support USB PD protocol and deliver 5.0 -20V ( 3.0A max) DC power to laptop computer, tablet computer, smartphone or other equipments.

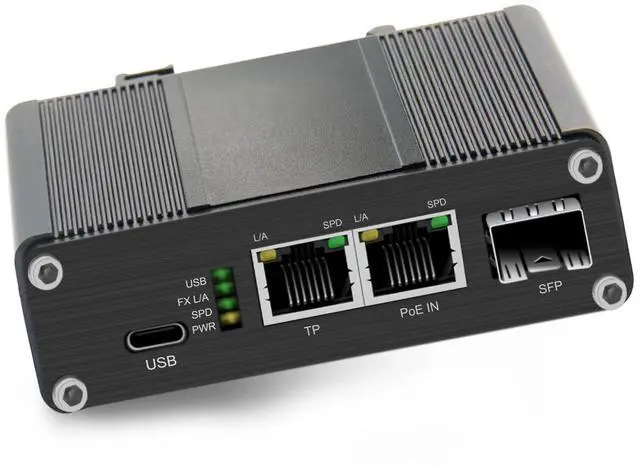

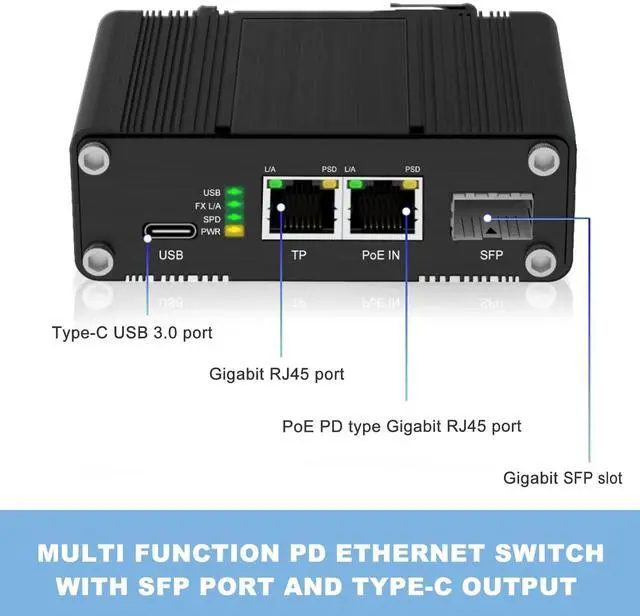

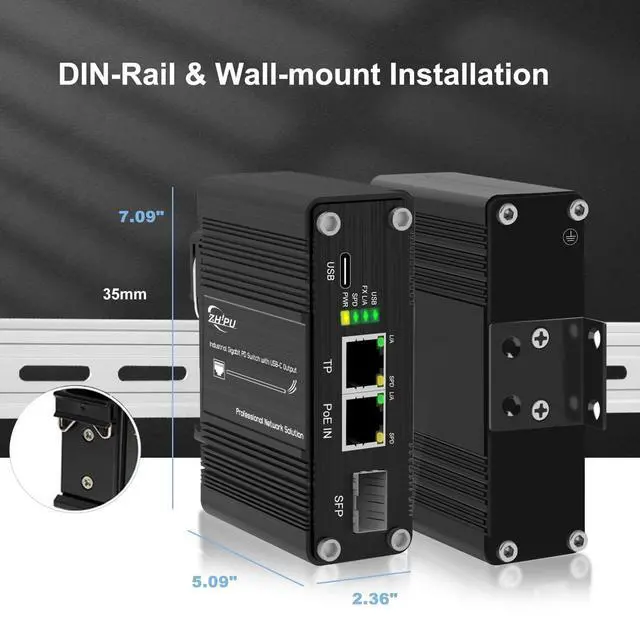

The additional 100Base-FX/1000Base-X self-adaption SFP port can extend the RJ-45 port to long-distance optical fiber interface. The LNK-GE-USB-PD product is suitable for 35mm DIN rail installation. An additional L-shaped bracket can be used to replace the DIN rail plate, so the user can install the switch on the wall or a flat surfaceFeaturesSupported standard: USB 2.0 / 3.0, USB PD 2.0, IEEE 802.3 10Base-T /100Base-TX / 1000Base-T, IEEE 802.3 u 100Base-FX, IEEE 802.3 z 1000Base-X, IEEE 802.3 bt, IEEE 802.3 atUSB PD 3.0 charging protocol compatible1x Type-C USB 3.0 port1x 10/100/1000M RJ-45 port1x PoE PD 10/100/1000M RJ-45 port1x 100Base-FX / 1000Base-X auto detection SFP portSupports DIN-Rail and Wall-mount installationInterfaceUSB Port-USB 2.0 -USB 3.0 -USB PD 2.0 -USB PD 3.0 compatibleEthernet
Port: 2 x
RJ45USB Port: 1 x
Type-COptical Port: 1 x SFP 1000Base-X or 100Base-FX (auto detection) USB PD

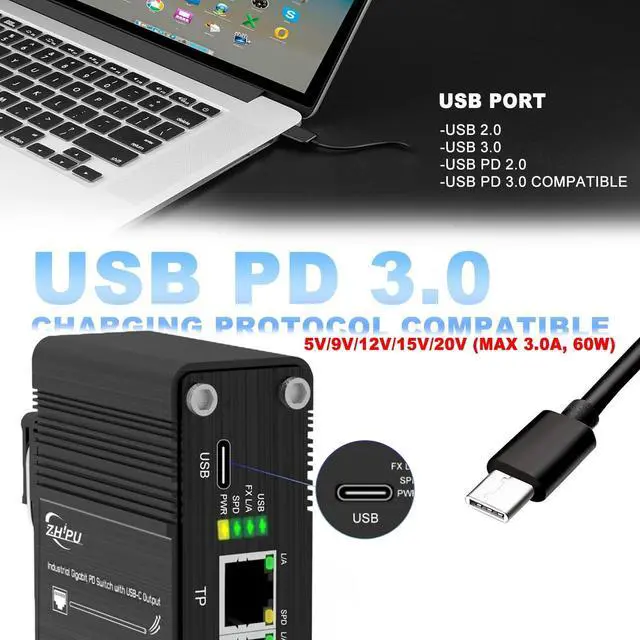

Charging Protocol: 5V/9V/12V/15V/20V (Max 3.0A, 60W)Dimensions
(WxDxH): 95 x 70 x 30 mmWeight: 0.25K
gCasing: Aluminum
CaseMounting Options: DIN-Rail / Wall-mountPackage contentsMini Industrial Gigabit Ethernet PD Switch with Type-C Output x1L-shaped Wall Mount Bracket x1User manual x1
