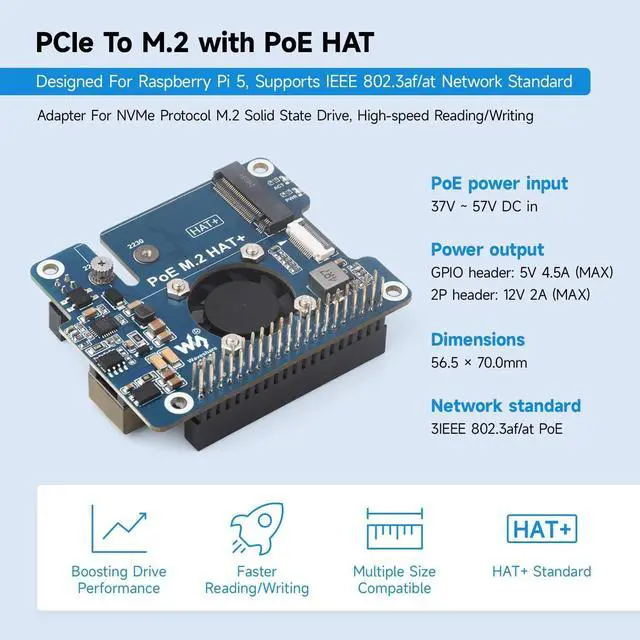

KLAYERS PCIe to M.2 Expansion Board with PoE, PI5 Design, NVMe SSD Support, IEEE 802.3af/at, HAT+ Standard, Compatible with 2230/2242 M.2 SSDs for High-Speed Performance
- PoE Power Input & Output: Supports DC input of 37V ~ 57V for PoE, with GPIO header providing 5V 4.5A (MAX) and 2P header offering 12V 2A (MAX) power output.
- Compact & Compatible Design: Product size is 56.5 70.0 mm; designed based on Raspberry Pi 40-pin GPIO interface and includes a top-mounted header for easy connection with other Raspberry Pi expansion boards.

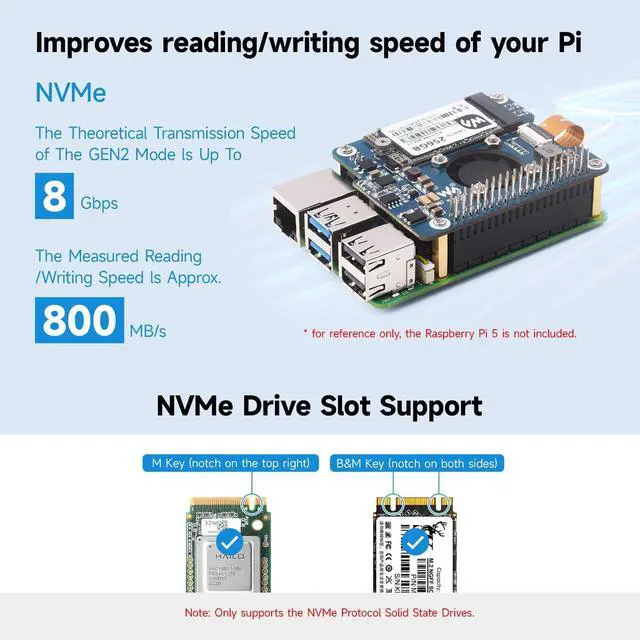

- NVMe SSD Support & Expansion: Compatible with 2230/2242 M.2 SSDs, supports NVMe protocol, Gen2/Gen3 modes, and enables SSD boot for Raspberry Pi 5.

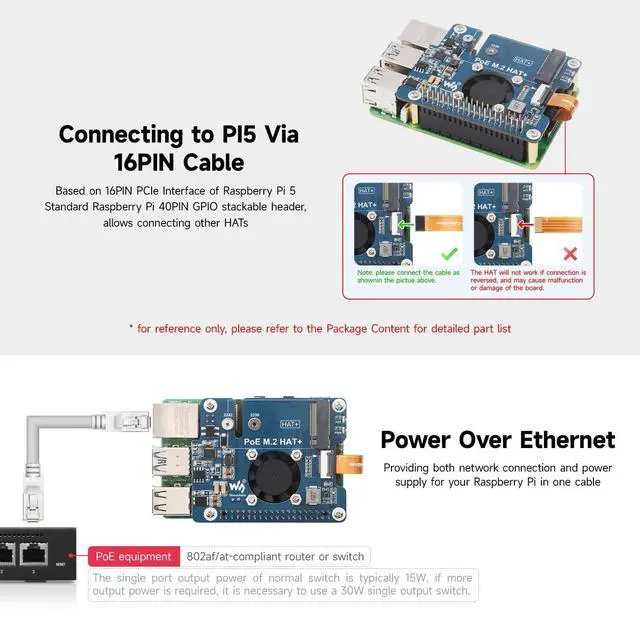

- PoE Ethernet Power: Supports IEEE 802.3af/at PoE, allowing Raspberry Pi 5 to achieve both power and network connectivity with a single Ethernet cable.
- Enhanced Cooling & Power Management: Includes onboard 5V and 12V headers with a total output of up to 25W, an active cooling fan to accelerate heat dissipation, and onboard LED indicators for clear device status monitoring.
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PoE Power
Input & Output: Supports DC input of 37V ~ 57V for PoE, with GPIO header providing 5V 4.5A (MAX) and 2P header offering 12V 2A (MAX) power output. ^^ Compact &
Compatible Design: Product size is 56.5 70.0 mm; designed based on Raspberry Pi 40-pin GPIO interface and includes a top-mounted header for easy connection with other Raspberry Pi expansion boards. ^^ NVMe SSD
Support & Expansion: Compatible with 2230/2242 M. 2 SSDs, supports NVMe protocol, Gen2/Gen3 modes, and enables SSD boot for Raspberry Pi 5.
^^ PoE Ethernet Power: Supports IEEE 802.3 af/at PoE, allowing Raspberry Pi 5 to achieve both power and network connectivity with a single Ethernet cable. ^^ Enhanced Cooling &
Power Management: Includes onboard 5V and 12V headers with a total output of up to 25W, an active cooling fan to accelerate heat dissipation, and onboard LED indicators for clear device status monitoring.
Input & Output: Supports DC input of 37V ~ 57V for PoE, with GPIO header providing 5V 4.5A (MAX) and 2P header offering 12V 2A (MAX) power output. ^^ Compact &
Compatible Design: Product size is 56.5 70.0 mm; designed based on Raspberry Pi 40-pin GPIO interface and includes a top-mounted header for easy connection with other Raspberry Pi expansion boards. ^^ NVMe SSD
Support & Expansion: Compatible with 2230/2242 M. 2 SSDs, supports NVMe protocol, Gen2/Gen3 modes, and enables SSD boot for Raspberry Pi 5.
^^ PoE Ethernet Power: Supports IEEE 802.3 af/at PoE, allowing Raspberry Pi 5 to achieve both power and network connectivity with a single Ethernet cable. ^^ Enhanced Cooling &
Power Management: Includes onboard 5V and 12V headers with a total output of up to 25W, an active cooling fan to accelerate heat dissipation, and onboard LED indicators for clear device status monitoring.
