SpeedyFiberTX 1-Pack 3 Meter 8 Fiber Low Loss MPO Trunk Cable for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4, 200G QSFP56 SR4 Transceivers^^ Type-B Polarity^^ OM4 Fiber^^ 3.0mm Aqua Plenum OFNP Jacket

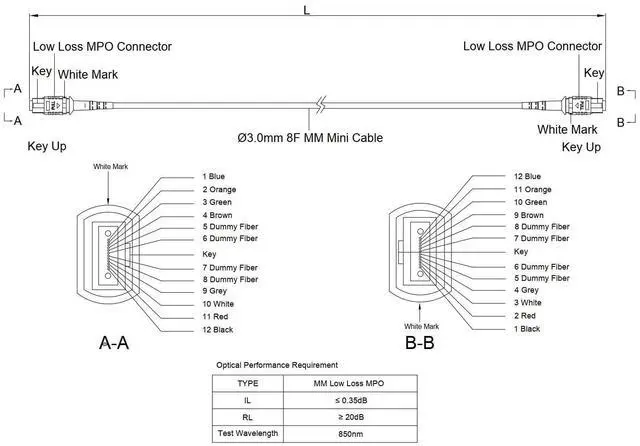

Durable Plug and Play Low Loss non-pinned MPO/female to MPO/female
Type-B Polarity (Key-Up to Key-Up)
3.0mm Aqua Fire Retardant Plenum Jacket
MTP Connector Compatible
Cable Made with Industry-leading Laser-optimized Multimode OM4 50/125 Fiber and UL Certified Fire Retardant Plenum OFNP Cable Jacket
UL Certified Fire Retardant Plenum Cable Compound Materials

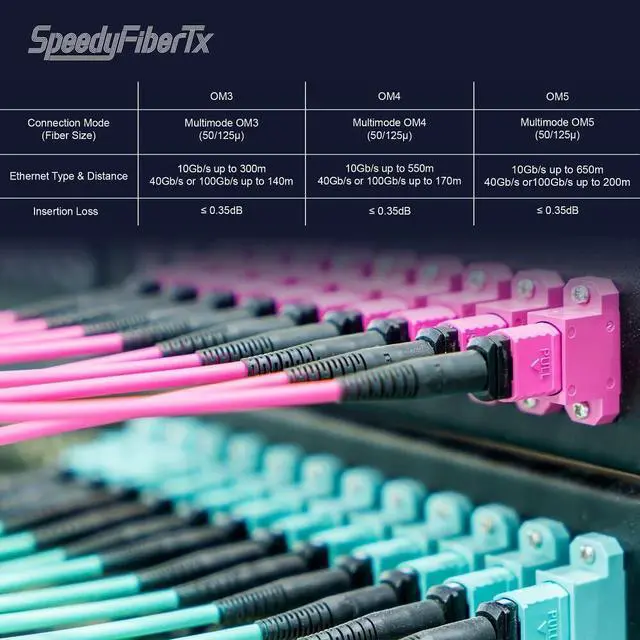

OM4 Fiber Completely Backwards Compatible with OM3 Fiber
High Quality 8-core Fibers
0.20dB Typical Insertion Loss
0.35dB Max Insertion Loss
7.5mm Minimum Bend Radius
Optimized for 40G QSFP+ SR4/CSR4, 100G QSFP28 SR4, 200G QSFP56 SR4 Transceiver Direct Connection
MPO/MTP Compatible Cabling System
Patch Panel Cabinet, FTTH, EPON Application
High-density Data Centers
High Quality Guarantee: 100% Inspection and Test on Insertion Loss and Return Loss

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

SpeedyFiberTX 8 Fiber Low Loss Non-Pinned MPO to MPO Trunk Cable Patch Cable, Type-B, Key-Up to Key-Up, Laser-optimized OM4 Fiber, 3.0 mm Aqua Fire Retardant Plenum OFNP Cable Jacket ^^ MTP CompatibleSpecifications Insertion Loss 0.35 (dB) Return Loss 20 (dB) Operating Temperature -10C to +70C Operating Wavelength 850nm and 1300nm 10G Ethernet Distance 400m at 850nm 40/100G Ethernet Distance 150m at 850nm 200G Ethernet Distance 100m at 850nm Compliance UL, CE, IEC, TIA, RoHSFeatures and Benefits Lightweight 3.0 mm UL Certified Fire Retardant Plenum OFNP Cable Jacket Pre-terminated with durable Low Loss MPO connectors and ready for deployment Snap-in strain-relief clips provide easier cable management Every termination is tested to ensure the quality in network performance
