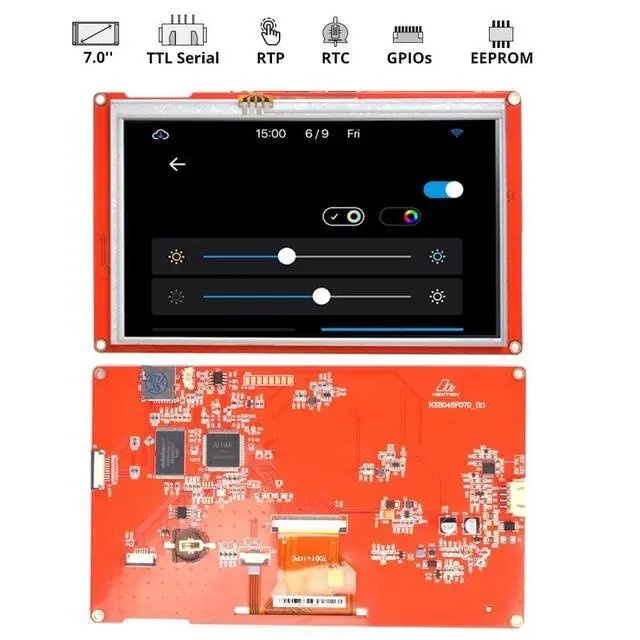

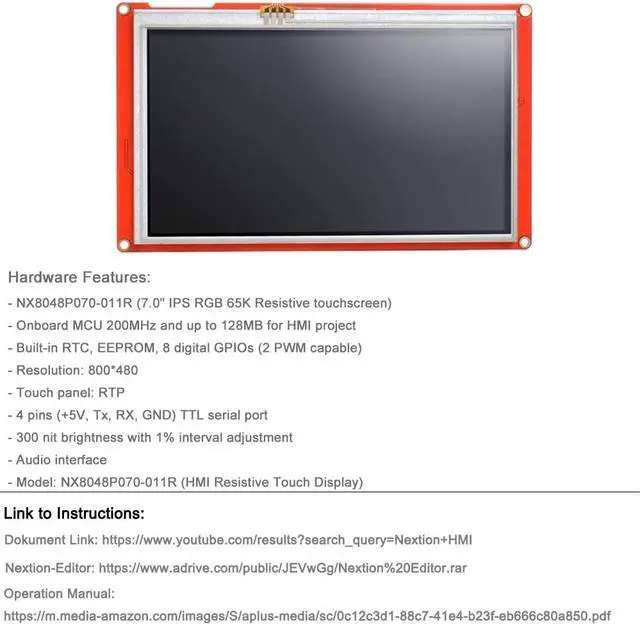

Ferwooh 7.0" NX8048P070 Nextion Intelligent HMI USART UART Serial TFT LCD Display Module Resistive Touch Screen Pannel Resistive LCD Touchscreen (NX8048P070-011R)

Nextion is a Human Machine Interface (HMI) solution that combines an integrated processor and memory touch display with Nextion Editor software for project development with HMI GUI. With the NEXTION Editor software, you can quickly develop the HMI GUI by combining components (graphics, text, buttons, sliders, etc. ) ^^ The Nextion HMI display connects to the peripheral MCU via TTL Serial (5V, TX, RX, GND) to provide event notifications for the peripheral MCU to act on. ^^ Intelligent Series products have more powerful hardware in terms of MCU, Flash memory and SRAM compared to Basic Series and Enhanced Series.

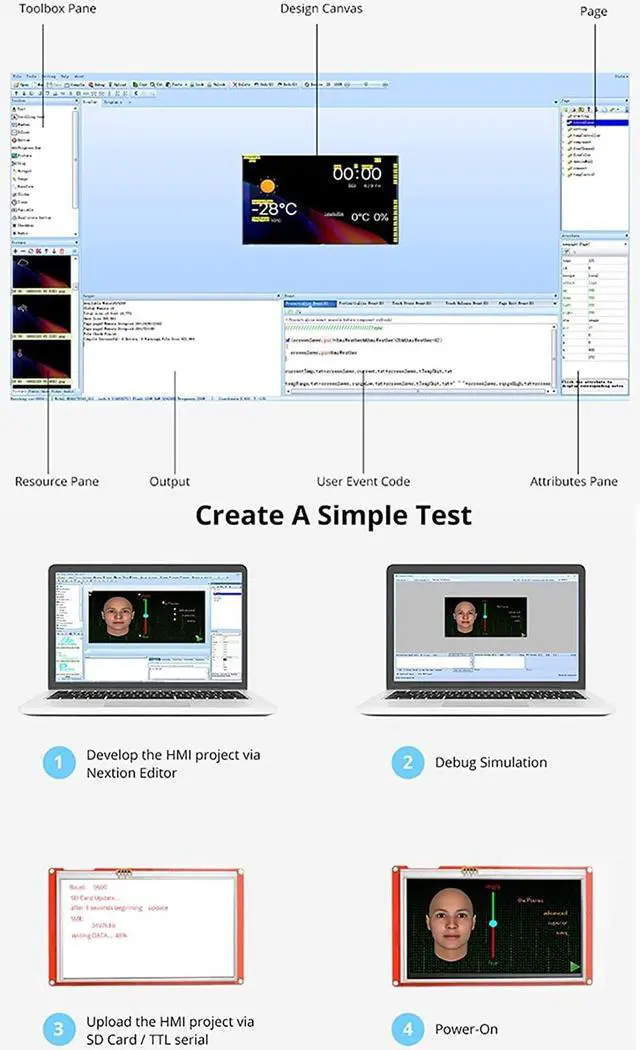

You can develop the HMI GUI project via free latest Nextion Editor software version 0.58 or higher. ^^ What's more and new? The audio, video and animation playback capabilities enrich the user's HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent components, page loading effects, move and drag components, etc.

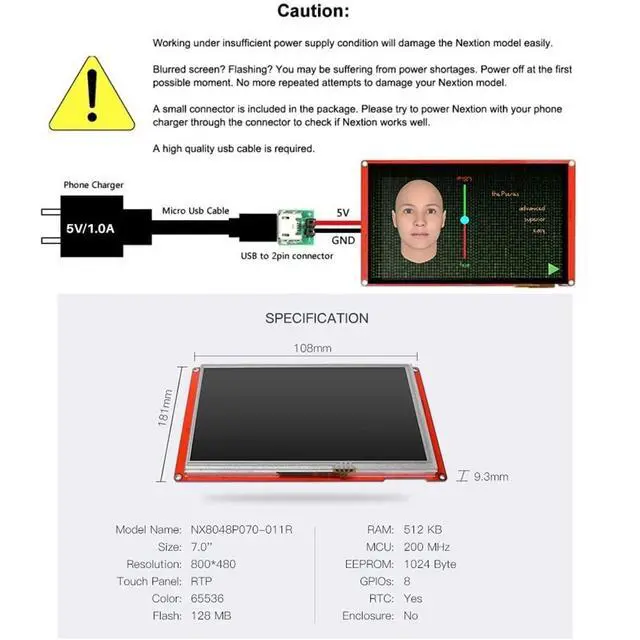

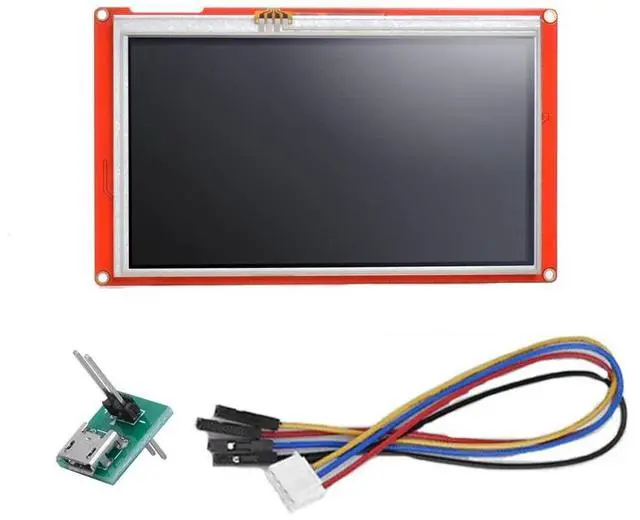

^^ Note: With the small power supply test board and connection cable inside the package, you can test whether the power supply is sufficient or not. Check out the image below to use it.
