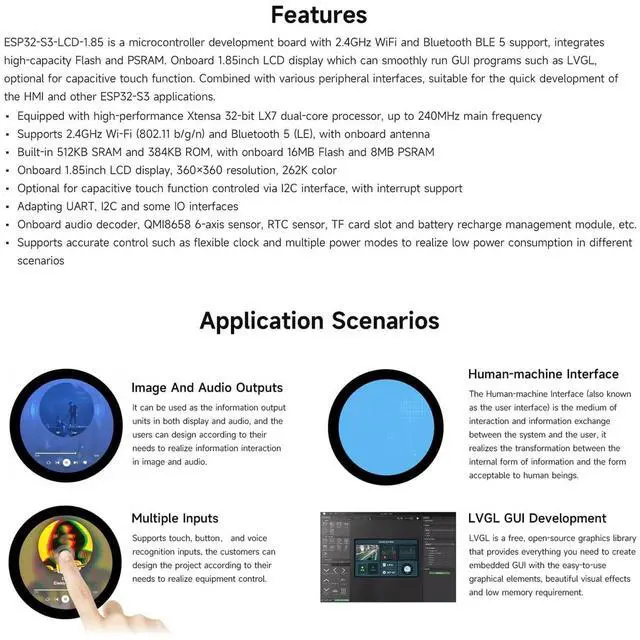

S3 Development Board, 1.85 Inch Capacitive Round Touch Display Development Board, 360x360, 32bit 2 Core Processor, Support BT and Wi Fi, Type C Interface
- DOUBLE CORE PROCESSOR: Round display development board equipped with high performance for Xtensa 32 bit LX7 double core processor, up to 240MHz main frequency
- ANTENNA AND MEMORY: Round display development board supports 2.4GHz Wi Fi (802.11 b/g/n) and BT 5 (LE), with onboard antenna. Built in 512KB RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM

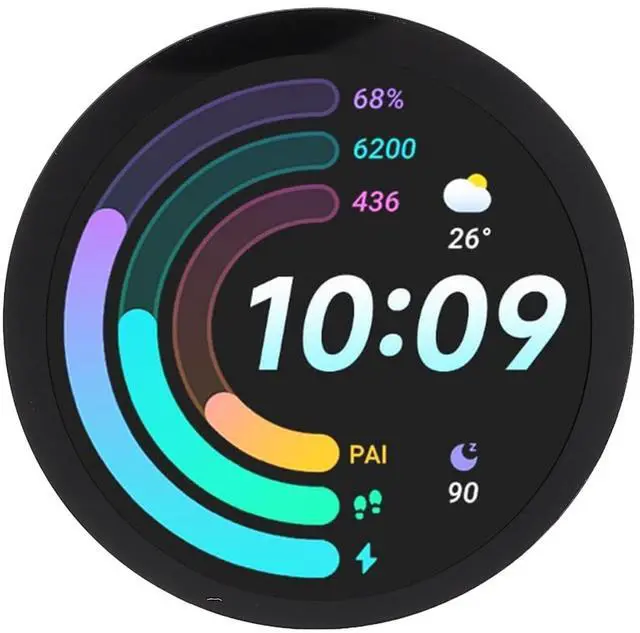

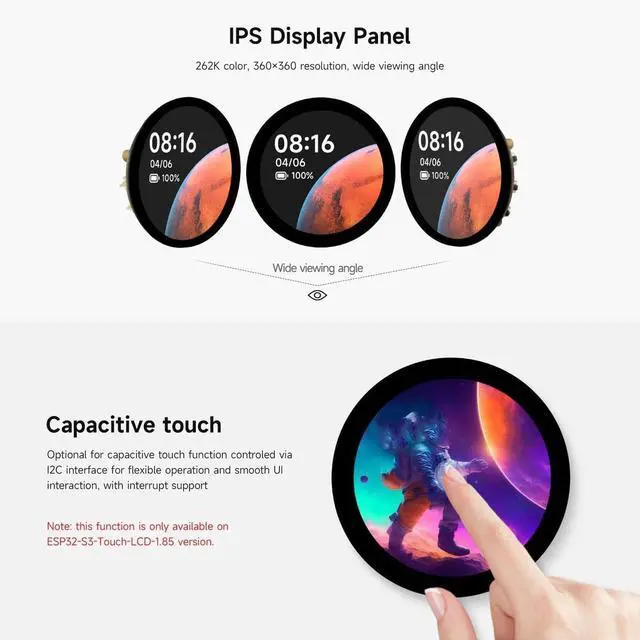

- TECHNICAL PARAMETERS: Onboard 1.85inch LCD display, 360x360 resolution, 262K color. Capacitive touch function controled via I2C interface, with interrupt support, adapting UART, I2C and some IO interfaces

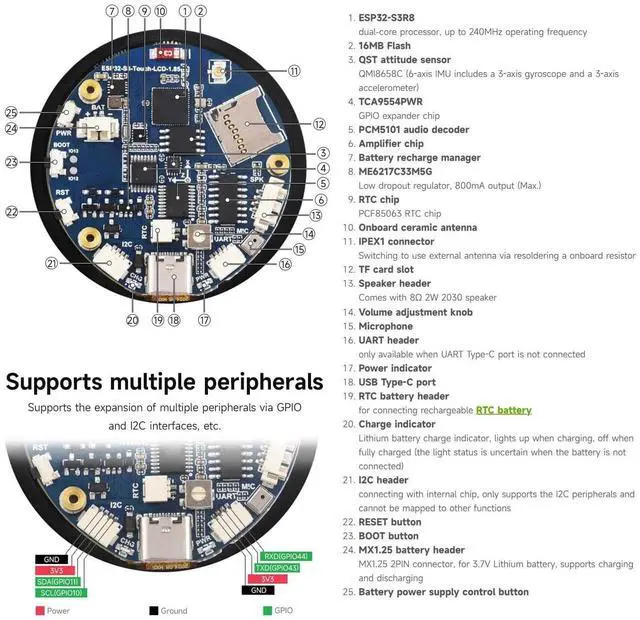

- WHAT IS INCLUDED: 1.85in round display development board onboard sound decoder, microphone, for QMI8658 6 axes sensor, for RTC sensor, very versatile
- ACCURATE CONTROL AND LOW POWER CONSUMPTION: Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
DOUBLE CORE PROCESSOR: Round display development board equipped with high performance for Xtensa 32 bit LX7 double core processor, up to 240MHz main frequency ^^
ANTENNA AND MEMORY: Round display development board supports 2.4GH z Wi Fi ( 802.11 b/g/n) and BT 5 (LE), with onboard antenna. Built in 512KB RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM ^^
TECHNICAL PARAMETERS: Onboard 1.85 inch LCD display, 360x360 resolution, 262K color. Capacitive touch function controled via I2C interface, with interrupt support, adapting UART, I2C and some IO interfaces ^^
WHAT IS INCLUDED: 1.85 in round display development board onboard sound decoder, microphone, for QMI8658 6 axes sensor, for RTC sensor, very versatile ^^ ACCURATE CONTROL AND LOW POWER CONSUMPTION: Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
ANTENNA AND MEMORY: Round display development board supports 2.4GH z Wi Fi ( 802.11 b/g/n) and BT 5 (LE), with onboard antenna. Built in 512KB RAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM ^^
TECHNICAL PARAMETERS: Onboard 1.85 inch LCD display, 360x360 resolution, 262K color. Capacitive touch function controled via I2C interface, with interrupt support, adapting UART, I2C and some IO interfaces ^^
WHAT IS INCLUDED: 1.85 in round display development board onboard sound decoder, microphone, for QMI8658 6 axes sensor, for RTC sensor, very versatile ^^ ACCURATE CONTROL AND LOW POWER CONSUMPTION: Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios
