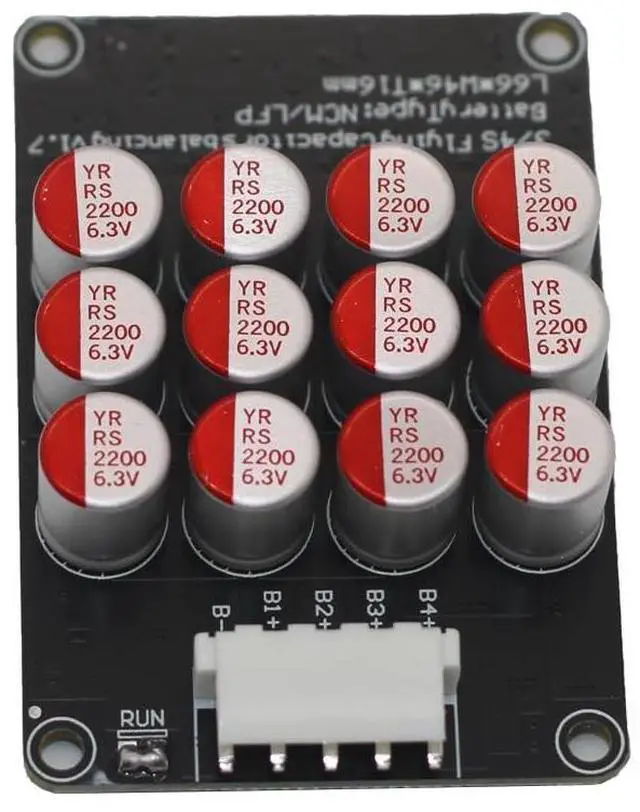

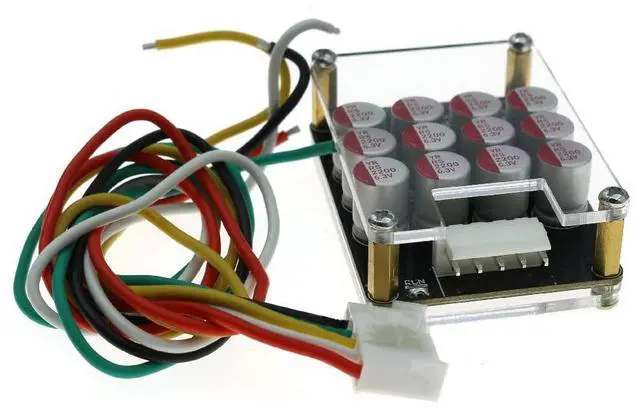

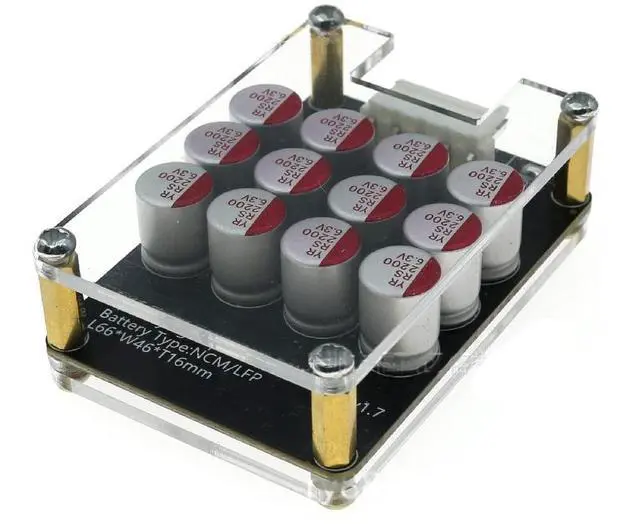

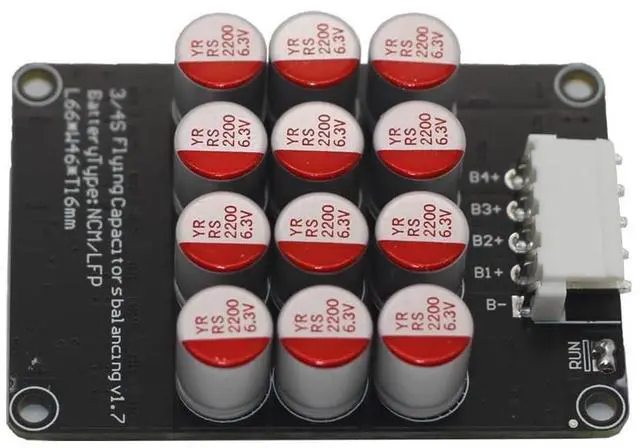

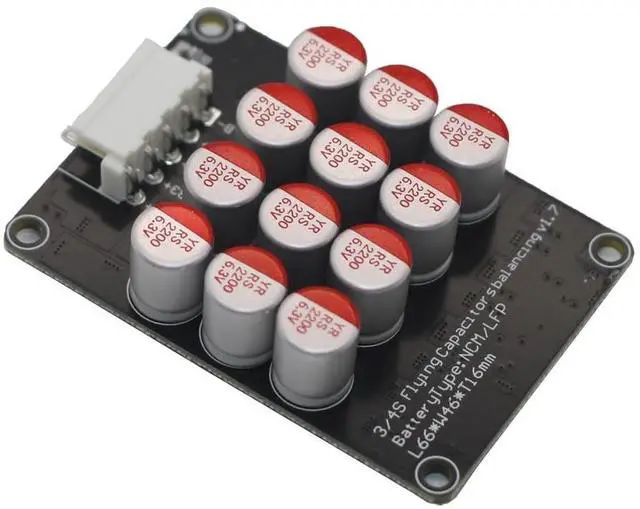

Mustpoint 5.5A BMS 4S Active Balancer Board Li-ion Lifepo4 LTO Battery Capacitor Equalizer Power Transfer with Protective Case
- 100% brand new and high quality.
- Each part is tested before shipment.
- 5.5A BMS 4S Active Balancer Board Li-ion Lifepo4 LTO Battery Capacitor Equalizer Power Transfer with Protective Case.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Li-ion/Lifepo4 /Lipo version1Balance start voltage: 3.0V - 4.2V 2Balance termination voltage: 2.9V (into undervoltage sleep state) 3Maximum
Balance current: The whole group error is 0.1V 1A; 0.5V 3.5A; 1.0V 5.5A (18awg 30CM cable test) 43S quiescent current
Full state: ( 4.2 v*3cell) 12.6V 12mA54S quiescent current
Full state: ( 4.2 v*4cell) 16.5V 15mA67S quiescent current
Full power state: ( 4.2 v*7cell) 29.4V 15mA78S quiescent current
Full power state: ( 4.2 v*7cell) 33.6V 14mA8Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance.
9Working environment temperature: 0-60
degreesLTO version1Balance start voltage: 2.0V - 2.8V 2Balance termination voltage: 1.9V (into undervoltage sleep state) Maximum
Balance current: The whole group error is 0.1V 1A; 0.5V 3.5A; 1.0V 5.5A (18awg 30CM cable test) 35S LTO quiescent current
Full state: 2.8 v*5cell 14V 12mA46S LTO quiescent current
Full state: 2.8 v*6cell 16.8V 15mA5Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance.
6Working environment temperature: 0-60 degrees
Balance current: The whole group error is 0.1V 1A; 0.5V 3.5A; 1.0V 5.5A (18awg 30CM cable test) 43S quiescent current
Full state: ( 4.2 v*3cell) 12.6V 12mA54S quiescent current
Full state: ( 4.2 v*4cell) 16.5V 15mA67S quiescent current
Full power state: ( 4.2 v*7cell) 29.4V 15mA78S quiescent current
Full power state: ( 4.2 v*7cell) 33.6V 14mA8Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance.
9Working environment temperature: 0-60
degreesLTO version1Balance start voltage: 2.0V - 2.8V 2Balance termination voltage: 1.9V (into undervoltage sleep state) Maximum
Balance current: The whole group error is 0.1V 1A; 0.5V 3.5A; 1.0V 5.5A (18awg 30CM cable test) 35S LTO quiescent current
Full state: 2.8 v*5cell 14V 12mA46S LTO quiescent current
Full state: 2.8 v*6cell 16.8V 15mA5Whether external power supply is required: no external power supply is required, and the internal energy transfer of the battery is used to transfer and the entire set batteries pack in balance.
6Working environment temperature: 0-60 degrees
