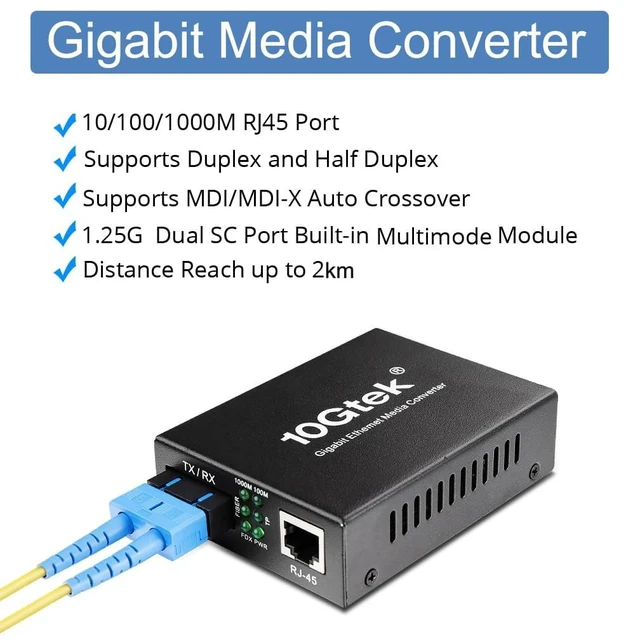

Gigabit SC to RJ45 Fiber Media Converter, Multimode Fiber to Ethernet Converter, 10/100/1000Mbps RJ45 Port to 1000Mbps Multi-Mode Fiber Dual SC Port, MMF, 1310nm, up to 2km, Auto-Negotiation
- What You Get: 1x Gigabit Multimode SC to RJ45 Media Converter, 1x external power supply, 1x Product Manual; We provide 24/7 Customer Service, 30 Days Free-returned, 1 Year Free Warranty and Lifetime Technology Support
- 1G Dual SC Fiber Port: Built-in 1000Mbps multimode Fiber Module with dual SC port, link multimode dual SC Fiber cable (OM3/OM4), MMF, 850nm, up to 2 km
- 1G RJ45 Ethernet Port: RJ45 Port provide 1000Mbps stable Ethernet connection, downward compatible with 10/100 Mbps; Fiber to Ethernet converter supports Full/ Half Duplex, MDI/MDI-X auto crossover, and 9K-byte jumbo frames
- Visualized LED Indicators: Easy-to-view LED indicators provide status to monitor network activity easily; Media Converter support wide power supply voltage (100V-240V), operating voltage is 5VDC /1.0A
- Sturdy and Durable: Superior chip provides lightning protection and anti-interference ability; 2 sides Cooling holes and Metal Case for better heat dissipation performance; Complies with IEEE 80
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Expand Your Network with EaseDesigned to extend your existing Gigabit Ethernet infrastructure, this media converter is the perfect solution for scaling your network efficiently.
Main Features: Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 xAuto negotiation function allows UTP port to auto select 10M, 100M or 1000MEthernet port supports MDI/MDI-X auto crossoverExtends distances up to 2km (multi mode fiber) Auto MDI/MDI-X support on RJ-45 portSupport Full Duplex and Half DuplexStatus LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status1Mbit RAM for data bufferSupports jumbo frame size 9K bytesOptical
Port: 1310nm
Multi modeConnectors: Dual SC connectorEthernet
Port:
Connectors: RJ-45
ConnectorLED Indicators: FX, TX, Link/Act(Left/Right), FDX, PWRFX: Light on when fiber speed is 1000Mbps, else
light offTX: Light on when TP speed is 1000Mbps, else
light offLink/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receivingFDX: Light on when TP full-duplex mode is active, light off when
TP half-duplex mode is activePWR: Light on when DC power on, else
light offSpecifications: Output
voltage: 5VDC
1.0AP ower dissipation: 3
wattsHousing: Metal
enclosureDimensions: 93 x 71 x 27mm (D x W x
H) Weight: 0.5 kgOperating
Temperature: 0C to 60CStorage
Temperature: -20C
to 70CWarranty: 1-year
Main Features: Complies with IEEE 802.3, IEEE 802.3 u, IEEE 802.3 z, IEEE 802.3 ab, IEEE 802.3 xAuto negotiation function allows UTP port to auto select 10M, 100M or 1000MEthernet port supports MDI/MDI-X auto crossoverExtends distances up to 2km (multi mode fiber) Auto MDI/MDI-X support on RJ-45 portSupport Full Duplex and Half DuplexStatus LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status1Mbit RAM for data bufferSupports jumbo frame size 9K bytesOptical
Port: 1310nm
Multi modeConnectors: Dual SC connectorEthernet
Port:
Connectors: RJ-45
ConnectorLED Indicators: FX, TX, Link/Act(Left/Right), FDX, PWRFX: Light on when fiber speed is 1000Mbps, else
light offTX: Light on when TP speed is 1000Mbps, else
light offLink/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receivingFDX: Light on when TP full-duplex mode is active, light off when
TP half-duplex mode is activePWR: Light on when DC power on, else
light offSpecifications: Output
voltage: 5VDC
1.0AP ower dissipation: 3
wattsHousing: Metal
enclosureDimensions: 93 x 71 x 27mm (D x W x
H) Weight: 0.5 kgOperating
Temperature: 0C to 60CStorage
Temperature: -20C
to 70CWarranty: 1-year
