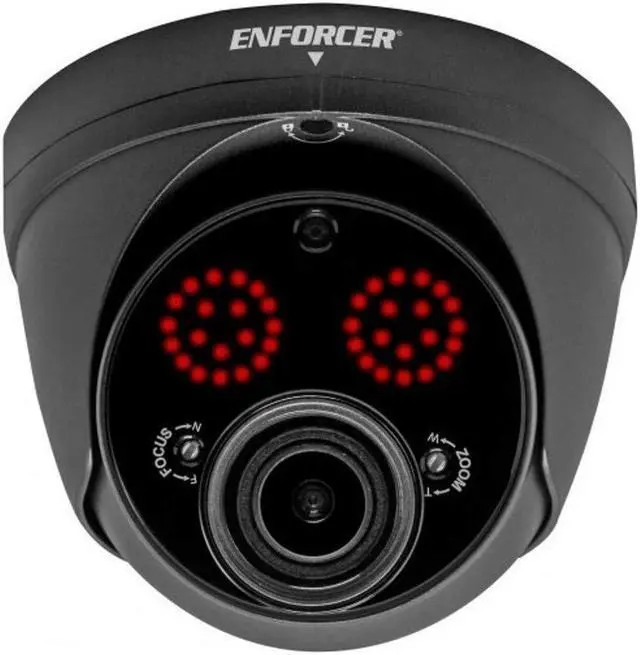

Seco-Larm EV-Y2501-AMGQ 4-in-1 HD Analog Varifocal Turret Camera, 2.8~12mm Lens, 2592x1944 Resolution, 1/2.7" 5MP CMOS, DWDR/2D-NR, TVI/CVI/AHD/Analog Format, 40 SMT IR LEDs, 12VDC, Gray Housing

Seco-Larm EV-Y2501-AMGQ 4-in-1 HD Analog Varifocal Turret Camera, 2.8 ~12mm Lens, 2592x1944 Resolution, 1/ 2.7" 5MP CMOS, DWDR/2D-NR, TVI/CVI/AHD/Analog Format, 40 SMT IR LEDs, 12VDC, Gray Housing Key Features 5MP Resolution ICR Module Joystick OSD control 2DNR (Digital Noise Reduction) D-WDR (Digital Wide Dynamic Range) Heavy-duty vandal-resistant design Rugged, weatherproof (IP66) construction Split-glass design eliminates IR reflection Cables concealed in bracket to prevent tampering

Specifications

Housing color: Gray
Formats: TVI (Default) / CVI / AHD /
Analog (CVBS) CMOS: 1/ 2.7" 5MP CMOS
Resolution (HD): 2592x1944
2DNR: Yes
D-WDR: Yes OSD (On-Screen
Display): Yes
Cable OSD control: Yes
Megapixels: 5MP
Lens: 2.8 ~12mm
ICR Viewing Angle: 38deg~138deg # of
IR LEDs: 40 (SMT)
IR Range: Up to 148ft (45m)
FPS: 20FPS
F Stop: 2.0 Minimum illumination -
IR On: 0Lux Minimum illumination -
IR Off: 0.05L ux
S/N Ratio: 35dB
Shutter control: Auto
Gain control: Auto
Operating voltage: 12VDC Current Draw -
IR On: 440mA Current Draw -
IR Off: 80mA
IP Rating: IP66
Operating temperature: -22deg~131degF (-30deg~55degC)
Dimensions: o4-15/16"x4-5/16" (o125x110mm)
Weight: 1-lb, 9.3 -oz (720g)
