Seco-Larm MVE-AN1W1-01Q Enforcer Wireless IR Repeater Kit

Extend the range of remote control across IR transmissions with the Seco-Larm Enforcer Wireless IR Repeater Kit. This signal extension kit greatly increases the range of IR signals between compatible devices, allowing you to remotely operate devices such as audio/visual equipment from further distances. The Wireless IR Repeater Kit improves the performance of IR wireless transmissions and reduces RF interference with frequency hopping technology. Multiple types of IR remotes may communicate with the IR Repeater Kit. The IR Repeater Kit's receiver and transmitter both must be plugged into an AC outlet. Place the transmitter facing the device to be controlled and place the receiver facing outward so it may receive signals from your IR remote.

A Blue LED will shine when an IR signal is received. In installations where you want the transmitter and receiver to be hidden, connect the included IR emitter to your receiver and place the emitter in an area to receive signals from your remote. The emitter will forward the signals to the main IR receiver which will send the signals to the IR transmitter and finally to your controlled device.

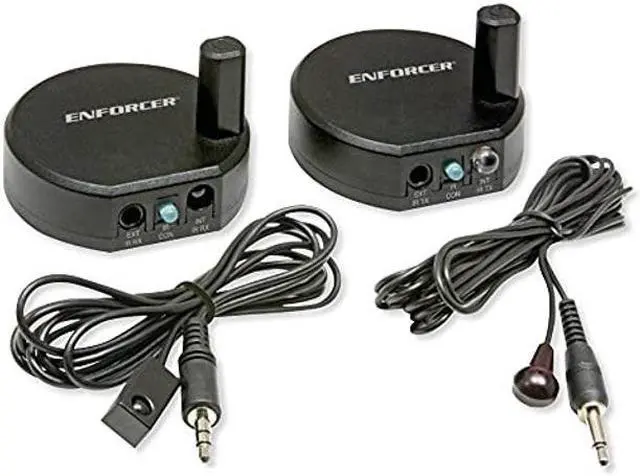

Contents: IR Transmitter, IR Receiver, Wired IR receiver, Wired IR emitter, 2x 5VDC Power adapters, Mounting tape for wired IR receiver, 2x Mounting tape for wired IR emitter,
Manual.

Specifications

: LED
Indicators: IR Confirmation.
Operating Voltage: 5 VDC.
IR Receiver Frequency: 35 degrees Off Axis.
IR Emitter Frequency: 20 to 60 kHz.
IR Emitter Angle: 11 degrees Off Axis.
Power: 1.3 mm Coaxial center-pin-positive.
Wired IR Receiver: 1/8 in; 3.5 mm, TRS Mini-plug.
Wired IR Emitter: 1/8 in; 3.5 mm, Mono mini-plug.
Maximum Extended Range: 656 ft; 200m.
Operating Humidity: 10~90 percent.
Operating Temperature: -4 to 140 degrees F; -20 to 60 degrees C.
Power Supply: 5VDC/500mA.
Wired IR Receiver: 5 ft ( 1.5 m).
Wired IR Emitter: 10 ft (3m).
RF Frequency: 915MHz.
Warranty: 2 year Limited.
Manufacturer Part #: MVE-AN1W1-01Q.
