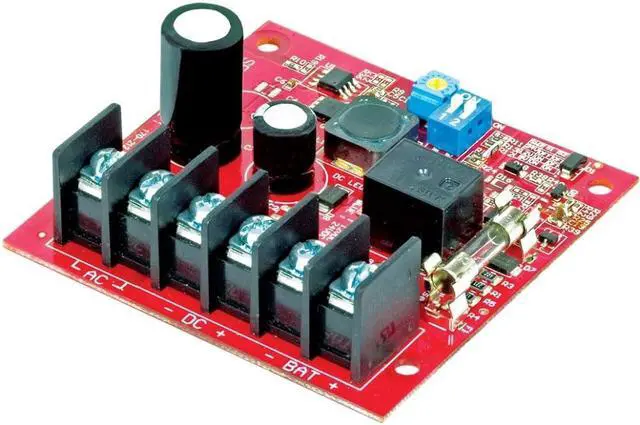

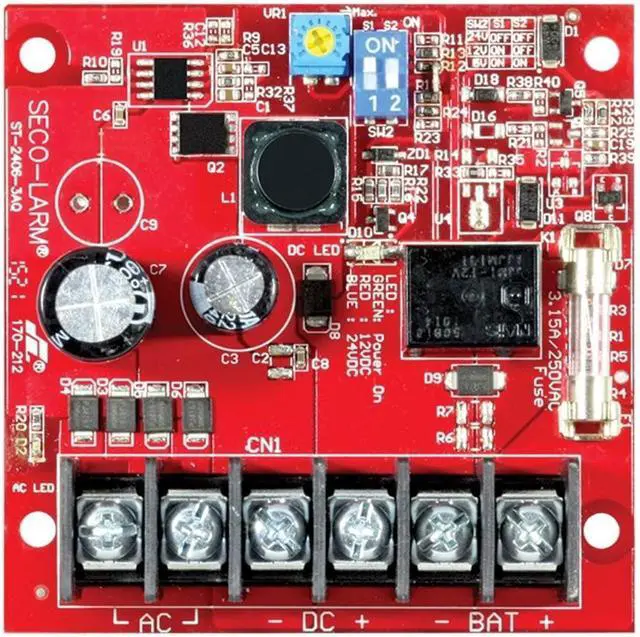

Seco-Larm ST-2406-3AQ Enforcer Power Supply Charger, 2.5A Continuous, 3A Peak
- Automatically recharges backup batteries (not included)
- Built-in short-circuit protection
- Fused output for a regulated charge
- Automatic switch-over to backup battery if main power is lost
- LEDs indicate power status
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Seco-Larm ST-2406-3AQ Power Supply/Charger, 2.5A Continuous, 3.0A Peak, Selectable (6, 12, 24 VDC) Voltage Output, Regulated and Filtered Output Voltage, Short Circuit Protection, Heat-sink-free Design
SECO-LARM's ST-series of power supplies/chargers ensure that alarm systems and access control systems have enough power to do their job. Protected by fused outputs, input polarity protection diodes, and backup battery polarity reverse protection, these power supplies/chargers can be used to maximize the security and efficiency of nearly any alarm or access control installation.
Key Features
- Selectable (6, 12, 24 VDC) voltage output
- Regulated and filtered output voltage
- Short circuit protection
- Thermal protection and compensation
- Built-in backup battery charger
- Switches to backup battery automatically in case of power loss
- Fused protection for battery charger
- 2 LEDs to indicate AC power input and DC power output status
- Compatible with lead acid or gel-type rechargeable battery
- Battery leads and foam tape included
- High efficiency at full load
- Heat-sink-free design
- Low battery cutoff when battery voltage drops below 20%
- Operating Voltage: 6, 12, 24 VDC
- Status LEDs: AC
Input: Green, DC Output Red Red/Blue (Blue indicates 24V)
- Current (Continuous): 2.5A
- Current (Peak): 3.0A
- Output Current: 6V = 100mA, 12V = 220mA, 24V = 450mA
- Master Fuse: 5 Amp
- Low Battery Cutoff: When battery voltage is <20 % of set ouput voltage
- Operating Temperature: -4°~149°F (-20°~65°C)
- Dimensions: 2-7/8" x 2-7/8" x 1-3/8" (73 x 64 x 35mm)
SECO-LARM's ST-series of power supplies/chargers ensure that alarm systems and access control systems have enough power to do their job. Protected by fused outputs, input polarity protection diodes, and backup battery polarity reverse protection, these power supplies/chargers can be used to maximize the security and efficiency of nearly any alarm or access control installation.
Key Features
- Selectable (6, 12, 24 VDC) voltage output
- Regulated and filtered output voltage
- Short circuit protection
- Thermal protection and compensation
- Built-in backup battery charger
- Switches to backup battery automatically in case of power loss
- Fused protection for battery charger
- 2 LEDs to indicate AC power input and DC power output status
- Compatible with lead acid or gel-type rechargeable battery
- Battery leads and foam tape included
- High efficiency at full load
- Heat-sink-free design
- Low battery cutoff when battery voltage drops below 20%
Specifications
- Operating Voltage: 6, 12, 24 VDC
- Status LEDs: AC
Input: Green, DC Output Red Red/Blue (Blue indicates 24V)
- Current (Continuous): 2.5A
- Current (Peak): 3.0A
- Output Current: 6V = 100mA, 12V = 220mA, 24V = 450mA
- Master Fuse: 5 Amp
- Low Battery Cutoff: When battery voltage is <20 % of set ouput voltage
- Operating Temperature: -4°~149°F (-20°~65°C)
- Dimensions: 2-7/8" x 2-7/8" x 1-3/8" (73 x 64 x 35mm)
