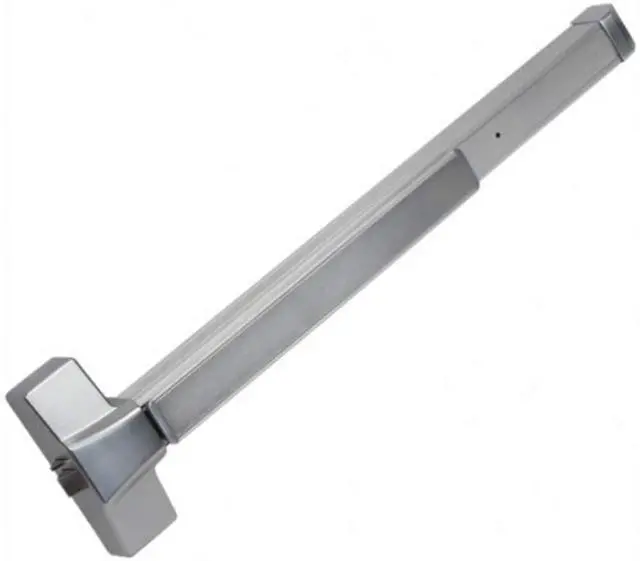

Seco-Larm SD-962AR-36G Rugged Grade 1 Rim-Type Exit Device, Push-to-Exit Bar Fits Doors from 33" (84cm) to 48" (122cm) Wide, Heavy-Duty ANSI Grade 1 Steel Construction, Reversible Non-Handed Design

Seco-Larm SD-962AR-36G Rugged Grade 1 Rim-Type Exit Device, Push-to-Exit Bar Fits Doors From 33" (84cm) to 48" (122cm) Wide, Heavy-Duty ANSI Grade 1 Steel Construction, Reversible Non-Handed DesignKey Features Pushbar is UL Listed for U. S. and Canada Heavy-duty ANSI Grade 1 steel construction Allows exit from inside while locked from outside Reversible non-handed design UL Listed, ANSI/BHMA A 156.3 - (2008) requirements for Grade 1, UL 305 For metal or wood doors up to 1-3/4" (44mm) thick Separate deadlocking latch prevents the use of credit cards or similar means to open the latch bolt Allen-type 1/4-turn dogging lock allows the exit device to be unlocked for extended periods of time Includes all needed hardware for typical installations Works with standard external door handle/lock devices such as the SD-962HL-4A (not included) Fits doors from 33" (84cm) to 48" (122cm) wide

Specifications

Construction: ANSI Grade 1 steel
Door Type: Up to 1-3/4" (44mm) thick, wood or metal
Hand Type: Non-handed
Latch Bolt: Stainless-steel, 3/4" (19mm) throw
Dead Latch: Stainless-steel 5/8" (16mm)
Strike: For 5/8" (16mm) stop
Spring: Stainless steel
Chassis: Plated steel
Cover: Plated zinc cast
Rail Assembly: Aluminum
End Cap: Plated zinc cast
Dogging: Allen-type dogging standard
Dimensions: 33"x8"x2-3/16" (838x203x56 mm)
Weight: 9-lb 12-oz ( 4.4 kg)
