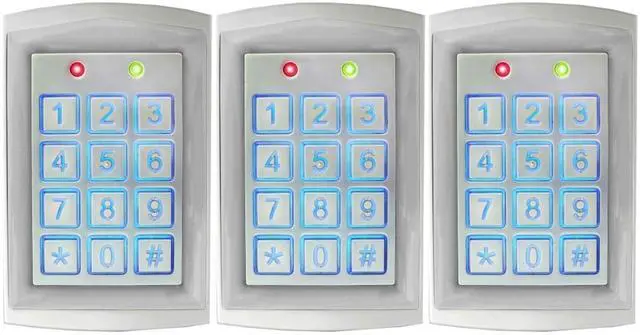

Seco-Larm SK-1323-SDQ Enforcer Sealed Housing Weatherproof Stand-Alone Digital Access Keypads; 12-24 VAC/VDC Operation; 2 Multi-Colored Status LEDs; Backlit Keys (Pack of 3)

Seco-Larm SK-1323-SDQ Enforcer Sealed Housing Weatherproof Stand-Alone Digital Access Keypads; 12-24 VAC/VDC Operation; 2 Multi-colored Status LEDs;
Backlit KeysKey Features: - 12 - 24 VAC/VDC operation- 1, 010 Users (Output # 1: 1000 users, Output # 2: 10 users)- 2 Form C relays, each rated 1 Amp @ 30VDC- Each relay has programmable output time from 1~99 seconds or toggle- Output #2 can be programmed for use with a doorbell- 2 Egress inputs and 1 door sensor input- Backlit keys for easy nighttime use- Two multi-colored status LEDs- Able to mount to a single-gang back box- All features are programmed directly from the keypad, no need for an external programmer- EEPROM memory protects programmed information in case of power loss- Optical tamper for added security- Circuitry is potted with epoxy for outdoor use- IP65 Weatherproof rating, rugged
aluminum constructionSpecifications: - Number of
User Codes: Up to 1010-
Operating Voltage: 12~24 VAC/VDC-
Current Draw - Standby: 64mA@12VDC-
Current Draw - Active: 92~120mA@12VDC- Relay
Outputs (2): 1A@30VDC, Form C, NO/COM/NC-
IP Rating: Weatherproof
IP65- Egress Inputs: 2, N. O.
Ground- Door Sensor Input: N. C.
Ground- Tamper Sensor: Optical-
Keypad LED Life: 60, 000 hours (over 6.8 years)-
Overall Dimensions: 4.72 x 2.99 x 0.86 inches-
Weight: 1.12 pounds
