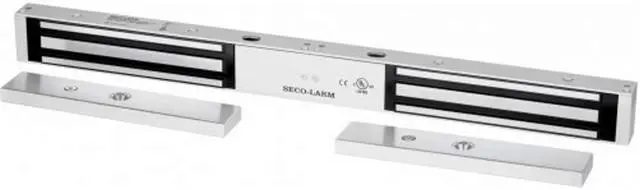

Seco-Larm Enforcer Double Electromagnetic Lock, Bond Sensor, 600 Lbs. (E-941DA-600PQ)

Prevent unauthorized entry through double doors by installing the Seco-Larm Enforcer Double Door Electromagnetic Lock, Bond Sensor (600 Lbs. ). When powered, the electromagnetic lock creates a strong magnetic field and becomes attracted to the steel armature plates that attach to your doors. This strong force prevents anyone from opening the doors. When power is deactivated, the doors can open without any residual magnetism. Housed in anodized aluminum 12 or 24 VDC (selectable) No residual magnetism upon deactivation Built-in MOV surge protection Mounting hardware includedThe Double Door Electromagnetic Lock comes with all the required mounting hardware for a typical installation, including an adjustable mounting bracket and a detachable faceplate.

The lock also features dual-color status LEDs and bond sensors with relays (one per door) to show the locking status of each door:
Green: Door is closed and locked
Red: Door not closed and/or locked
Off: Door
in use/no powerContents: Electromagnet Mounting plate (2) Armature plate (2) Armature screw (4) Steel washers (2) Rubber washer (2) Door spacer (2) Sexnut bolt (4) Guide pins (8) Long self-tapping screws (4) Short self-tapping screws (4) Hex-head mounting screws (4) Tamper caps Allen wrenchTechnical

Details

Holding Force: 600 pounds (272kg)
Operating Voltage: 12 or 24 VDC 10 percent
Current Draw: 500mA at 12VDC, 250mA at 24VDC
Temperature: 14 to 131 F (-10 to 55
C) Magnet Size: 19-11/16 x 1-5/8 x 1 inches (500 x 42 x 25 mm)
Armature Size: 7-1/4 x 1/2 x 1-1/2 inches (185 x 12 x 38 mm)
Certification: UL, ULC, CE
RoHS Compliance: Yes
Weight: 9 pounds (4kg)
Manufacturer Part No: E-941DA-600PQ
