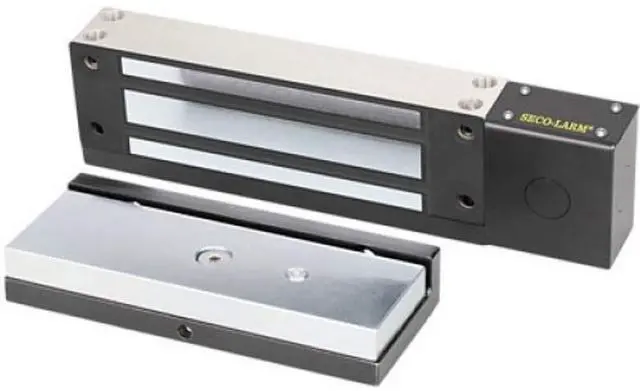

Seco-Larm E-946FC-1K2SQ Electromagnetic Gate Lock with 1,200-lb (544kg) Holding Force, Face/Surface Mount, 12 or 24 VDC Operation, Indoor and Outdoor Use, Mount Vertically or Horizontally

Seco-Larm E-946FC-1K2SQ Electromagnetic Gate Lock with 1, 200-lb (544kg) Holding Force, Face/Surface Mount, 12 or 24 VDC Operation, Indoor and Outdoor Use, Mount Vertically or HorizontallyElectromagnetic Gate Lock with brackets for armature and magnet. The E-946FC-1K2SQ is primarily designed for sliding gates. Key Features For most types of outdoor sliding and swinging electric gates Includes a magnetic lock with brackets for armature and magnet Can be welded or bolted directly to gate Brackets are zinc-plated for corrosion resistance Black finish to match most gates Water-and vandal-resistant attractive stainless-steel finish Maintenance-free, factory-sealed design Fail-safe operation (releases if power is removed) Mount vertically or horizontally Four knockouts on junction box Adapter and mounting hardware included Side (Surface) mount

Specifications

Holding Force: 1, 200-lb (544kg)
Operating Voltage: 12VDC or 24VDC
Current Draw: 500mA@12VDC, 250mA@24VDC
Operating Temperature: 14~131F (-10~55C) Maglock & Armature Weight (Approx. ): 11-lb (5kg) Bracket Weight (Approx. ): 4.6 -lb ( 2.1 kg)
Weight: 15.9 -lb ( 7.75 kg)
Certification: cUL, UL, CE, RoHS (magnetic lock only)
