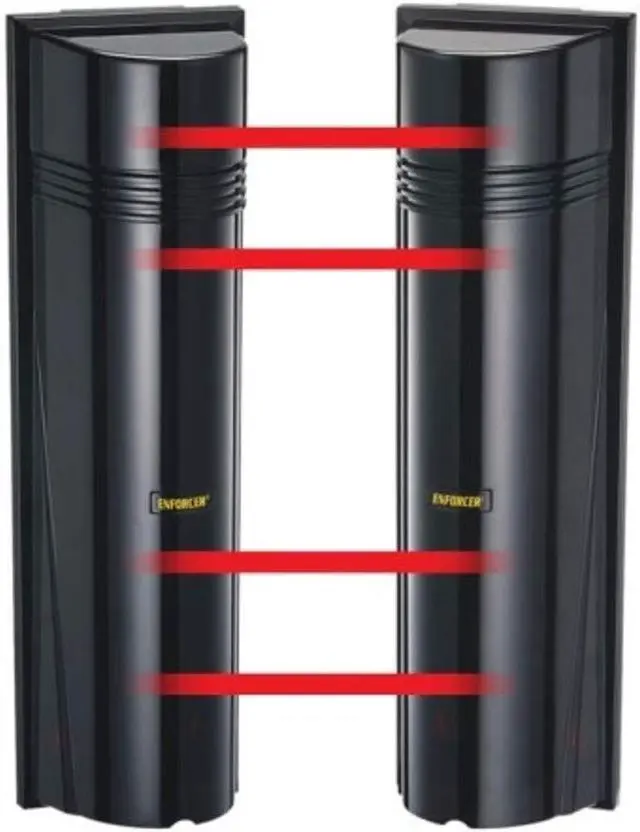

Seco-Larm Enforcer Quad Photobeam Detectors, 330-660 Ft. Range (E-964-Q330Q)
- Designed to provide reliable perimeter security both indoors and outdoors
- Easy-to-install with laser beam alignment
- Quad infrared beams minimize false alarms from falling leaves, birds, etc.
- Anti-frost system with built-in heater so that beam functions even in extreme conditions
- NO/NC alarm output
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Secure the perimeter around your home or property with Seco-Larm Enforcer Quad Photobeam Detectors. Quad photobeam detectors feature extended ranges that are ideal for long-distance protection. When the infrared light beams are broken, the sensors are activated and alert you to the intruder, helping you keep your home safe and secure. Four selectable beam frequencies eliminate interference Beam strength LED indicators Audible beam alignment (buzzer) Built-in heater for indoor or outdoor use NO/NC alarm outputReduces False AlarmsBecause all four beams must be simultaneously broken for activation, false alarms created by animals and falling leaves are minimized.
Built for Extreme ConditionsA built-in heater automatically turns on and off depending on the outside temperature. An environmental control output senses a slow degradation in beam strength when weather conditions worsen preventing false alarms. Lensed optics reinforce beam strength and provide excellent immunity to false alarms due to rain, snow, mist etc. Easy to Align and InstallThe built-in laser and visual alignment systems quickly and easily pinpoint the approximate mounting location for the transmitter and aid in aligning the transmitter and receiver units once mounted. A beam strength indicator clearly displays the strength of the beam at the receiver with 5 LEDs.
Four selectable beam frequencies allow for superior perimeter protection by eliminating crosstalk and interference between multiple units. ContentsEnforcer Quad Photobeam Detector (Transmitter) Enforcer Quad Photobeam Detector (Receiver) Beam alignment template
ManualTechnical DetailsMPN: E-964-Q330Q
UPC: 676544000976 Max.
range (outdoor): Up to 330 Ft. (100m) Max.
range (indoor): Up to 660 Ft. (200m) Current (Tx, Rx): 100mA Current (Tx, Rx, heaters): 260mA
Input voltage: 12 to 24 VAC/VDC (non-polarity)
Delay time: 50 milliseconds to 700 milliseconds (variable)
Detection method: All 4 beams simultaneously broken
Selectable beam frequencies: Four (4) channels
Alarm output: Form "C" relay COM/N. O. /N. C. 1A at 125VAC/24VDC Tamper output (Tx
& Rx): NC switch, 1A at 120VAC
Environmental output: Selectable N. O. or N. C. 1A at 125VAC/24VDC
Beam-strength indicator: 5 LEDs indicate signal strength from high to low
Signal LED (Rx): Red LED ON beam is broken or Tx and Rx out of alignment Power LED (Tx
& Rx): Green LED illuminated when power is on
Laser wavelength: 650nm
Alignment angle:
Horizontal: 900
Vertical: 150
Operating temperature: -13 to 131 degrees F (-250 to 55 degrees
C) Weight: 5.7 pounds ( 2.6 kg)
Ingress protection: IP55
Case: PC
Resin Dimensions: 15-1/4 x 4-7/16 x 4-11/32 inches (387 x 113 x 110mm)
Warranty: 1 Year
Built for Extreme ConditionsA built-in heater automatically turns on and off depending on the outside temperature. An environmental control output senses a slow degradation in beam strength when weather conditions worsen preventing false alarms. Lensed optics reinforce beam strength and provide excellent immunity to false alarms due to rain, snow, mist etc. Easy to Align and InstallThe built-in laser and visual alignment systems quickly and easily pinpoint the approximate mounting location for the transmitter and aid in aligning the transmitter and receiver units once mounted. A beam strength indicator clearly displays the strength of the beam at the receiver with 5 LEDs.
Four selectable beam frequencies allow for superior perimeter protection by eliminating crosstalk and interference between multiple units. ContentsEnforcer Quad Photobeam Detector (Transmitter) Enforcer Quad Photobeam Detector (Receiver) Beam alignment template
ManualTechnical DetailsMPN: E-964-Q330Q
UPC: 676544000976 Max.
range (outdoor): Up to 330 Ft. (100m) Max.
range (indoor): Up to 660 Ft. (200m) Current (Tx, Rx): 100mA Current (Tx, Rx, heaters): 260mA
Input voltage: 12 to 24 VAC/VDC (non-polarity)
Delay time: 50 milliseconds to 700 milliseconds (variable)
Detection method: All 4 beams simultaneously broken
Selectable beam frequencies: Four (4) channels
Alarm output: Form "C" relay COM/N. O. /N. C. 1A at 125VAC/24VDC Tamper output (Tx
& Rx): NC switch, 1A at 120VAC
Environmental output: Selectable N. O. or N. C. 1A at 125VAC/24VDC
Beam-strength indicator: 5 LEDs indicate signal strength from high to low
Signal LED (Rx): Red LED ON beam is broken or Tx and Rx out of alignment Power LED (Tx
& Rx): Green LED illuminated when power is on
Laser wavelength: 650nm
Alignment angle:
Horizontal: 900
Vertical: 150
Operating temperature: -13 to 131 degrees F (-250 to 55 degrees
C) Weight: 5.7 pounds ( 2.6 kg)
Ingress protection: IP55
Case: PC
Resin Dimensions: 15-1/4 x 4-7/16 x 4-11/32 inches (387 x 113 x 110mm)
Warranty: 1 Year
