Seco-Larm MVE-AH1E1-42UQ 4K@60Hz HDMI Over Single Cat6 Extender with USB 2.0 KVM and Loop-Out; Range Up to 230ft (70m); Connect HDMI Equipment Using Low-Cost Cat6 UTP Cable

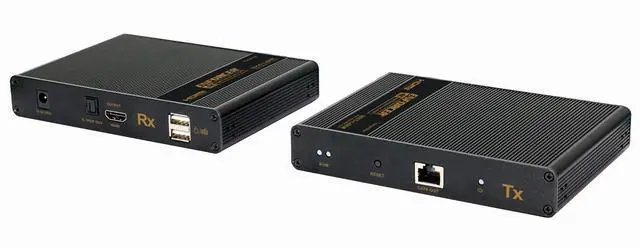

Seco-Larm MVE-AH1E1-42UQ 4K@60Hz HDMI Over Single Cat6 Extender with USB 2.0 KVM and Loop-Out; Range Up to 230ft (70m); Connect HDMI Equipment Using Low-cost Cat6 UTP CableThe ENFORCER HDMI Extender with KVM allow you to transmit HDMI audio and video as well as a USB ( 2.0 ) signal up to 230ft (70m) over a single Cat6 cable using an active transmitter and receiver, allowing remote operation of a device such as a computer or NVR/DVR; The extenders also provide HDMI loop-out and KVM
Key Features: -Display up to 4K@60Hz-Zero latency transmission up to 230ft (70m) over single Cat6/7-Supports USB keyboard and mouse (KVM) -Supports point to point connections-Transmitter includes
HDMI loop-outSpecifications: -Input
video signal: 3.3V -Input
DDC signal: 5Vp-p (TTL) -Maximum signal link range: 230ft
(70m) -Video formats supported: High-speed HDMI, HDCP
2.2 -Audio formats supported: LPCM, DTS HD, DTS Audio, Dolby Digital 5.1CH -Output
Video: HDMI-Resolutions
supported: 4K@60Hz, 4K@30Hz, 1080p, 1080i, 720p, 576p, 576i, 480p, 480i, 16801050, 16801050, 1600900, 1366768, 1360768, 1280960, 1280800, 1280720, 1024768, 800600-Range
(Cat6/6A/7): Up to 230ft (70m) -Video input connector: HDMI Type A 19-pin female-Maximum input cable length: 26ft (8m)
AWG24-Video output connector: HDMI Type A 19-pin female-Maximum output cable length: 26ft (8m)
AWG24-Cat6 Wiring standard: T-568B-Operating
voltage: 5~12
VDC-Power supply: 5VDC@2A-ESD
Protection: 8kV (air-gap discharge), 4kV (contact discharge) -Current
Draw: Transmitter
& Receiver: <4W-Operating
humidity: 0~90%-Operating
temperature: -4~140 F (-20~60
C)-Dimensions: 5-13/16 x 4-1/2 x 1 inches-Weight: 9.2 -oz (260g)
