Seco-Larm NS-104UT-MAQ Enforcer 4-Port Unmanaged PoE Switch; Supports up to 10/100B-T; IEEE 802.3X Flow Control; Plug-and-Play Installation; 48/57 VDC; 4 Downlink, 2 Uplink; 55W PoE Capacity

Seco-Larm NS-104UT-MAQ Enforcer 4-Port Unmanaged PoE Switch; Supports up to 10/100B-T; IEEE 802.3 x Flow Control; Plug-and-play Installation; 48/57 VDC; 4 Downlink, 2 Uplink; 55W PoE CapacityENFORCER Unmanaged PoE Switches provide Ethernet and power to PoE devices such as IP cameras, IP access control, IP speakers/intercoms, IP telephony, etc. Fast packet forwarding capability and extra backplane bandwidth ensure clear images at fast transmission speeds for video, making them well-suited for HD CCTV installationsKey
Features: - Provides both Ethernet data and power to multiple PoE devices including IP cameras, IP access, IP speakers/intercoms, VOIP, etc- Specially designed for video transmission with fast packet forwarding capability for clear images and smooth transmission- Easy plug-and-play installation- Supports up to 10/100B-T-
IEEE 802.3 x flow controlSpecifications: -
Operating voltage: 48~57 VDC-
Power consumption: Less than 5W-
Ports: 4 Downlink, 2 uplink-
Ethernet speed: 10/100 Mbps (uplink, 100Mbps)-
Ethernet standard: IEEE 802.3, IEEE 802.3 u, IEEE 802.3 af, IEEE 802.3 at, IEEE 802.3 x-
Transmission distance: 328ft-
PoE capacity: 55W-
Switching capacity: 1.2G bps-
Transfer rate:
10Mbps: 14, 880pps
; 100Mbps: 148, 800-
MAC Address table: 1K-
LED Indicators: Connection/transmission and PoE for each port, power-

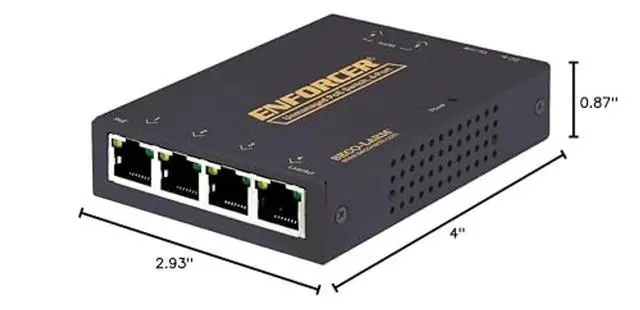

Dimensions: 4 x 0.87 x 2.93 inches-
Weight: 0.42 pounds
