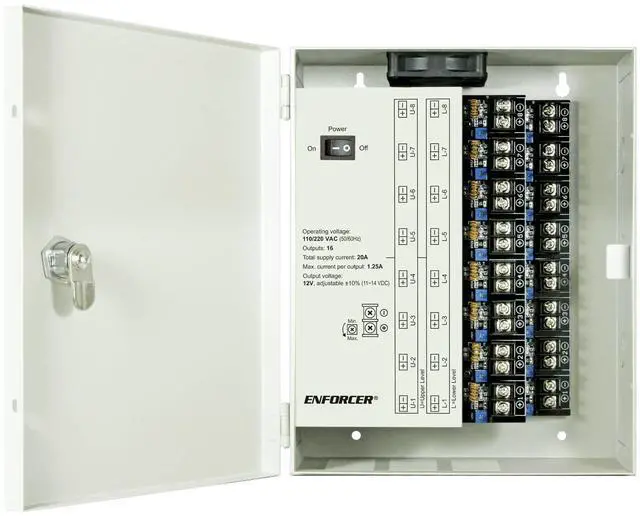

Seco-Larm PC-L1620-PQ Low-Noise CCTV Power Supply; 16 Outputs; Total Supply Current: 20A; Input Current: 4A
- Low-noise design for all CCTV applications where filtered power is needed, such as 4K (8MP)HD CCTV cameras, non-PoE IP cameras, and analog cameras
- 110/220 VAC input with 6kV surge protection
- Each output's voltage individually adjustable to compensate for voltage drop
- Outputs independently grounded with integrated noise filter for better noise reduction
- Outputs individually isolated and individually fused (2A PTC)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Seco-Larm PC-L1620-PQ Low-Noise CCTV Power Supply; 16 Outputs; Total
Supply Current: 20A;
Input current: 4AThe ENFORCER Low-Noise Switching CCTV Power Supply is designed for applications wherenoise is a problem due to inadequate wiring; independently isolated and grounded outputs withintegrated noise filtering and individually adjustable voltage helps reduce noise interference whenusing 4K (8MP) HD cameras, non-PoE IP cameras, and analog security camerasKey
Features: -Low-noise design for all CCTV applications where filtered power is needed, such as 4K (8MP) HD CCTV cameras, non-PoE IP cameras, and analog cameras-110/220 VAC input with 6kV surge protection-Each output's voltage individually adjustable to compensate for voltage drop-Outputs independently grounded with integrated noise filter for better noise reduction-Outputs individually isolated and individually fused (2A PTC)
voltage: 110/220
VAC (50/60Hz)-Outputs: 16-Total
supply current: 20A-Max.
current per output: 1.25A
-Output fuse: 2A
PTC (Per-channel)-Output voltage: 12VDC
5%-Efficiency: 80%-LED
Indicators: Individual per output, red
indicates powered-Operating humidity: 95%
non-condensing-Operating temperature: 32~104 F (0~40
C)-Dimensions: 8 x 9.19 x 3.94 inches-Weight: 6 pounds
Supply Current: 20A;
Input current: 4AThe ENFORCER Low-Noise Switching CCTV Power Supply is designed for applications wherenoise is a problem due to inadequate wiring; independently isolated and grounded outputs withintegrated noise filtering and individually adjustable voltage helps reduce noise interference whenusing 4K (8MP) HD cameras, non-PoE IP cameras, and analog security camerasKey
Features: -Low-noise design for all CCTV applications where filtered power is needed, such as 4K (8MP) HD CCTV cameras, non-PoE IP cameras, and analog cameras-110/220 VAC input with 6kV surge protection-Each output's voltage individually adjustable to compensate for voltage drop-Outputs independently grounded with integrated noise filter for better noise reduction-Outputs individually isolated and individually fused (2A PTC)
Specifications
: -Operatingvoltage: 110/220
VAC (50/60Hz)-Outputs: 16-Total
supply current: 20A-Max.
current per output: 1.25A
-Output fuse: 2A
PTC (Per-channel)-Output voltage: 12VDC
5%-Efficiency: 80%-LED
Indicators: Individual per output, red
indicates powered-Operating humidity: 95%
non-condensing-Operating temperature: 32~104 F (0~40
C)-Dimensions: 8 x 9.19 x 3.94 inches-Weight: 6 pounds
