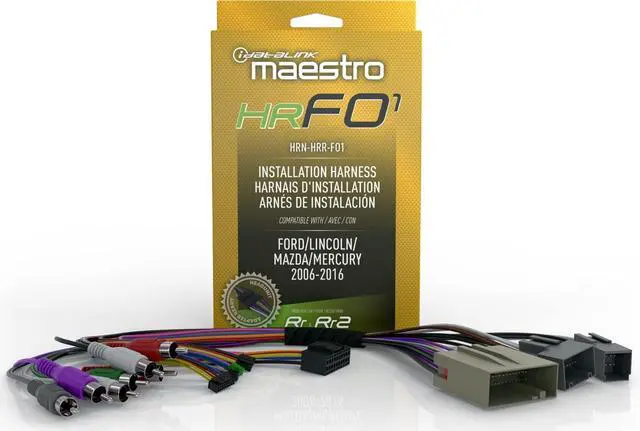

Idatalink Maestro HRN-HRR-FO1 Plug and Play Harness for select Ford Vehicles (2006-2016)

Idatalink Maestro HRN-HRR-FO1 Plug and Play Harness for select Ford Vehicles (2006-2016) (ADS-MRR or ADS-MRR2 Module Required) ^^ Idatalink Connect HRN-RR-FO1 Factory Integration Adapter. Retain the factory steering wheel audio controls and amp with a new car stereo for select Ford, Lincoln, Mercury, and Mazda vehicles (ADS-MRR or ADS-MRR2 module also required) ^^ This HRN-HRR-FO1 wiring adapter from iDatalink allows you to connect a new car stereo in select Ford, Lincoln, Mercury, and Mazda vehicles, working in conjunction with iDatalink's Maestro ADS-MRR or ADS-MRR2 module. Once connected, you'll retain the use of your steering wheel audio controls and your factory amp, if present.

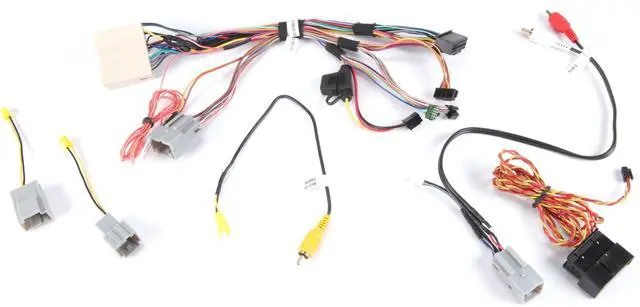

^^ The package includes three connectors that plug in between the Maestro module, your Ford radio's wiring plugs, and your new car stereo. You'll have to solder or splice together this harness's power/ground, illumination, speaker, and navigation output wires to the corresponding wires on your aftermarket receiver's wiring harness. ^^ Allows installation of a new receiver in select Ford-built vehicles (also Requires the Maestro ADS-MRR or ADS-MRR2 module) Displays engine performance data on touchscreen with select Alpine, JVC, Kenwood, SNY, and Pioneer receivers. ^^ Retains the use of your steering wheel audio controls and factory amp.

This harness also features an in-line head-unit connector harness, which will plug into their new "Head-unit direct" harnesses for select radio brands, which eliminate the need to splice any wires. If you're installing a radio that doesn't work with a "Head-unit direct" harness, you simply cut off the plug and connect the wires to the harness included with your new radio.
^^ INSTALLATION NOTE: This HRN-HRR Plug & Play T-Harness REQUIRES an Idatalink Maestro Interface Module (ADS-MRR or ADS-MRR2) and the corresponding Idatalink Maestro Car Stereo Head-Unit ACC-HU-ALP1 (Alpine), ACC-HU-PIO1 (Pioneer), ACC-HU-SON1 (S0NY), ACC-HU-KEN1 (KENWO0D/JVC with 22-Pin Connector), ACC-HU-KEN2 (KENWO0D/JVC with 16-Pin Connector), ACC-HU-KEN3 (2024 & Newer KENWO0D/JVC with 22-Pin Connector), ACC-HU-BOS1 (BOSS Radio) or the ACC-HU-JEN1 (Jensen) Installation T-Harness. Each Sold separately. These adapters allows you to connect select car stereos to compatible iDatalink T-harnesses.
^^ (ADS-MRR: Vehicle
Coverage: 30 Makes -
Models: 4318 -
Years: 2002+)
- (ADS-MRR2: Vehicle
Coverage: 30 Makes -
Models: 4582 -
Years: 2002+ with 3 Programmable Outputs)
