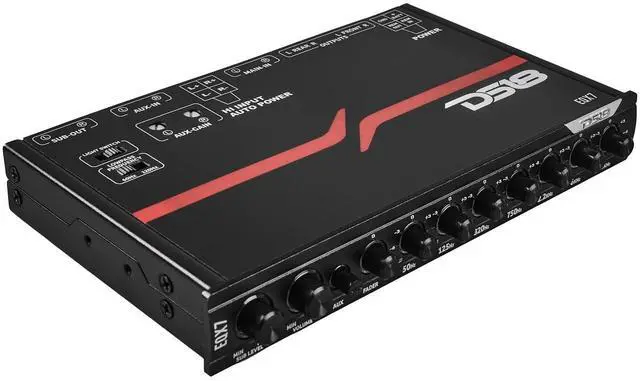

Main image of DS18 EQX7 Equalizer 7 Bands with auto Hi/Lo line Selector, Two Rear inputs (Main and Aux), 8 Volts Front, Rear and Sub Output

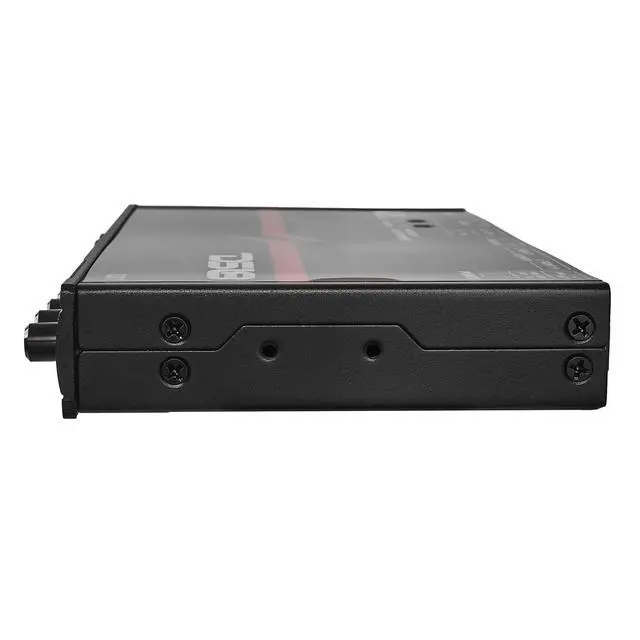

Alt view image 2 of 5 - DS18 EQX7 Equalizer 7 Bands with auto Hi/Lo line Selector, Two Rear inputs (Main and Aux), 8 Volts Front, Rear and Sub Output

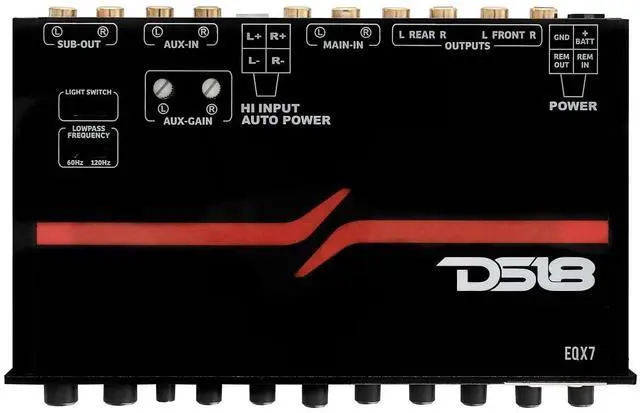

Alt view image 3 of 5 - DS18 EQX7 Equalizer 7 Bands with auto Hi/Lo line Selector, Two Rear inputs (Main and Aux), 8 Volts Front, Rear and Sub Output

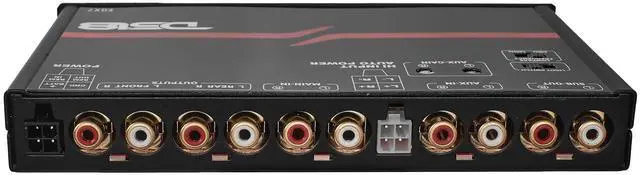

Alt view image 4 of 5 - DS18 EQX7 Equalizer 7 Bands with auto Hi/Lo line Selector, Two Rear inputs (Main and Aux), 8 Volts Front, Rear and Sub Output

Alt view image 5 of 5 - DS18 EQX7 Equalizer 7 Bands with auto Hi/Lo line Selector, Two Rear inputs (Main and Aux), 8 Volts Front, Rear and Sub Output

Shop All DS18 AUDIO Products | Visit LingGo Store

DS18 EQX7 Equalizer 7 Bands with auto Hi/Lo line Selector, Two Rear inputs (Main and Aux), 8 Volts Front, Rear and Sub Output

The EQXT is a 7-band equalizer/crossover specifically created for the mobile environment. The EQXT provides powerful features in a compact size

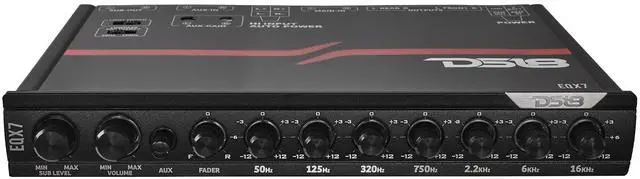

Seven equalization bands (50Hz, 125Hz, 320Hzm 750Hz, 2.2Hz, 6KHz, and 16KHz), each frequency adjustable from -12 to 12dB (-15 to + 15 dB for subwoofer frequencies)
Subwoofer output uses a built-in 18dB per octave electronic crossover fixed at 60Hz or 120Hz
Gold-plated RCA connector to ensure the best audio singal output
Never stop innovating attitude - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Having the perfect tools to make your sound system the ultimate music machine is what DS18 has for you. Our crossovers are designed to provide the perfect frequency distribution throughout your system to ensure the clarity and peak efficiency for your acoustic needs. This EQ has 7 separate bands including bass and are adjusted in real time while sitting in your vehicle and on the fly with just a twist of your fingers. The included hi-lo converter also makes it the perfect choice for those looking to add amplifiers to their factory radio. DS18 EQX7 Boost / Cut 12dB S/N ratio 100dB
Frequency Response: 10Hz-50KHz +/-1dB Maximum
Output voltage: 8V THD 0.005 % Input impedance50mV- 3
V Head Room: 20 dB
Output impedance: 2K Ohms
Input impedance: 20K Ohms Stereo Seperation82 dB/1
KHz Operating voltage: 11V-15V Negative Ground Dimension (L x W x H) 7" x 4.40" x 1.18"
