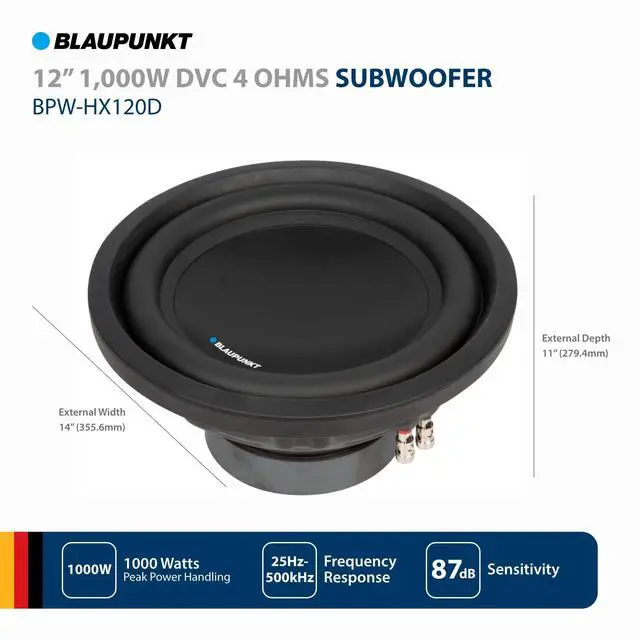

BLAUPUNKT BPW-HX120D 12" 1000W DVC Car Subwoofer Audio Speaker - 500WRMS / 1000WMax - 25Hz-500Hz Frequency Response - Treated Paper Cone with Rubber Surround
- POWERFUL BASS OUTPUT: 1000W Max Output / 500W RMS
- EARTH-SHAKING LOWS: Frequency Response between 25Hz - 500Hz bumps out some serious rumble
- VENTED & SEALED ENCLOSURES: Can be installed in both vented and sealed enclosures (See description for enclosure dimension recommendations)
- EASY INSTALLATION: Easy push terminals make installation a snap
- DEEP LOWS WITH CRYSTAL CLEAR SOUND: 4 Ohm and 87dB Sensitivity ensure true to source quality
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
BLAUPUNKT BPWHX120D X-Series 12-inch DVC Subwoofer Car Audio Speakers 500 Watts Rms 1000 Watts Peak Speaker Enhancer ^^^^ GENERAL ^^^^
Brand: BLAUPUNKT ^^^^
Model Number: BPWHX120D ^^ BPW-HX120D ^^ 00000016 ^^^^
UPC: 850053034213 ^^^^
Weight: 10 lbs ^^^^
Dimensions: 12 12 6 in ^^^^ BLAUPUNKT BPW-HX120D A subwoofer is a speaker in your system that handles low-frequency audio signals. Blaupunkt X-Series will improve your listening experience when playing your favourite song. ^^^^ ^^^^ TECHNICAL DATA ^^^^

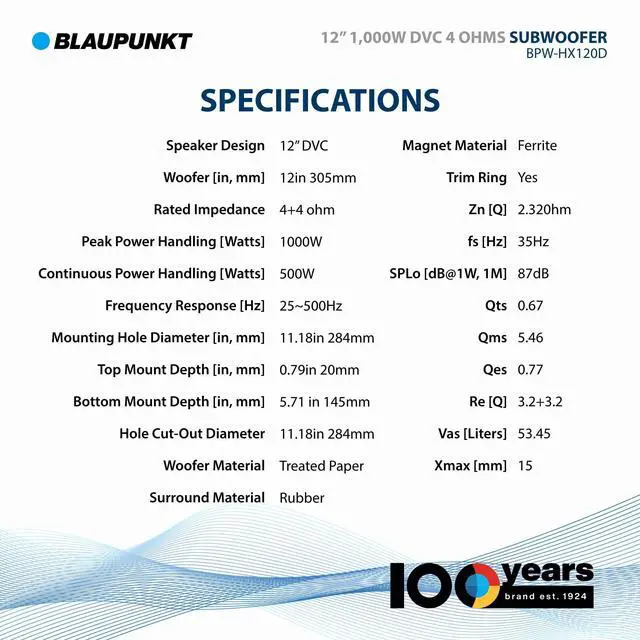

Speaker Design: 12 DVC ^^^^ Woofer [in, mm]: 12in 305mm ^^^^
Rated Impedance: 4+4 ohm ^^^^
Peak Power Handling [Watts]: 1000W ^^^^ Continuous
Power Handling [Watts]: 500W ^^^^
Frequency Response [Hz]: 25~500Hz ^^^^ Mounting Hole Diameter [in, mm]: 11.18 in 284mm ^^^^ ^^^^ TECHNICAL DATA ^^^^ Top Mount Depth [in, mm]: 0.79 in 20mm ^^^^ Bottom Mount Depth [in, mm]: 5.71 in 145mm ^^^^
Hole Cut-Out Diameter: 11.18 in 284mm ^^^^
Woofer Material: Treated Paper ^^^^
Surround Material: Rubber ^^^^
Magnet Material: Ferrite ^^^^
Trim Ring: Yes ^^^^
Zn []: 2.32
ohm ^^^^ fs [Hz]: 35Hz ^^^^ SPLo [dB@1W, 1M]: 87dB ^^^^
Qts: 0, 67 ^^^^
Qms: 5, 46 ^^^^
Qes: 0, 77 ^^^^
Re []: 3.2 + 3.2 ^^^^
Vas [Liters): 53, 45 ^^^^
Xmax [mm]: 15 ^^^^ ^^^^

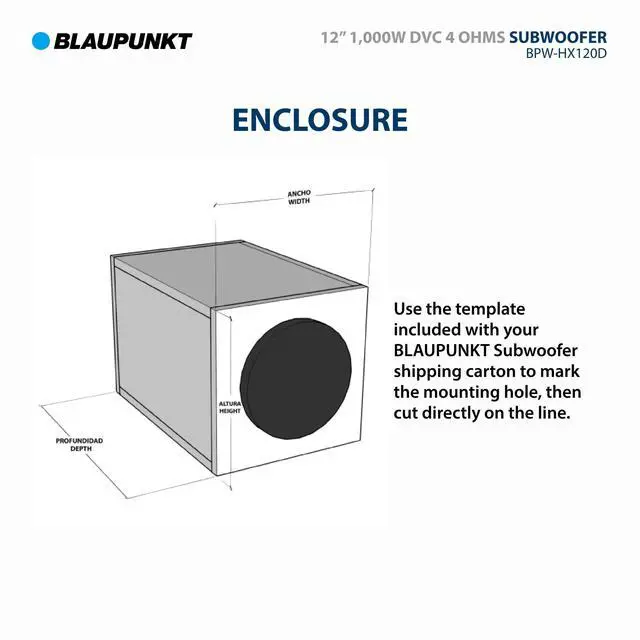

VENTED ENCLOSURES: BPW-HX120D ^^^^
Wall Thickness: 0.75 ^^^^
Volume (Net Internal): 1.65 CuFt ^^^^ External
Width (W): 23 ^^^^ External
Height (H): 12.5 ^^^^ External
Depth (D): 14 ^^^^
Port Area: 12.5 Sq inch ^^^^
Port Length: 16 ^^^^
SEALED ENCLOSURES: BPW-HX120D ^^^^
Wall Thickness: 0.75 ^^^^
Volume (Net Internal): 0.8 CuFt ^^^^ External
Width (W): 14 ^^^^ External
Height (H): 14 ^^^^ External
Depth (D): 11 ^^^^ ^^^^ The BLAUPUNKT BPW-HX120D is a subwoofer from Blaupunkt's X-Series. It's designed to handle low-frequency audio signals and improve your listening experience with powerful bass. For optimal performance, the BPW-HX120D can be installed in both vented and sealed enclosures, with specific dimensions and port designs to maximize the subwoofer's potential
Brand: BLAUPUNKT ^^^^
Model Number: BPWHX120D ^^ BPW-HX120D ^^ 00000016 ^^^^
UPC: 850053034213 ^^^^
Weight: 10 lbs ^^^^
Dimensions: 12 12 6 in ^^^^ BLAUPUNKT BPW-HX120D A subwoofer is a speaker in your system that handles low-frequency audio signals. Blaupunkt X-Series will improve your listening experience when playing your favourite song. ^^^^ ^^^^ TECHNICAL DATA ^^^^
Speaker Design: 12 DVC ^^^^ Woofer [in, mm]: 12in 305mm ^^^^
Rated Impedance: 4+4 ohm ^^^^
Peak Power Handling [Watts]: 1000W ^^^^ Continuous
Power Handling [Watts]: 500W ^^^^
Frequency Response [Hz]: 25~500Hz ^^^^ Mounting Hole Diameter [in, mm]: 11.18 in 284mm ^^^^ ^^^^ TECHNICAL DATA ^^^^ Top Mount Depth [in, mm]: 0.79 in 20mm ^^^^ Bottom Mount Depth [in, mm]: 5.71 in 145mm ^^^^
Hole Cut-Out Diameter: 11.18 in 284mm ^^^^
Woofer Material: Treated Paper ^^^^
Surround Material: Rubber ^^^^
Magnet Material: Ferrite ^^^^
Trim Ring: Yes ^^^^
Zn []: 2.32
ohm ^^^^ fs [Hz]: 35Hz ^^^^ SPLo [dB@1W, 1M]: 87dB ^^^^
Qts: 0, 67 ^^^^
Qms: 5, 46 ^^^^
Qes: 0, 77 ^^^^
Re []: 3.2 + 3.2 ^^^^
Vas [Liters): 53, 45 ^^^^
Xmax [mm]: 15 ^^^^ ^^^^
VENTED ENCLOSURES: BPW-HX120D ^^^^
Wall Thickness: 0.75 ^^^^
Volume (Net Internal): 1.65 CuFt ^^^^ External
Width (W): 23 ^^^^ External
Height (H): 12.5 ^^^^ External
Depth (D): 14 ^^^^
Port Area: 12.5 Sq inch ^^^^
Port Length: 16 ^^^^
SEALED ENCLOSURES: BPW-HX120D ^^^^
Wall Thickness: 0.75 ^^^^
Volume (Net Internal): 0.8 CuFt ^^^^ External
Width (W): 14 ^^^^ External
Height (H): 14 ^^^^ External
Depth (D): 11 ^^^^ ^^^^ The BLAUPUNKT BPW-HX120D is a subwoofer from Blaupunkt's X-Series. It's designed to handle low-frequency audio signals and improve your listening experience with powerful bass. For optimal performance, the BPW-HX120D can be installed in both vented and sealed enclosures, with specific dimensions and port designs to maximize the subwoofer's potential
