Bogen Telephone Module M Series

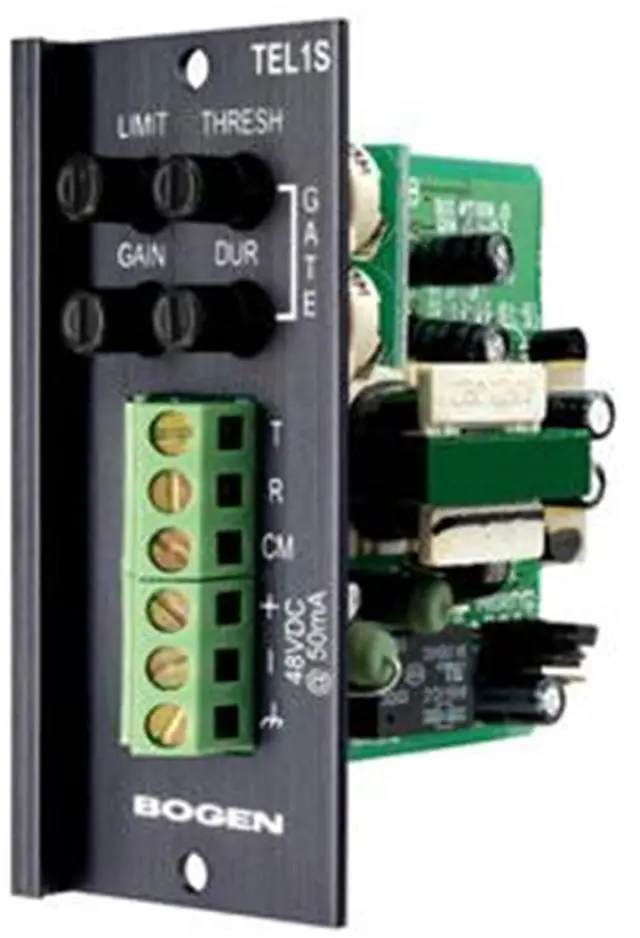

Bogen TEL1S Telephone- Advanced Input Module, Dry Loop Interface to Paging Ports, Audio-activated Paging, Gain/Trim Control, Limiter, Noise gate w/Threshold & Duration, 4 Priority LevelsThe TEL1S module is a transformer-isolated, balanced input and configuration jumper that will allow it to interface with both wet and dry loop telephone systems. In the dry loop mode, this module allows connections to page port systems. In the wet mode of operation, it allows connections to both ground start and loop start telephone systems. The module provides for the connection of an external talk-battery power supply of 48V DC.

The module also has a gain control that will allow the gain to be adjusted from 0 dB to 30 dB. The module has a VOX/gating circuit to control muting of lower priority modules and its internal gating circuit with controls for threshold and duration. Built in limiter, with a threshold control, to limit the maximum output level of the module. KEY FEATURES- Dry loop interface to paging ports- Audio-activated paging in dry loop- Gain/Trim control- Limiter- Noise gate w/Threshold & Duration- Mute send & receive- 4 Priority levels- Bus assignable- Transformer-isolated- Screw terminal connections- Loop start or ground start trunk interfacing (requires external power supply;
PRS48)SPECIFICATIONS- Gain: 0dB to 30dB-
Frequency Response: +0/-3dB, 20Hz - 20kHz-
S/N: -90 dBV @ 30 dB of gain, -120 dBV
EIN- Distortion: <0.1%, 20Hz - 20kHz- Input Impedance: Dry loop 30k ohms, Wet loop 1k ohms- Limit (threshold): -10 dBV to off- Gate Threshold: 3mV to 30mV- Gate Duration: 0.5s to 5s- Priority: Four levels- External Power: 48V DC (for talk battery)- CMRR: > 80dB @ 1kHz-
Controls: Gain, Limit, Gate Threshold, Gate
Duration- Connector: 6-position barrier strip-
Dimensions: 1-3/8"W x 3-1/8"H x 3-1/2"D-
Weight: 2.8 oz
