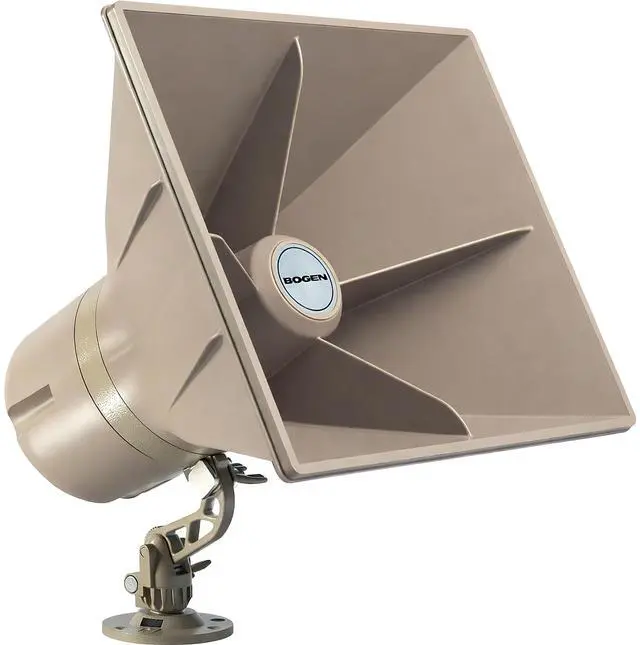

Bogen SAH5 Self-Amplified Horn Speaker, 5 W, DC Powered, Weatherproof, Digital Switching, Amplified Horn Speaker With Volume Control Knob And Swivel Mount
- Self-Amplified Horn Speaker: Delivers 5 W Of Power With Built-In Digital Switching Amplifier For Efficient Performance
- Low DC Current Draw And Heat Dissipation: Allows Longer Cable Runs And Operation At Higher Ambient Temperatures
- Weatherproof UV-Protected Housing: With Cast Aluminum Swivel Mount For Flexible Indoor Or Outdoor Use
- Wide Controlled Dispersion Pattern (120x90): With Extended Frequency Response For Clear Paging/Music Playback
- Indexed Volume Control Knob Under Access Cover: With Screw Terminals For Simple Wiring
- Rotatable Horn With Tilt/Swivel Positioning: For Tailored Coverage
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Bogen SAH5 Self-Amplified Horn Speaker, 5 W, DC Powered, Weatherproof, Digital Switching, Amplified Horn Speaker With Volume Control Knob And Swivel MountThe Bogen SAH5 Self-Amplified Horn Speaker is engineered to deliver intelligible voice paging and background music with minimal system complexity. Featuring a built-in 5 W digital switching amplifier that draws low DC current and dissipates less heat, this powered horn speaker can be run from a 24 V DC source with fewer power supplies and support longer cable runs than conventional analog-amplified horns. Designed for rugged indoor/outdoor use, the weatherproof UV-protected plastic housing and secure cast aluminum swivel mount make installation straightforward and reliable
Key Features: Self-Amplified Horn Speaker Built-In Digital Switching Amplifier Low DC Current Draw Weatherproof UV-Protected Housing Cast Aluminum Swivel Mount Indexed
Volume Control Knob RotatableSpecifications: Product
Type: Self-Amplified Horn
Speaker Power Rating: 5
W Amplifier: Digital Switching Self-Amplified
Power Supply Voltage: 24 V DC Nominal Typical
Current Consumption: 200 mA (4 CU) Maximum
Sound Level: 119 dB SPL
Input Sensitivity: 125 mVrms
Input Impedance: 2 k
Dispersion Pattern: 120 x 90 degrees
Housing: Weatherproof
UV-Protected Plastic Mount: Cast Aluminum
Swivel Volume Control: Indexed Knob Under Access Cover Wiring: Screw Terminal Strip Mounting Accessories Included (Base, Box Strap, Wing
Nut) Orientation: Rotate, Tilt,
Swivel Adjustable Dimensions: 10.62 x 12 x 11.5 inches
Key Features: Self-Amplified Horn Speaker Built-In Digital Switching Amplifier Low DC Current Draw Weatherproof UV-Protected Housing Cast Aluminum Swivel Mount Indexed
Volume Control Knob RotatableSpecifications: Product
Type: Self-Amplified Horn
Speaker Power Rating: 5
W Amplifier: Digital Switching Self-Amplified
Power Supply Voltage: 24 V DC Nominal Typical
Current Consumption: 200 mA (4 CU) Maximum
Sound Level: 119 dB SPL
Input Sensitivity: 125 mVrms
Input Impedance: 2 k
Dispersion Pattern: 120 x 90 degrees
Housing: Weatherproof
UV-Protected Plastic Mount: Cast Aluminum
Swivel Volume Control: Indexed Knob Under Access Cover Wiring: Screw Terminal Strip Mounting Accessories Included (Base, Box Strap, Wing
Nut) Orientation: Rotate, Tilt,
Swivel Adjustable Dimensions: 10.62 x 12 x 11.5 inches
