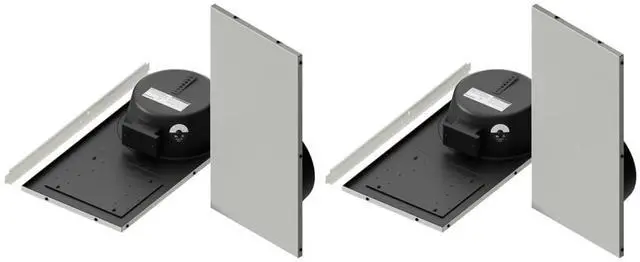

CSD1X2U-V2 Drop-in Ceiling Speakers with Back Can, Sold in Pairs, Bright White Finish, 8 Ohm, 70V/25V, Clear Sound, Background Music, 4W Power Handling

Bogen CSD1X2U-V2 8-Ohm/70V/25V Drop-In Ceiling Speaker (Pack of 2), 4 Watts Power, 1 ft. x 2 ft. Steel Assembly with Finished Metal Grille, 8" Loudspeaker, 100 Dispersion, 10 oz. Magnet WeightThe CSD1X2U-V2 is a full-range, plenum-rated, ceiling speaker offering increased options for IP network designers and system integrators of Nyquist and other systems. With the easy addition of one of several available Nyquist plenum-rated amplifier modules, the CSD1X2U-V2 can be converted into an intercom appliance, or a source amplifier/speaker for a secondary chain of 25V/70V speakers.

KEY FEATURES- Simple to install: Unpack, attach the speaker wiring (8-ohm or 25V/70V input), and select the desired power tap setting (if 25V/70V operation). - Easy to convert into a Nyquist passive IP speaker or IP intercom speaker. Increase designer and end user options for choice of intercom style and location with the addition of a Nyquist GA10P (V) and optional call switch. - Convert the speaker into a 25V/70V audio amplifier source and speaker combo unit. Now audio designers have a combination unit that functions as both an IP speaker and 25V/70V amplifier, from which multiple secondary 25V/70V speakers can be daisy-chained to increase audio coverage. - Listed to UL Standards 62368SPECIFICATIONS-
Frequency Response: 110Hz to 20kHz-
SPL @ 1W/1m: 94 dB-
Power Taps: 4, 2, 1, 0.5, 0.25 W- Dispersion @ 2 kHz (6 dB down): 100-
Cone Material & Surround: Treated paper-
Magnet Weight: 10 oz.
- Connection: Via wire nuts (included in electrical box) -
Dimensions: 12"W x 4-7/8"H x 24"D-
Weight: 10 lb.
