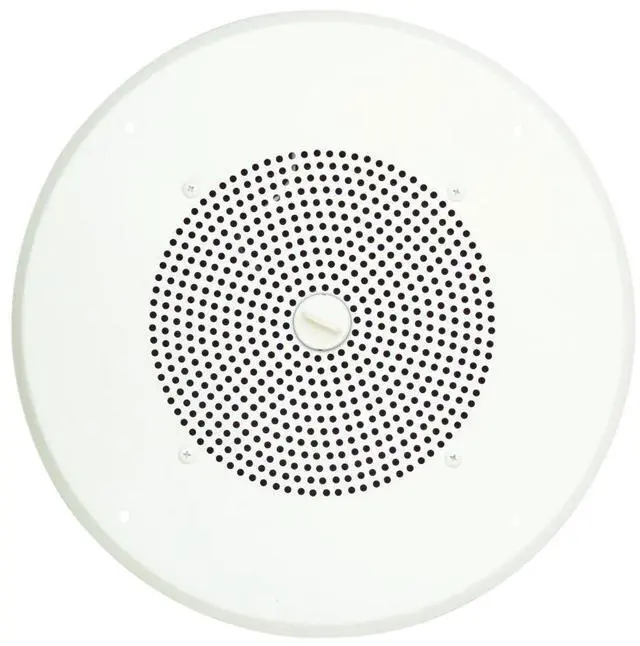

Bogen ASWG1DK Self Amplified Ceiling Speaker Assembly, 8 Inch Cone, 1W Paging Speaker, 24VDC, 600 Ohm, Detachable Volume Control, Off White Grille
- Self-amplified speaker: Built-in 1-watt amplifier eliminates the need for external amplification
- 8-inch cone driver: Full-range speaker provides clear paging and background audio
- 600 ohm input: Interfaces directly with standard telephone paging systems
- Detachable volume control: Front-mounted knob allows easy adjustment or removal for tamper resistance
- Ceiling mount assembly: Pre-assembled speaker with steel grille for recessed installation
- 24VDC operation: Low-voltage system compatible with commercial paging setups
- Wide sound dispersion: 90-degree coverage for consistent audio distribution
- Durable steel grille: Semi-gloss enamel finish for long-term installation reliability
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Bogen ASWG1DK Self Amplified Ceiling Speaker Assembly, 8 Inch Cone, 1W Paging Speaker, 24VDC, 600 Ohm, Detachable Volume Control, Off White GrilleThe Bogen ASWG1DK is a self amplified ceiling speaker assembly designed for paging, talkback, and background audio applications. It features an 8 inch cone loudspeaker with an integrated 1 watt amplifier, allowing it to operate without the need for a centralized amplifier system. Designed for direct connection to standard 600 ohm telephone paging lines, this speaker is ideal for commercial environments such as offices, warehouses, schools, and retail spaces.
Key Features: Built in 1 watt amplifier 8 inch cone driver 600 ohm input Detachable volume control Pre assembled speaker with steel grille for recessed installation 24VDC operation 90 degree coverage
Semi gloss enamel finishSpecifications: Speaker
Size: 8 in cone
Power Output: 1
W Maximum SPL: 92 dB
Dispersion: 90 degrees
Input Type: 600 ohm telephone line
Input Impedance: 2000 ohms
Input Sensitivity: 125 mV
Power Requirement: 24 VDC
Current Consumption: approx 50 mA
Construction: Steel ceiling grille
Finish: Off white semi gloss
Diameter: 12.9 inches
Weight: 5 pounds
Key Features: Built in 1 watt amplifier 8 inch cone driver 600 ohm input Detachable volume control Pre assembled speaker with steel grille for recessed installation 24VDC operation 90 degree coverage
Semi gloss enamel finishSpecifications: Speaker
Size: 8 in cone
Power Output: 1
W Maximum SPL: 92 dB
Dispersion: 90 degrees
Input Type: 600 ohm telephone line
Input Impedance: 2000 ohms
Input Sensitivity: 125 mV
Power Requirement: 24 VDC
Current Consumption: approx 50 mA
Construction: Steel ceiling grille
Finish: Off white semi gloss
Diameter: 12.9 inches
Weight: 5 pounds
