HiFi Bluetooth 5.0 Tube Power Amplifier Coax/Opt Integrated Audio Amp USB Player

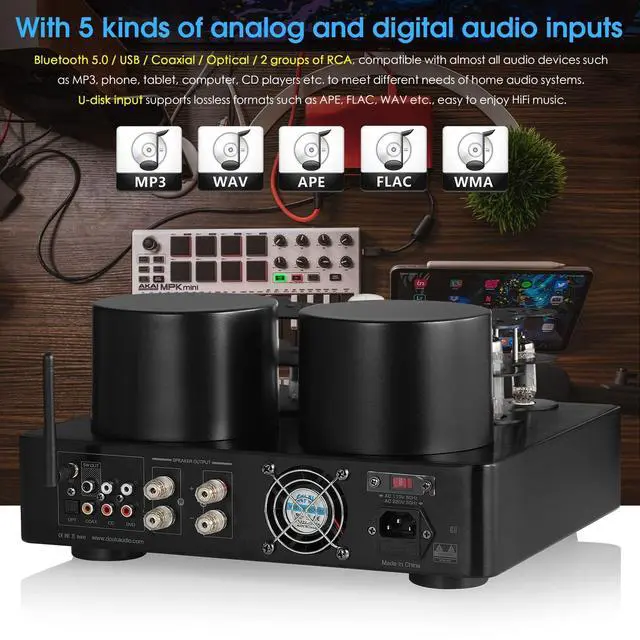

- With 5 kinds of analog and digital audio input (Bluetooth 5.0 / USB / Coaxial / Optical / 2 groups of RCA), compatible with almost all audio devices such as MP3, phone, tablet, computer, CD players etc. to meet different needs of home audio systems. U-disk input supports lossless formats such as APE, FLAC, WAV etc., easy to enjoy HiFi music.

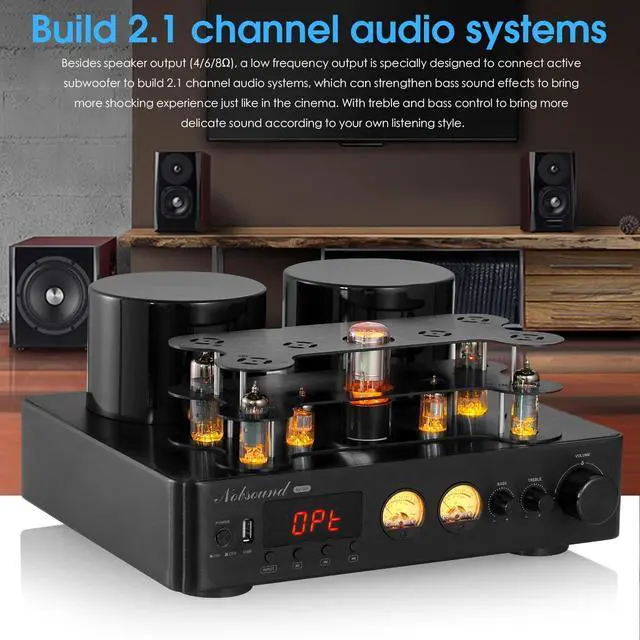

- Besides speaker output (4/6/8), a low frequency output is specially designed to connect active subwoofer to build 2.1 channel audio systems, which can strengthen bass sound effects to bring more shocking experience just like in the cinema. With treble and bass control to bring more delicate sound according to your own listening style.

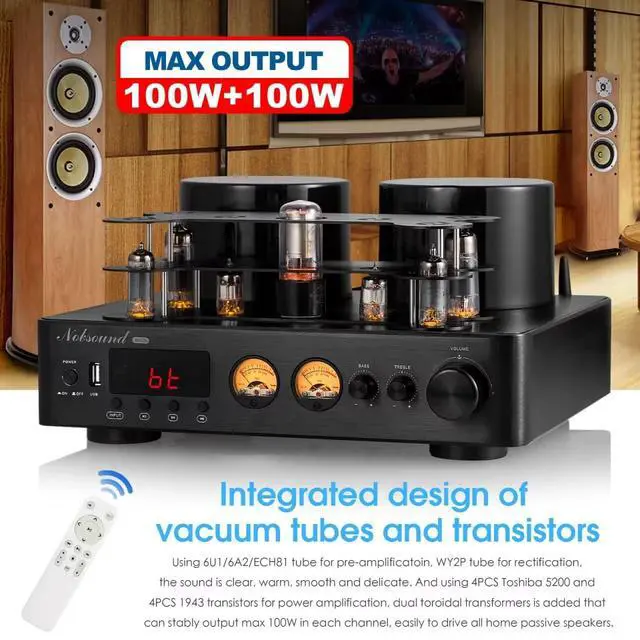

- Integrated design of vacuum tubes and transistors, using 6C19/6A2/6H2 tube for pre-amplificatoin, WY2P tube for rectification, the sound is clear, warm, smooth and delicate. And using 4PCS Toshiba 5200 and 4PCS 1943 transistors for power amplification, dual toroidal transformers is added that can stably output m
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Warm tips: Only in the condition of large dynamic music and much bass effect the VU meter will work.
ParametersAudio input: Bluetooth / 2 groups of RCA / USB(U-disk) / Coaxial /
OpticalAudio output: speaker jack / low frequency output (connect active subwoofer)
U-disk supported sampling rate: 16Bit/48KHzU-disk
supported formats: MP3/WAV/APE/FLAC/WMAU-disk
max storage capacity: 128GBluetooth
version: 5.0O
utput impedance: 4-16Rated
output power: 100W+100W @4, 70W+70W
@8Frequency response: 20HZ-20KHZ (2dB)
Power consumption: 300WInput
impedance: 47KInput
sensitivity: 800mVTreble and
Bass range: 9dBSignal
to noise ratio:
88dBSeparation:
80dBTHD: 0.1 % (1KHz)
Dimensions (W*D*H): 330*315*160mm / 12.99 * 12.44 * 6.30 inPackage dimensions (W*D*H): 380*350*210mm/ 14.96 * 13.78 * 8.30 inNet weight: 7.16 kg / 15.79 lbPackage weight: 9.0 kg / 19.84 lbPacking List1*Tube Amplifier1*Power Cord1*Remote Control
ParametersAudio input: Bluetooth / 2 groups of RCA / USB(U-disk) / Coaxial /
OpticalAudio output: speaker jack / low frequency output (connect active subwoofer)
U-disk supported sampling rate: 16Bit/48KHzU-disk
supported formats: MP3/WAV/APE/FLAC/WMAU-disk
max storage capacity: 128GBluetooth
version: 5.0O
utput impedance: 4-16Rated
output power: 100W+100W @4, 70W+70W
@8Frequency response: 20HZ-20KHZ (2dB)
Power consumption: 300WInput
impedance: 47KInput
sensitivity: 800mVTreble and
Bass range: 9dBSignal
to noise ratio:
88dBSeparation:
80dBTHD: 0.1 % (1KHz)
Dimensions (W*D*H): 330*315*160mm / 12.99 * 12.44 * 6.30 inPackage dimensions (W*D*H): 380*350*210mm/ 14.96 * 13.78 * 8.30 inNet weight: 7.16 kg / 15.79 lbPackage weight: 9.0 kg / 19.84 lbPacking List1*Tube Amplifier1*Power Cord1*Remote Control
