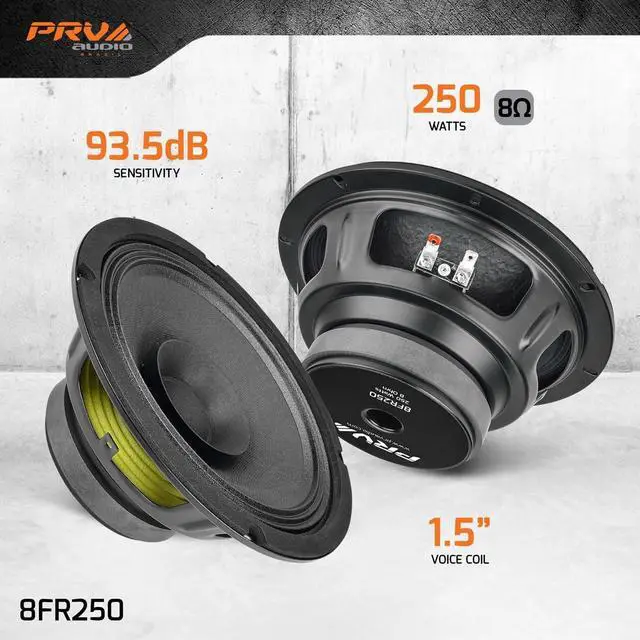

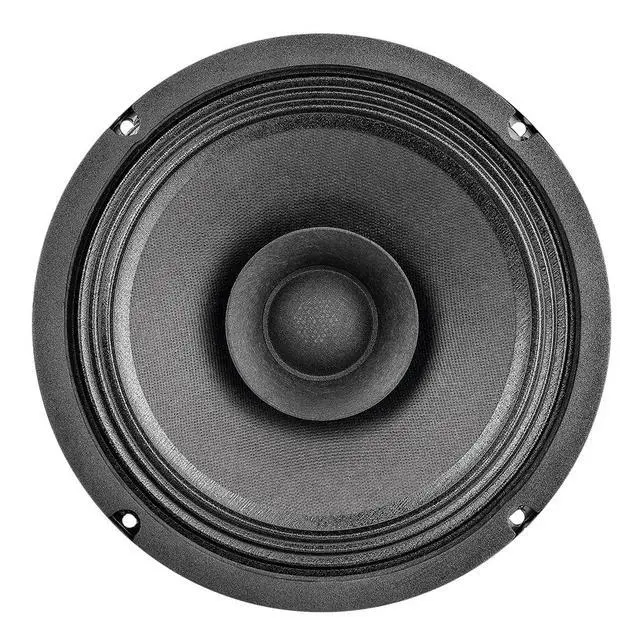

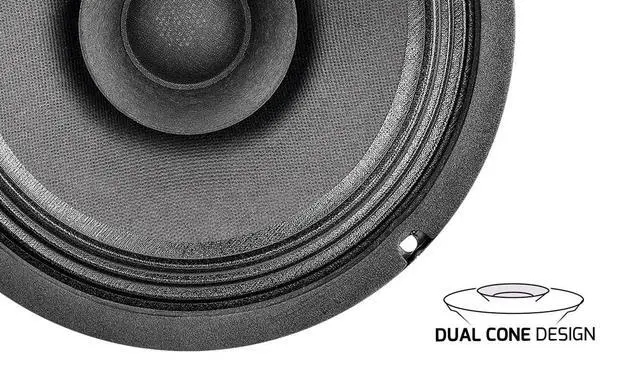

The PRV Audio FR Series sets a new standard of value in high-performance Full Range drivers. The 8FR250 full-range driver is an excellent choice when space is at an absolute minimum, eliminating the need for a tweeter. This loudspeaker has a dual cone design, the primary cone handles low to midrange frequencies while the smaller secondary cone increases high-frequency response from 50 Hz to 18, 000 Hz. The combination of a low-distortion motor system with a copper ring and a unique woven-cloth dust cap provides exceptional clarity, detail, and dynamics at an impressive 93.5 dB of sensitivity.
Nominal Diameter: 8 (203 mm)
Nominal impedance: 8 OhmsRated AES
Power Handling (RMS): 125
WattsProgram Power: 250
WattsSensitivity 2.83V at 1m: 93.5 dBRecommended
Hi Pass Crossover*: 75 Hz***For Full Power Handling **12db Per Octave CrossoverFrequency Response at -10dB: 50 18, 000
HzVoice Coil Diameter: 1.5 (38 mm)
Voice Coil Wire: CCAW
Voice Coil Winding Depth: 10.0 mmFormer
Material: KaptonMagnetic
Gap Depth: 6.0 mmFrame
Material: Stamped

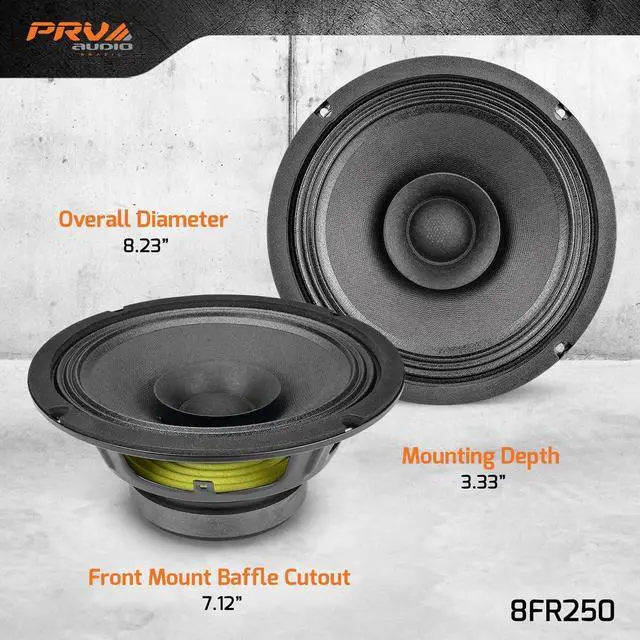

SteelOverall Diameter: 8.23 (209 mm) Front
Mount Baffle Cutout: 7.12 (181 mm)
Mounting Depth: 3.33 ( 84.5 mm)Overall
Depth: 3.60 ( 91.5 mm)
