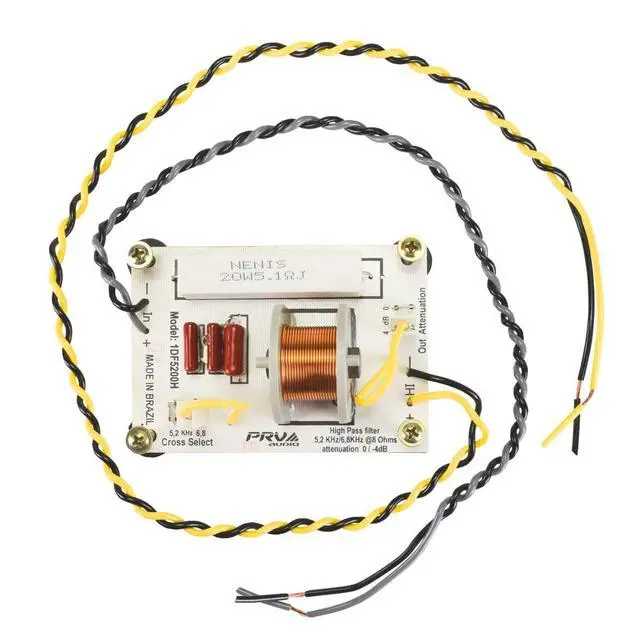

Main image of PRV AUDIO 1DF5200H High Pass Crossover Board 5200/6800 Hz with Driver Attenuation Brightness Control

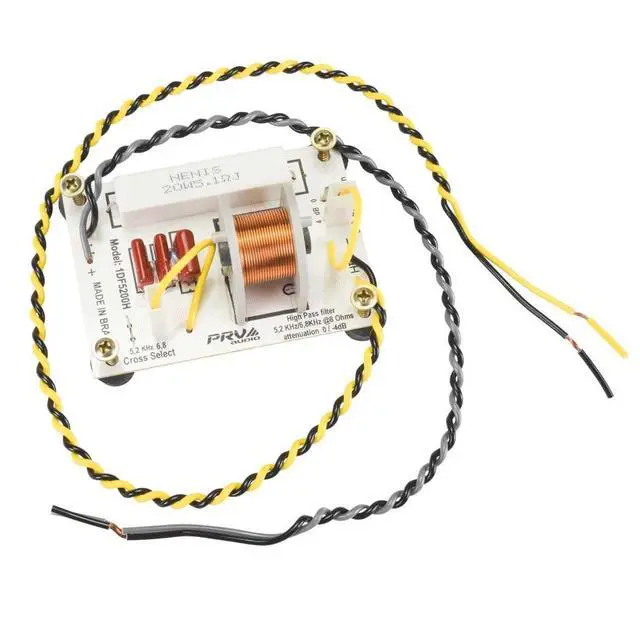

Alt view image 2 of 2 - PRV AUDIO 1DF5200H High Pass Crossover Board 5200/6800 Hz with Driver Attenuation Brightness Control

Shop All PRV Audio Products | Visit VersaCom Store

PRV AUDIO 1DF5200H High Pass Crossover Board 5200/6800 Hz with Driver Attenuation Brightness Control

WOOFER IMPEDANCE SELECTION: This setting allows the same crossover to be used with 8 or 4 Ohms speakers and combinations of them (series or parallel connection) providing you with one solution for multiple cabinet variations
WOOFER ROLL-OFF CROSSOVER ADJUSTMENT: Some woofers respond excessively at the cut off frequency than others and need 12 dB/octave filters, where other woofers have a natural roll-off at or near the crossover point, and work well with 6 dB/octave filters. We give you the ability to select this on two of our crossovers: the 2DF1800 two-way crossover and the 3DF400/1800 three-way crossover
SPEAKER ATTENUATION: Match the output level of the different speakers in your cabinet with the setting; it helps in creating a seamless transition from high to mid to low-especially useful for when driver sensitivities do not match
BRIGHTNESS ADJUSTMENTMany large format compression drivers naturally roll-off above 10 kHz. Our brightness adjustment offsets this phenomenon ,

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

PRV Audio crossovers are designed and constructed with special attention to both component quality and mechanical rigidity. Not only do our crossovers sound good, but they can also withstand the use and abuse associated with transportation and live performances.
Type: High
PassImpedance (Ohms): 8Crossover
Point (Hz): 5, 200Woofer
Impedance (Ohms): -RMS
Power (Watts): 100Program
Power (Watts): 200Selectable
Crossover Point (Hz): 6, 800HF
Attenuation (dB):
0/4Brightness: YesWoofer
Octave Sel (dB octave): -Midrange
Attenuation (dB): -Octave
(dB): 12
