PRV AUDIO 3-inch Full-Range Neodymium Speaker 3MR40-NDY-4 PRO Audio Midrange with 40 Watts Power Handling, 4 Ohm, and Versatile Performance for Car Audio Applications (Single)
- Compact Design: Fits seamlessly in tight spaces, perfect for portable speaker systems, line arrays, and car audio applications
- Powerful Sound: Delivers 40 watts of continuous power and 91 dB sensitivity for impressive output from a small cone
- Neodymium Motor: Enhances efficiency and reduces weight, ideal for space-constrained projects
- Versatile Frequency Response: Covers a wide range of 120 to 20,000 Hz for balanced, high-fidelity sound
- Easy Mounting: Features a low profile and flush mount design for simple and secure installation
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
PRV 3 Full-Range Neodymium Speaker 3MR40-NDY-4 PRO Audio Midrange 40 Watts / 4 OhmThe compact 3MR40NDY-4 is a 3 full range loudspeaker designed to perform in portable speaker systems, line arrays, or even car audio applications where weight and space limitations comes as a major factor in the project. With 91 dB efficiency and 40 watts power handling this driver is capable of remarkable output for its size.

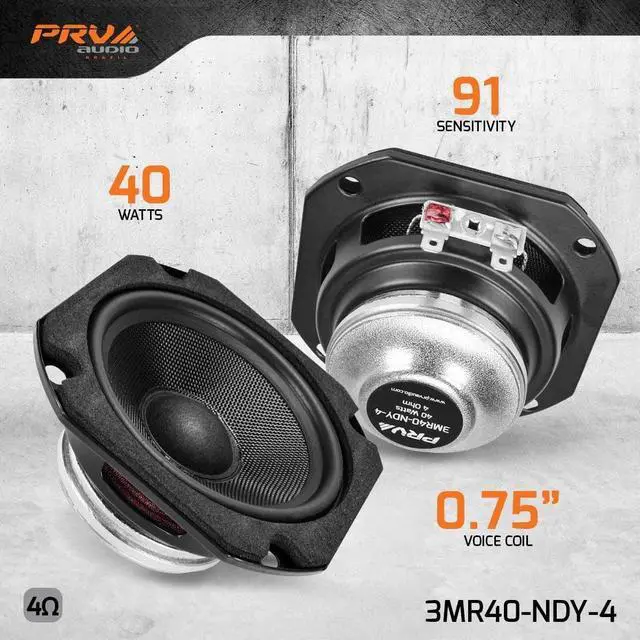

HIGHLIGHTS Nominal Impedance: 4 Ohm 40 Watts RMS Music Power Handling, with a 91 dB Sensitivity, capable of generating a lot sound with a small cone!
Voice Coil Diameter: 0.75 Strong neodymium motor, increases efficiency on a compact design. Very low profile loudspeaker, fit it in tight spots easily! Super well balanced frequency response from 120 to 20, 000Hz, making this a MR. Do-It-All with high fidelity sound as a midbass, midrange or full-range speaker. GENERAL SPECIFICATIONS
Nominal Diameter: 3
( 76.2 mm)Nominal impedance: 4 OhmNominal
Power Handling*: 20 WattsContinuous Program
Power (RMS) **: 40
WattsMax Peak Power***: 80
WattsSensitivity 2.00V at 1m: 91 dBRecommended Hi Pass Crossover For Full
Power Handling: 160Hz 12db
Per Octave CrossoverFrequency Response: 120 - 20, 000
HzVoice Coil Diameter: 0.75 (19 mm)
Voice Coil Wire: CCAW
Voice Coil Winding Depth: 4.8 mmFormer
Material: PolyimideMagnetic
Gap Depth: 4 mmFrame
Material: Stamped

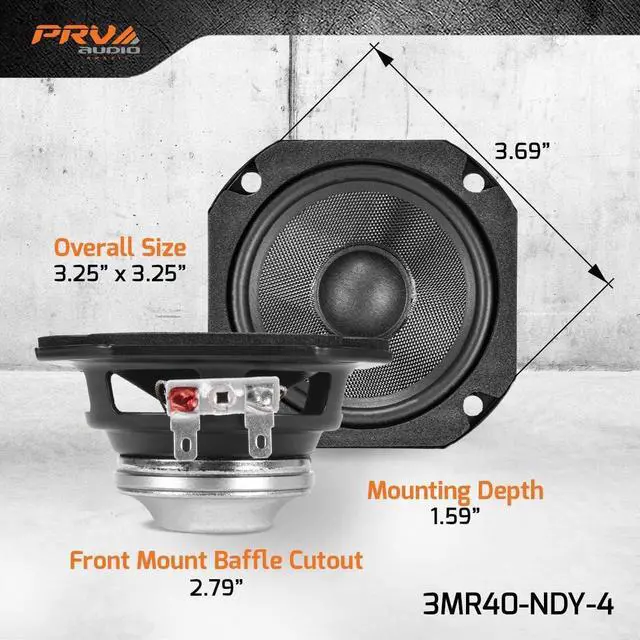

SteelOverall Diameter: 3.69 ( 93.7 mm)Front
Mount Baffle Cutout: 2.79 (71 mm)
Mounting Depth: 1.59 ( 40.5 mm)Overall
Depth: 1.83 ( 46.5 mm)Net
Weight: 0.51 Lb ( 0.23 kg)Shipping
Weight: 0.55 Lb ( 0.25 kg)Carton Dimensions W x L x
H: 4.09 x 3.54 x 2.0 (104 x 90 x 51 mm)
HIGHLIGHTS Nominal Impedance: 4 Ohm 40 Watts RMS Music Power Handling, with a 91 dB Sensitivity, capable of generating a lot sound with a small cone!
Voice Coil Diameter: 0.75 Strong neodymium motor, increases efficiency on a compact design. Very low profile loudspeaker, fit it in tight spots easily! Super well balanced frequency response from 120 to 20, 000Hz, making this a MR. Do-It-All with high fidelity sound as a midbass, midrange or full-range speaker. GENERAL SPECIFICATIONS
Nominal Diameter: 3
( 76.2 mm)Nominal impedance: 4 OhmNominal
Power Handling*: 20 WattsContinuous Program
Power (RMS) **: 40
WattsMax Peak Power***: 80
WattsSensitivity 2.00V at 1m: 91 dBRecommended Hi Pass Crossover For Full
Power Handling: 160Hz 12db
Per Octave CrossoverFrequency Response: 120 - 20, 000
HzVoice Coil Diameter: 0.75 (19 mm)
Voice Coil Wire: CCAW
Voice Coil Winding Depth: 4.8 mmFormer
Material: PolyimideMagnetic
Gap Depth: 4 mmFrame
Material: Stamped
SteelOverall Diameter: 3.69 ( 93.7 mm)Front
Mount Baffle Cutout: 2.79 (71 mm)
Mounting Depth: 1.59 ( 40.5 mm)Overall
Depth: 1.83 ( 46.5 mm)Net
Weight: 0.51 Lb ( 0.23 kg)Shipping
Weight: 0.55 Lb ( 0.25 kg)Carton Dimensions W x L x
H: 4.09 x 3.54 x 2.0 (104 x 90 x 51 mm)
