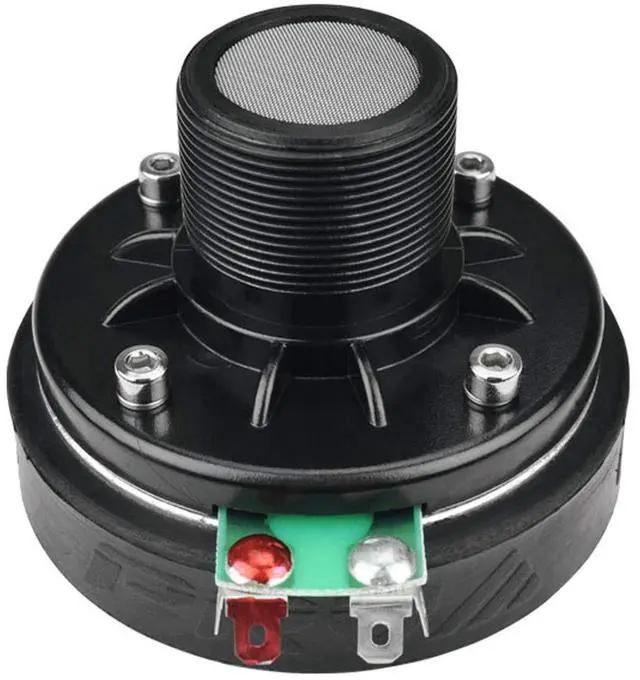

PRV AUDIO DT175Ph-S 1" Exit Screw-On Horn 75 Watts RMS 8 Ohms 1" VC Pro Audio 108dB Phenolic Compression Driver (Single)

The DT175Ph-S is a lightweight compression driver that weighs just 1.5 lbs and offers you an economical yet responsive driver through 20kHz. The Phenolic diaphragm offers a more subtle, smooth tone producing a less harsh sound in smaller environments yet packs the punch to fill most any size room. The DT175Ph-S has a standard 1 screw-on throat enabling you to quickly replace old worn-out or damaged drivers. The most affordable and compact 1 compression driver from PRV Audio.
Type: Screw-OnExit
Throat Diameter: 1
( 25.4 mm)Nominal impedance: 8 OhmsRated AES
Power Handling (RMS): 75
WattsProgram Power: 150
WattsSensitivity 2.83V at 1m: 108 dBRecommended

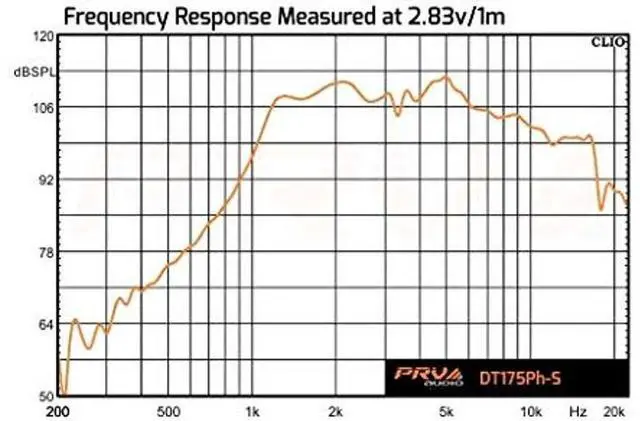

Hi-Pass Crossover**: 3000 Hz*****For Full Power Handling***12db Per Octave CrossoverFrequency Response at -10dB: 1, 300 19, 000
HzVoice Coil Diameter: 1 ( 25.4 mm)Voice
Coil Wire: CCAW
Voice Coil Former Material: KaptonDiaphragm
Material: Phenolic resinFlux
Density: 1.02
TMagnet Material: FerriteEXTRA INFO
Overall Diameter: 3.31 (84 mm)
Overall Depth: 2.60 (66 mm)
Mounting Thread: 1 3/8 18 TPI
Net Weight: 1.73 lbs ( 0.79 kg)Shipping
Weight: 1.85 lbs ( 0.84 kg)Carton Dimensions W x L x
H: 4.53 x 4.53 x 3.31 (115 x 115 x 84 mm)
