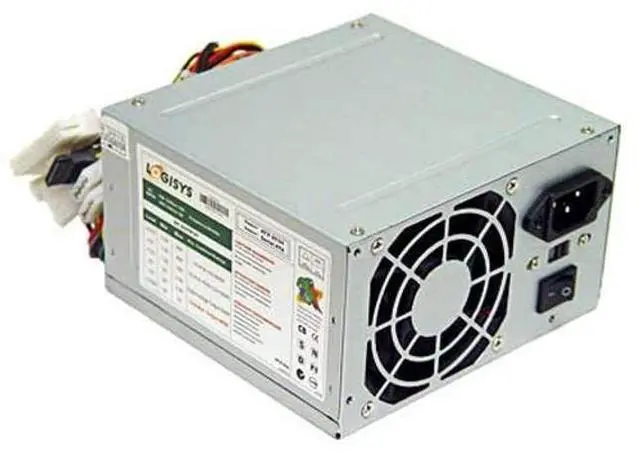

Logisys PS480D 20/24 pin Switching 480W Power Supply
- 1 x power 24 pin ATX with detachable 4 pin section
- 1 x power 4 pin ATX12V connector
- Features: Overvoltage protection, overpower protection
- Replaces many Dell/HP/Compaq Models
- Complies with FCC part 15J class B 115Vac Operation and CISPR22 230Vac Operation. Logisys PS480D 20/24 pin Switching 480W Power Supply
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
LOGISYS PS480D 480w Power Supply 480W ATX Power Supply ATX12V SATA Ready ATX PC Power Supply (20/24
Pin) Features: High Efficiency. Low Noise & Ripple. Over Voltage Protection. Short Circuit Protection.? Built-in EMI Filter. Insulation Resistance 100M min. Complies with FCC part 15J class B 115VAC operation and CISPR 22 230 VAC operation. Meet UL 1950. CSA 22.2 LEVEL 3 Requirement? 100% Burn-in test / Vibration test / Hi-pot test / Leakage current test. MTBF above 100.000 Hrsat 25
C Technical Information:

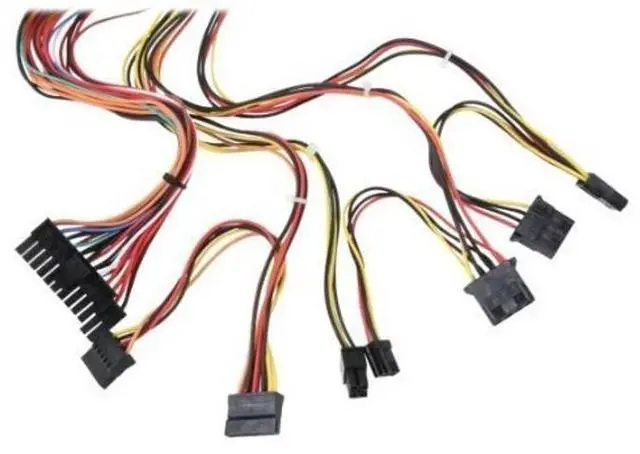

1x: 20Pin ATX mainboard connector w/ extra 4 Pin for 24
Pin ATX mainboard 4x: 4Pin Standard drive connectors for HDD and CD-rom
CD-RW 1x: 4Pin 3.5" FDD or
ZIP connectors 1x: 4Pin +12V
Power connector 1x: Serial
ATA connector Dimensions: 6" L x 5.5" W x 3.25" H
Pin) Features: High Efficiency. Low Noise & Ripple. Over Voltage Protection. Short Circuit Protection.? Built-in EMI Filter. Insulation Resistance 100M min. Complies with FCC part 15J class B 115VAC operation and CISPR 22 230 VAC operation. Meet UL 1950. CSA 22.2 LEVEL 3 Requirement? 100% Burn-in test / Vibration test / Hi-pot test / Leakage current test. MTBF above 100.000 Hrsat 25
C Technical Information:
1x: 20Pin ATX mainboard connector w/ extra 4 Pin for 24
Pin ATX mainboard 4x: 4Pin Standard drive connectors for HDD and CD-rom
CD-RW 1x: 4Pin 3.5" FDD or
ZIP connectors 1x: 4Pin +12V
Power connector 1x: Serial
ATA connector Dimensions: 6" L x 5.5" W x 3.25" H
