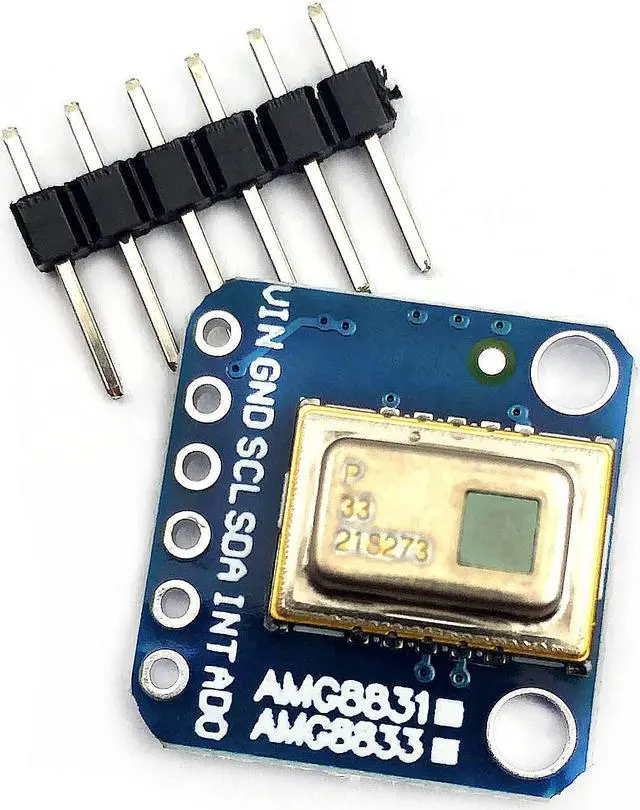

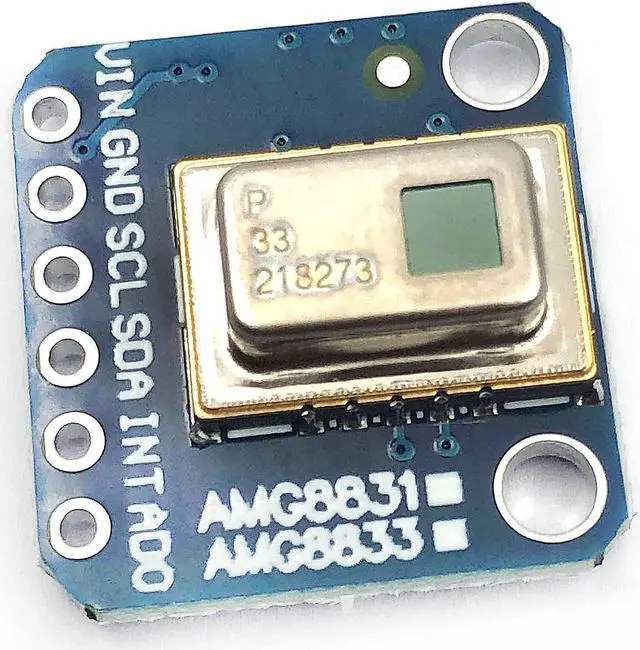

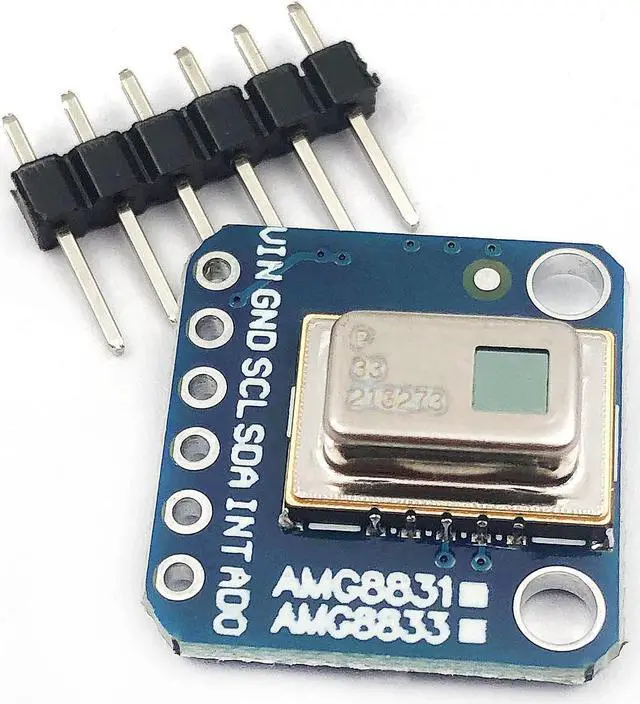

DEVMO AMG8833 88 IR Thermal Camera Sensor Breakout Imager Array Temperature Sensor Module Grid-Eye 8x8 Infrared Camera Module Array Board IIC I2C 3-5V Compatible with Ardu-ino Rasp-Berry Pi AMG-8833
- Electronics/Computers/Accessories/Computer Components/Single Board Computers
- AMG8833 of 8x8 thermal IR sensor, returns an array of 64 individual infrared temperature readings over I2C (default address 0x69, optional 0x68)
- The IR 8x8 sensor only supports I2C and has configurable interrupt pin that can be triggered when any single pixel is above or below your set threshold.
- AMG8833 IR 8*8 thermal imager array temperature sensor module Simply supply power and connect the digital communication pins (I2C) to your Ardu-ino, ESP8266, Rasp-berry Pi, etc.Perfect for creating your own human detector or mini thermal camera.
- AMG8833 compatible with both 5V and 3.3V power and logic.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:
Temperature range: 0~80degC (32~176degF)
This breakout PCB facilitates using the BME680 sensor, specially on solderless breadboards.
Sturdy ( 1.6 mm), blue PCB with 6-pin header on on side (VIN, GND, SDA, SCL, INT, and AD0)

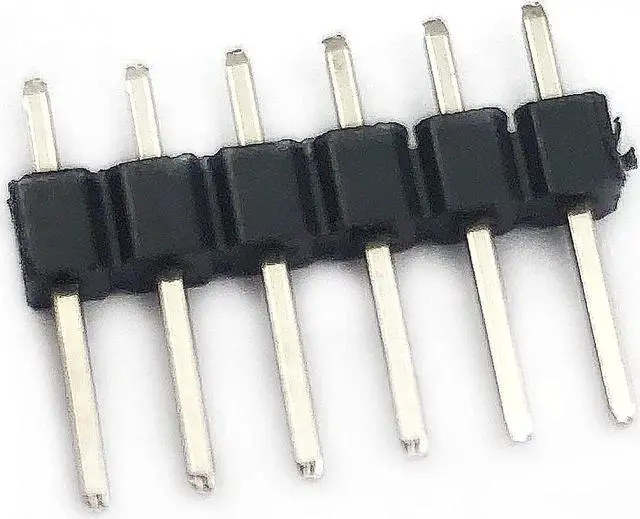

6-Pin header included (soldering needed)
Temperature range: 0~80degC (32~176degF)
This breakout PCB facilitates using the BME680 sensor, specially on solderless breadboards.
Sturdy ( 1.6 mm), blue PCB with 6-pin header on on side (VIN, GND, SDA, SCL, INT, and AD0)
6-Pin header included (soldering needed)
