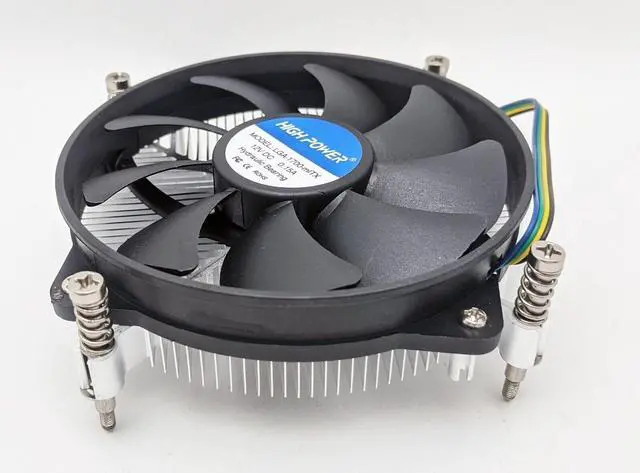

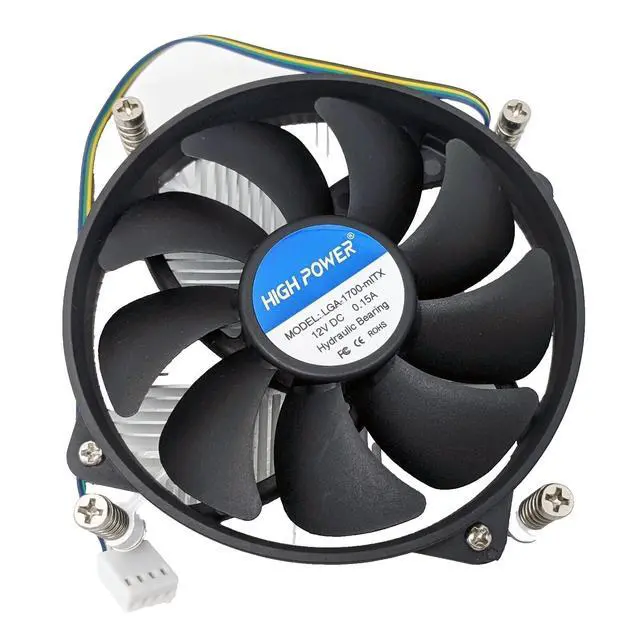

    HIGH POWER LGA-1700-mITX, Low Profile 28mm in Height Intel Socket LGA1700 CPU Cooler with Quiet 95mm Over-Sized Cooling Fan for 1U/2U/mini ITX/Micro ATX Desktop PC Systems

    Be the first to review this product...

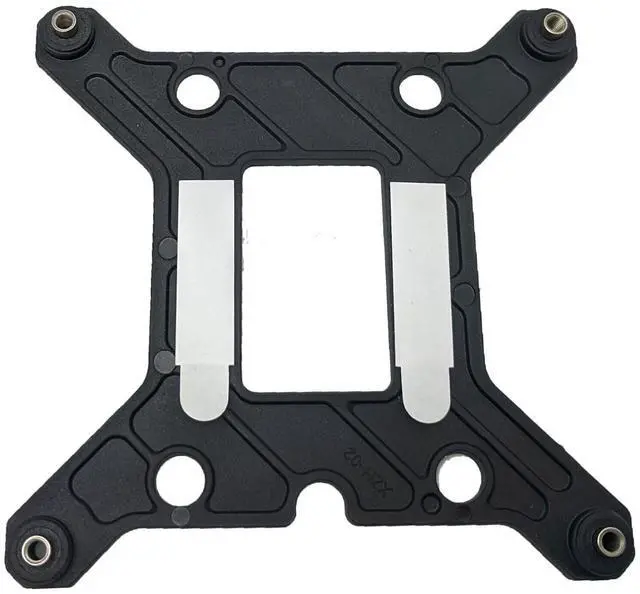

    • Designed to support Intels LGA1700 (LGA17xx family) platform. Screw-mount design provides easy & secured installation with the included back plate.

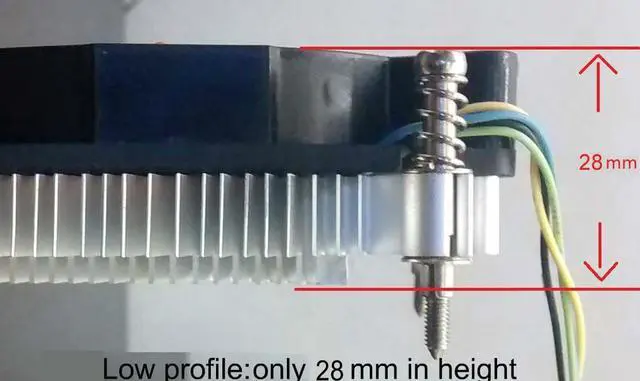

    • Super low profile to fit in any chassis: only 28mm (1.10 inches) from processor contact point to the top of the fan.
    • Automatic speed control (1100-3500 RPM) with 4pin PWM power connector, backward compatible with 3pin motherboard header

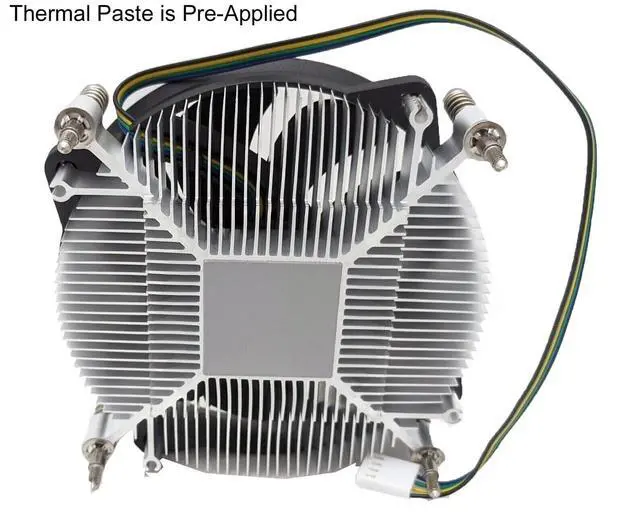

    • Kit Content: Quiet 95mm cooling fan and aluminum heat-sink assembly, motherboard back plate. Thermal paste is already pre-applied to the heatsink's chip contact area.
    • TDP: 75W, 12V DC @ 0.15A, Operating Temperature: -10 C ~ +70 C, Supports Intel LGA-1700 Core i7, i5, and i3 series processors
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    The stock fan that comes with Intel box processor would be too tall to fit in a 1U case or a compact mini ITX case (such as HIGH POWER mITX-0DB)HIGH POWER LGA-1700-mITX has a height clearance of only 28mm to fit in all mini ITX & 1U cases. Although it is lower profile than the stock Intel fan, its large 95mm fan delivers cooling capability that is not compromised. Set your BIOS to silent mode will enable the fan to start spinning at around 1000 RPM when it would be amazingly quiet. Noise level remains to be acceptably low during normal system operation.

    Heat
    Sink Material: AluminumSecure 4-screw mount vs less reliable snap-on mountFan
    Power Consumption: 12V DC @ 0.15A
    Fan Dimension: 95 x 95 x 15 mmFan
    Speed: 1000 - 3100 RPM 10%Fan
    Air flow: 14.1 - 42.5
    CFM 10%Fan Air Pressure: 0.84 - 2.52 mm H2O 10%Bearing
    Type: HydraulicFan
    Life Expectancy: 40, 000 hoursFan
    Noise Level: 18
    - 28.44 dBAConnector: 4-pin PWM (backward compatible with 3-pin)Net weight: 170g
