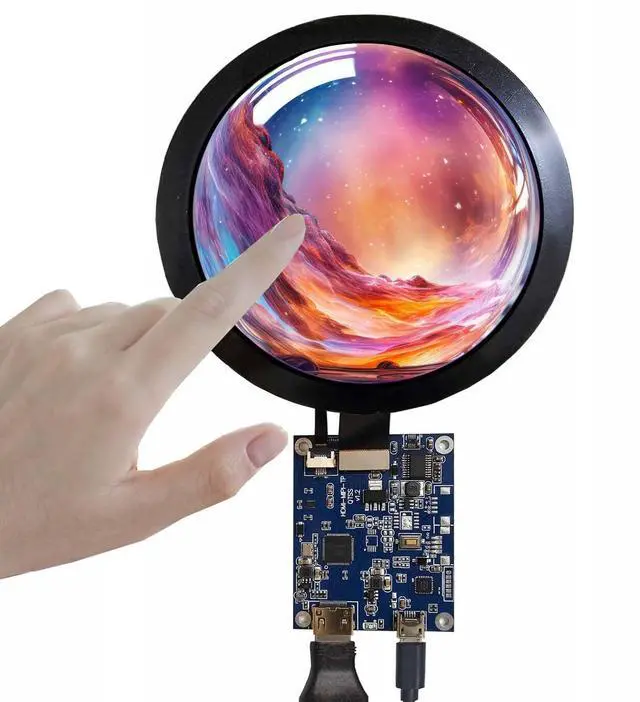

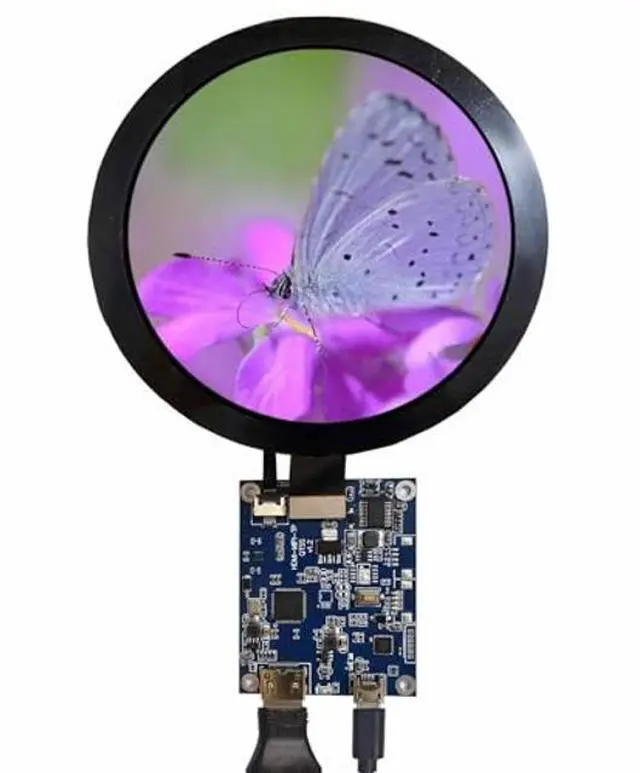

FanyiTek 5 inch 1080x1080 350nit IPS MIPI Round LCD Touch Screen and 50 pins Controller Board
- [(1080P IPS Round MIPI screen)] 5"1080x1080 display, IPS full viewing angle,outline size:136.53x132.58x2 (WxHxD)mm,display area:127.008x 127.008(WxH)mm,350nit high brightness ,WLED backlight .
- [(Controller board)] Video input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.
- [(Capacitive Touch sensor panel)] The design of touch panel makes the operation more convenient, No button damage issue for after long time use.
- [(Input Power)] 5Vdc More than 1A,Pls prepare it seperately .

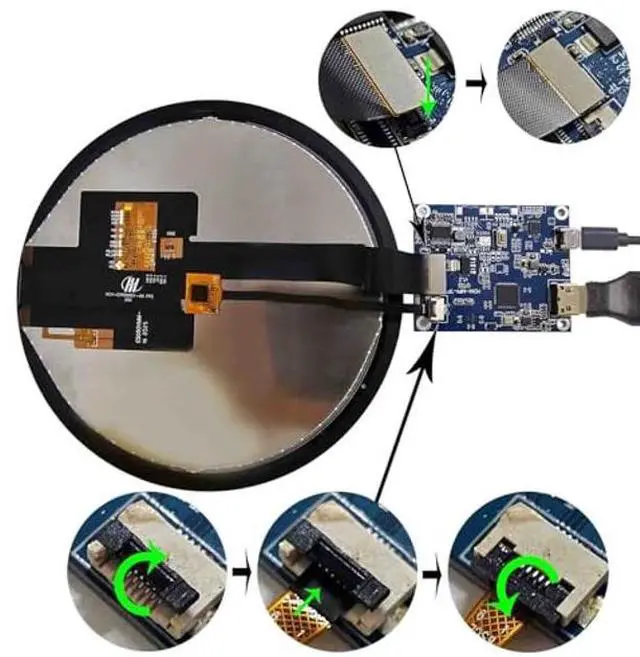

- [(Plug and play)] Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

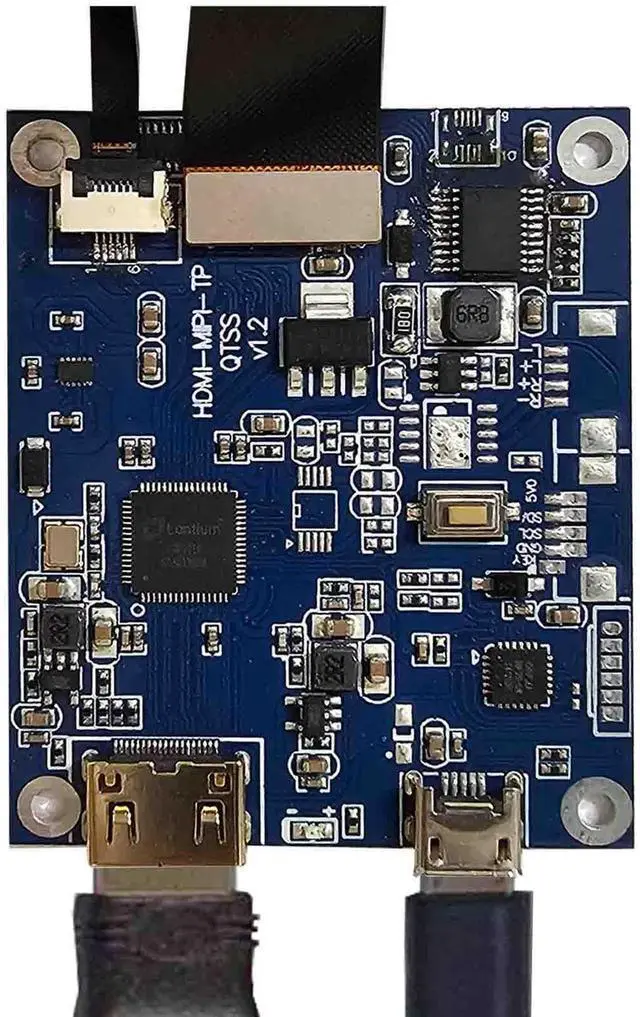

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
5" VS050YMM-N41 720X720 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 1080 (RGB) x1080
Outline Size 148.1 x 148.1 x4 (WxHxD) mm
Display Area 127.008 x 127.008 (WxH) mm
Brightness 350 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi (1 ch, 8-bit), 50 pins
Backlight WLED
Input Voltage 2.8V (Typ. )

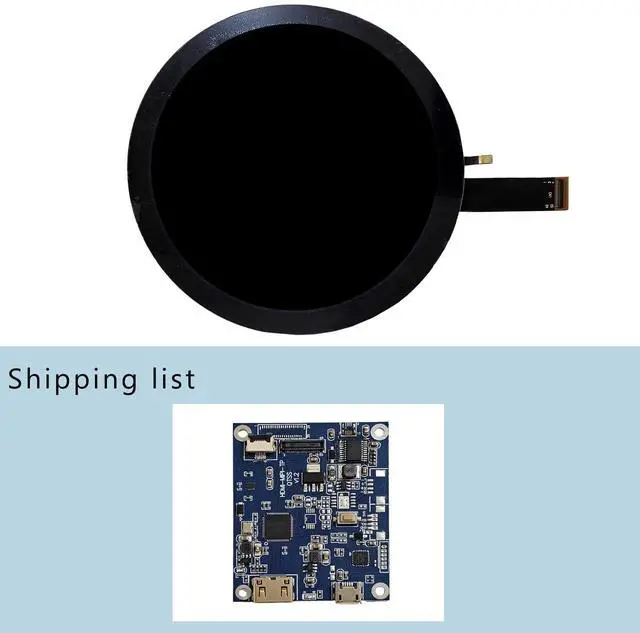

Packing list:
1x LCD Board
1x5inch VS050YMM 1080x1080 Capacitive Touch LCD Screen
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal
Board Size: 50mm x 35mm x 5mm
5" VS050YMM-N41 720X720 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 1080 (RGB) x1080
Outline Size 148.1 x 148.1 x4 (WxHxD) mm
Display Area 127.008 x 127.008 (WxH) mm
Brightness 350 cd/m2 (Typ. )
Contrast Ratio 300:1 (Typ. ) (TM)
Viewing Angle 85/85/85/85 (Typ. )(CR>=10) [Left / Right / Up / Down]
Signal Interface Mipi (1 ch, 8-bit), 50 pins
Backlight WLED
Input Voltage 2.8V (Typ. )
Packing list:
1x LCD Board
1x5inch VS050YMM 1080x1080 Capacitive Touch LCD Screen
