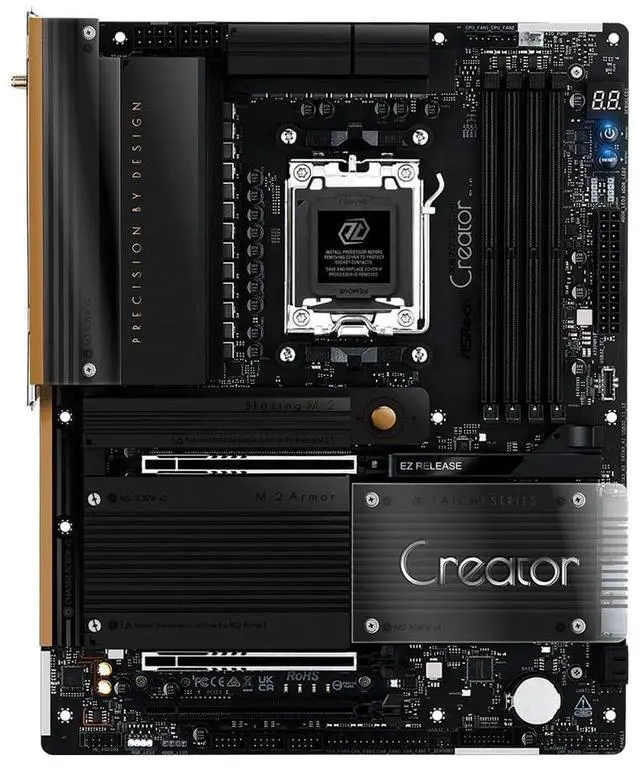

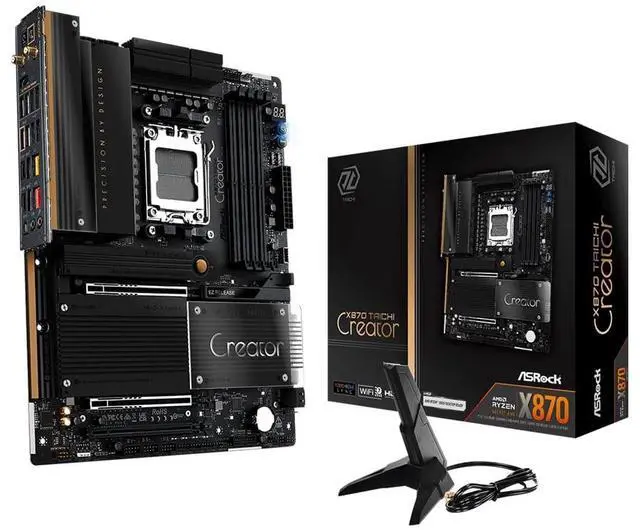

ASRock X870 Taichi Creator EATX, AMD AM5 Ryzen 9000-7000, DDR5 8200+ (OC), PCIe 5.0, Dual 10GbE/5GbE LAN, Dual USB4, Wi-Fi 7, 24+2+1 Phase 110A SPS
- System Compatibility Note: This EATX form factor (12.0" x 10.5") may not fit in standard mid-tower cases; please verify chassis specifications before purchase.
- Dedicated Support: Please contact us directly through for any product questions or assistance you may require.

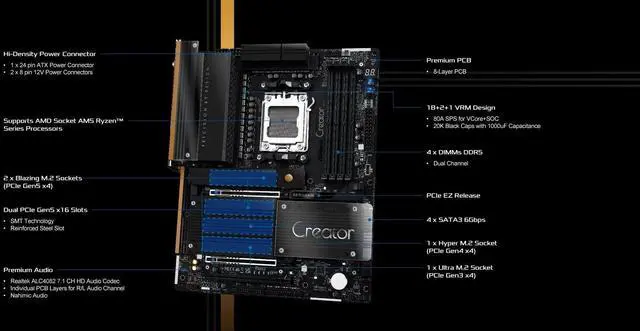

- Flagship AMD AM5 Platform: Supports AMD Socket AM5 for Ryzen 9000, 8000 and 7000 Series processors, delivering uncompromising performance for professional creators and enthusiasts.

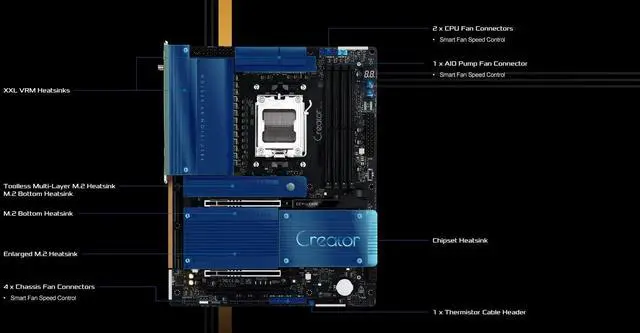

- Ultimate Power Delivery: 24+2+1 phase power design with 110A SPS for VCore+SOC and an enlarged heatsink armor, providing absolute stability for extreme overclocking and demanding workloads.
- High-Speed DDR5 Memory: 4 x DDR5 DIMM slots support dual-channel configurations and overclocked speeds up to 8200+ (OC), with support for both EXPO and XMP memory profiles.

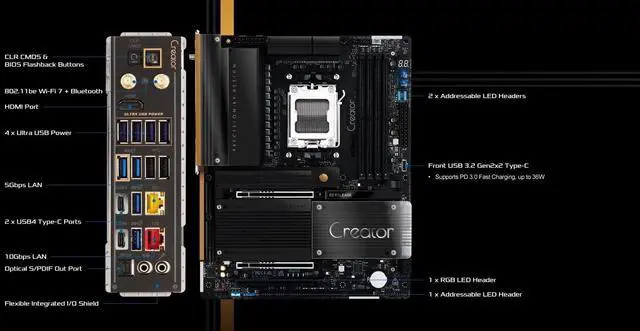

- Dual PCIe 5.0 & Dual USB4: Features dual PCIe 5.0 x16 slots (x8/x8) for next-gen multi-GPU setups and dual rear USB4 Type-C ports (40 Gb/s) with display output suppo
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Socket:
AM5Chipset: AMD
X870Form Factor: ATX
Memory
Memory
Maximum capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for
Overclocking (EXPO) memory modulesPhase: 18+2+1 Power Phase, 80A SPS for
VCore+SOCGPU functionality: Integrated AMD RDNATM graphics (Actual support may vary by CPU). - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 RyzenTM 9000, 8000 and 7000 processors with embedded graphics. * USB4 controller (for USB4_TC1 and USB4_TC2) will run at Gen4x2 with 8000 (Phoenix 2) series processors.
Graphics Output: 2 USB4 Type-C, 1 HDMI. [PCIE] 2 PCIe 5.0 x16 (x8/x8), 1 PCIe 3.0 x16[PCIE
X1] -OC: Yes[SLI] -Cross
Fire: Sound
Function: Realtek ALC4082 7.1 CH HD Audio Codec Nahimic AudioUSB 2.0: 8 USB 2.0 (2 Rear, 6 Front)USB 3.2 Gen1 (USB 3.0 ) 5Gb/s10 USB 3.2 Gen1 (6 Rear, 4 Front)USB 3.2 Gen2/Thunderbolt3 10Gb/s2 USB 3.2 Gen2 (Rear) USB 3.2 Gen2 x 2 Type-C 20Gb/s 1 USB 3.2 Gen2 x 2 Type-C (Front) Thunderbolt 4 (USB 4.0 )2 USB4 Type-C (Rear) [SATA3] 4M. 2 Slots1 Ultra M. 2 (PCIe Gen3x4), 1 Hyper M. 2 (PCIe Gen4x4) [M. 2 Slot Heatsink] 2 Blazing M. 2 (PCIe Gen5x4) M.
2 Wi-Fi-Wireless LAN: 802.11 be
Wi-Fi 7+BluetoothLAN: 10Gbps LAN, 5Gbps LAN. LED-
AM5Chipset: AMD
X870Form Factor: ATX
Memory
Specifications
1: 4 x DDR5 DIMM Slots.Memory
Specifications
2: Dual Channel DDR5 Memory Technology. - 4 x DDR5 DIMM Slots- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+ (OC) -Maximum capacity of system memory: 256GB- Supports Extreme Memory Profile (XMP) and EXTended Profiles for
Overclocking (EXPO) memory modulesPhase: 18+2+1 Power Phase, 80A SPS for
VCore+SOCGPU functionality: Integrated AMD RDNATM graphics (Actual support may vary by CPU). - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz** Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 RyzenTM 9000, 8000 and 7000 processors with embedded graphics. * USB4 controller (for USB4_TC1 and USB4_TC2) will run at Gen4x2 with 8000 (Phoenix 2) series processors.
Graphics Output: 2 USB4 Type-C, 1 HDMI. [PCIE] 2 PCIe 5.0 x16 (x8/x8), 1 PCIe 3.0 x16[PCIE
X1] -OC: Yes[SLI] -Cross
Fire: Sound
Function: Realtek ALC4082 7.1 CH HD Audio Codec Nahimic AudioUSB 2.0: 8 USB 2.0 (2 Rear, 6 Front)USB 3.2 Gen1 (USB 3.0 ) 5Gb/s10 USB 3.2 Gen1 (6 Rear, 4 Front)USB 3.2 Gen2/Thunderbolt3 10Gb/s2 USB 3.2 Gen2 (Rear) USB 3.2 Gen2 x 2 Type-C 20Gb/s 1 USB 3.2 Gen2 x 2 Type-C (Front) Thunderbolt 4 (USB 4.0 )2 USB4 Type-C (Rear) [SATA3] 4M. 2 Slots1 Ultra M. 2 (PCIe Gen3x4), 1 Hyper M. 2 (PCIe Gen4x4) [M. 2 Slot Heatsink] 2 Blazing M. 2 (PCIe Gen5x4) M.
2 Wi-Fi-Wireless LAN: 802.11 be
Wi-Fi 7+BluetoothLAN: 10Gbps LAN, 5Gbps LAN. LED-
