$935.99
Meet Your Seller
FEELWORLD 15.6 inch 4K Broadcast Director Monitor with IPS UHD 3840x2160 4x4K HDMI Quad Split Display 3G SDI VGA DVI for Professional Live Event Post Production Director Film Camera Field 4K156-9HSD
- FEELWORLD 4K156-9HSD is the Ultra HD broadcast monitor with 4x4K HDMI input, 3G-SDI input/ loop out for native display up to 2160p60. You get a professional broadcast monitor that supports the latest Ultra HD 3840x2160 resolutions, bring unbeatable image clarity in cinematic display.
- The main advanced features:The built in quad view, peaking filter, check field, image freeze, overscan, zoom, image flip, center markers, screen markers, pixel to pixel, color temperature and more.
- Professional Connections:4K156-9HSD features a professional broadcast SDI monitor that also includes loads of HDMI connections! With four HDMI and one 3G-SDI inputs, you can connect up to 5 cameras, computers or other sources and work in all SD and HD formats up to 1080p60!
- When you're creating a live program from multiple cameras, it's important to be able to see more video sources at the same time. 4K156-9HSD has four 4K HDMI inputs, one SDI input and loop put, DVI, VGA, supports quad view,
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
1. Wide view angle, 4K resolution (3840 x 2160), bright, colorful display 2. HDMIX4, 3G-SDI, DVI, VGA, Audio(L/R) inputs and 3G-SDI loop-through output
3.

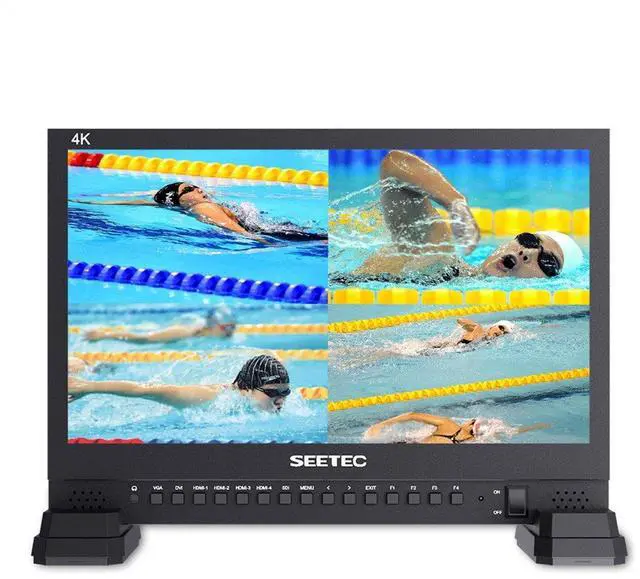

Special Features: * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) * Peaking Focus Assist * False Color * Image Flip (0deg, 90deg, 180deg, 270deg) * Check Field (Red, Green, Blue, Mono) * Image Freeze * Zoom * pixel to Pixel * Center Marker * Screen Marker (80%, 85%, 90%, 93%, 96%) * Line Color (Red, Green, Blue, White)
4. Monitoring via front panel 3.5 mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
Model: 4K156-9HSD
Screen Size: 15.6" IPS
Color Depth: 16.7M colors (8-bits)
Resolution: 3840x2160 pixels
Pixel Pitch: 0.0897 x 0.0897 mm
Aspect Ratio: 16:9
Brightness: 300cd/m2
Contrast Ratio: 800:1
Backlight: LED

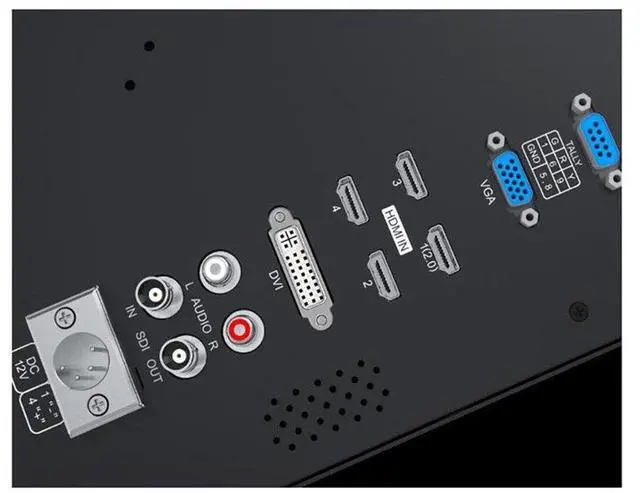

Viewing Angle: 85deg/85deg(L/R) 85deg/85deg(U/D) Input 4 X HDMI HDMI (HDMI 2.0 x1 support 4K 60HZ; HDMI 1.4 x3 support 4K 30HZ) 1 X BNC SDI 1 X DVI DVI 1 X VGA VGA 2 X RCA Audio(L/R) 1 X DB-9 Tally Output 1 X BNC SDI Audio Audio Out Headphone, Speaker SDI Support Format 480i/576i 720p(60/ 59.94 /50/30/29/25/24/ 23.98 ) 1080i(60/ 59.94 /50) 1080p(60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF) HDMI
Support Format HDMI 2.0: 4K UHD 2160p ( 23.98 /24/25/ 29.97 /30/50/ 59.94 /60)
HDMI 1.4: 4K UHD 2160p ( 23.98 /24/25/ 29.97 /30) 480i/576i/480p/576p 1080i (60/ 59.94 /50) 720p (60/ 59.94 /50/30/29/25/24/ 23.98 ) 1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF) General
Input Voltage: DC12~24V (XLR)
Power Consumption: <=18W
Working Temperature: -10degC~50degC
Storage Temperature: -20degC~60degC
Unit Size: (mm) 372Lx262Hx 28.5D (mm) (Without Bracket)
Unit Weight: 2.03 kg (Without Bracket)
3.
Special Features: * Quad Split Display (1P, 2P LR, 2P TB, 2P PIP, 4P) * Peaking Focus Assist * False Color * Image Flip (0deg, 90deg, 180deg, 270deg) * Check Field (Red, Green, Blue, Mono) * Image Freeze * Zoom * pixel to Pixel * Center Marker * Screen Marker (80%, 85%, 90%, 93%, 96%) * Line Color (Red, Green, Blue, White)
4. Monitoring via front panel 3.5 mm stereo headphone jack and built-in speaker
5. Built-in LED tally indicators (Red, Green, Yellow)
Model: 4K156-9HSD
Screen Size: 15.6" IPS
Color Depth: 16.7M colors (8-bits)
Resolution: 3840x2160 pixels
Pixel Pitch: 0.0897 x 0.0897 mm
Aspect Ratio: 16:9
Brightness: 300cd/m2
Contrast Ratio: 800:1
Backlight: LED
Viewing Angle: 85deg/85deg(L/R) 85deg/85deg(U/D) Input 4 X HDMI HDMI (HDMI 2.0 x1 support 4K 60HZ; HDMI 1.4 x3 support 4K 30HZ) 1 X BNC SDI 1 X DVI DVI 1 X VGA VGA 2 X RCA Audio(L/R) 1 X DB-9 Tally Output 1 X BNC SDI Audio Audio Out Headphone, Speaker SDI Support Format 480i/576i 720p(60/ 59.94 /50/30/29/25/24/ 23.98 ) 1080i(60/ 59.94 /50) 1080p(60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF) HDMI
Support Format HDMI 2.0: 4K UHD 2160p ( 23.98 /24/25/ 29.97 /30/50/ 59.94 /60)
HDMI 1.4: 4K UHD 2160p ( 23.98 /24/25/ 29.97 /30) 480i/576i/480p/576p 1080i (60/ 59.94 /50) 720p (60/ 59.94 /50/30/29/25/24/ 23.98 ) 1080p (60/ 59.94 /50/30/ 29.97 /25/24/24sF/ 23.98 / 23.98 sF) General
Input Voltage: DC12~24V (XLR)
Power Consumption: <=18W
Working Temperature: -10degC~50degC
Storage Temperature: -20degC~60degC
Unit Size: (mm) 372Lx262Hx 28.5D (mm) (Without Bracket)
Unit Weight: 2.03 kg (Without Bracket)
