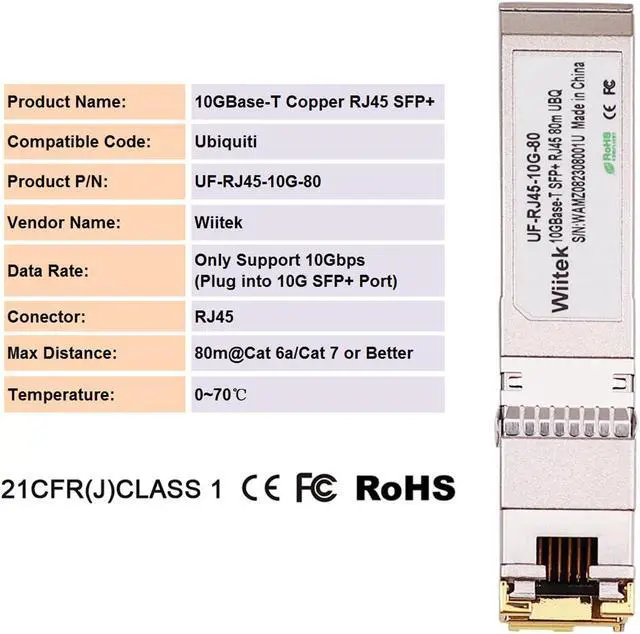

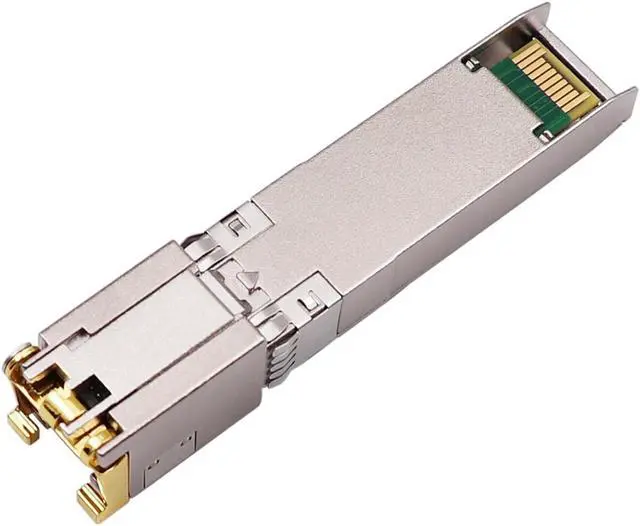

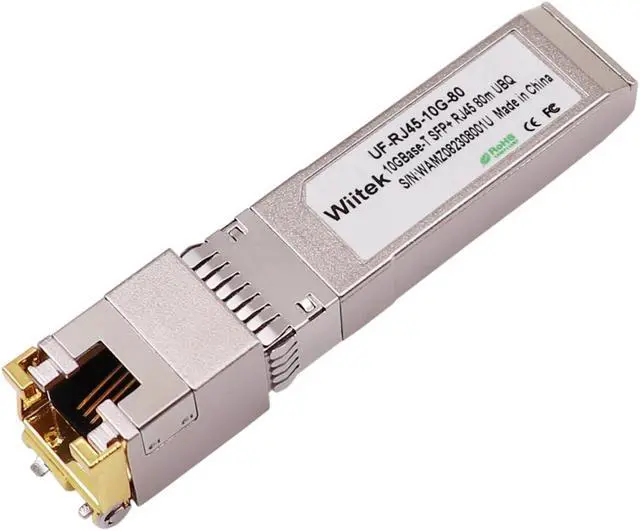

Wiitek 80 Meters, 10G SFP+ to RJ45 Modules, 2.5G/5G/10GBase-T Ethernet Copper RJ45 to SFP+ Transceiver Compatible for Ubiquiti UF-RJ45-10G, Plugin 10Gb SFP+ Port Switch/Router
- COMPATIBILITY:This 10G Copper SFP+ Copper RJ45 Ethernet Adapter Transceiver is 100% compatible for Ubiquiti UF-RJ45-10G, connecting 10g ethernet Switch, 10G SFP+ network interface card (NICs) , 10G SFP+ media converter etc;
- CABLE DISTANCE:10GBase-T SFP+ RJ45 Copper Module supports Links up to 80m using Cat 6a/7 or Better Cable , need to plug into 10G SFP+ Ports;
- Low Consumption: Built-in Broadcom chip, Max. Power Consumption 2.5W;
- PROTOCOLS: 10Gb RJ45 SFP Compatible SFF-8431 MSA , IEEE 802.3az;
- Each Module is individually 100% tested on the 10G SFP+ Switch Connecting with RJ45 networking cables before shipping;
- HOT SWAPPABLE:Hot-swappable transceivers that plugs into an 10Gb SFP+ port, plug and play, no need to power down if installing or replacing;
- This 10G SFP+ transceiver is ideal for enterprise networking for LAN applications and different other networking places using copper connections;
- SUPPORT: 30 Days Free-returned, 1-year Product Quality Assuranc
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ubiquiti UF-RJ45-10G Compatible 10GBase-T SFP+ 10 Gigabit RJ45 Copper SFP Transceiver 80-Meter
Features

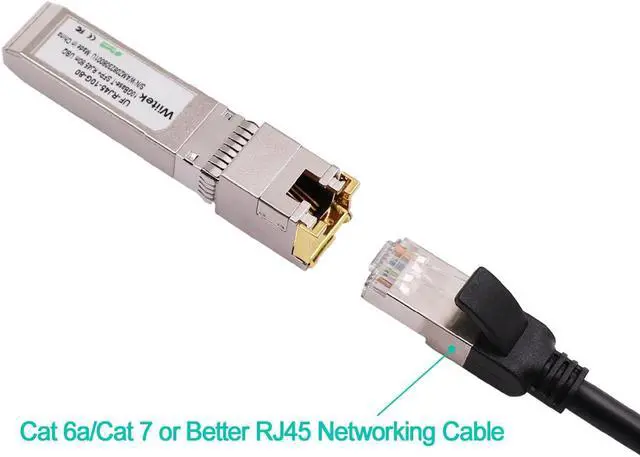

Supports Links up to 80m using Cat 6a/7 or Better Cable
SFF-8431 MSA Compliant
IEEE 802.3 az and 802.3 an Compliant
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+ 3.3V single power supply
Built-in Broadcom chip, Max. Power Consumption 2.5W
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C
Applications
10 Gigabit Ethernet over Cat 6A/Cat 7 or Better cable
Features
Supports Links up to 80m using Cat 6a/7 or Better Cable
SFF-8431 MSA Compliant
IEEE 802.3 az and 802.3 an Compliant
Hot-pluggable SFP+ footprint
TX Disable and RX Los function
Fully metallic enclosure for Low EMI Emissions
+ 3.3V single power supply
Built-in Broadcom chip, Max. Power Consumption 2.5W
Compact RJ-45 connector assembly
Access to physical layer IC via 2-wire serial bus
MDI/MDIX Crossover
Multiple Loopback Modes for Testing and Troubleshooting
Built-in Cable Monitoring and Link Diagnostic
Unshielded and Shielded cable support
Operating case temperature range of 0°C to +70°C
Applications
10 Gigabit Ethernet over Cat 6A/Cat 7 or Better cable
